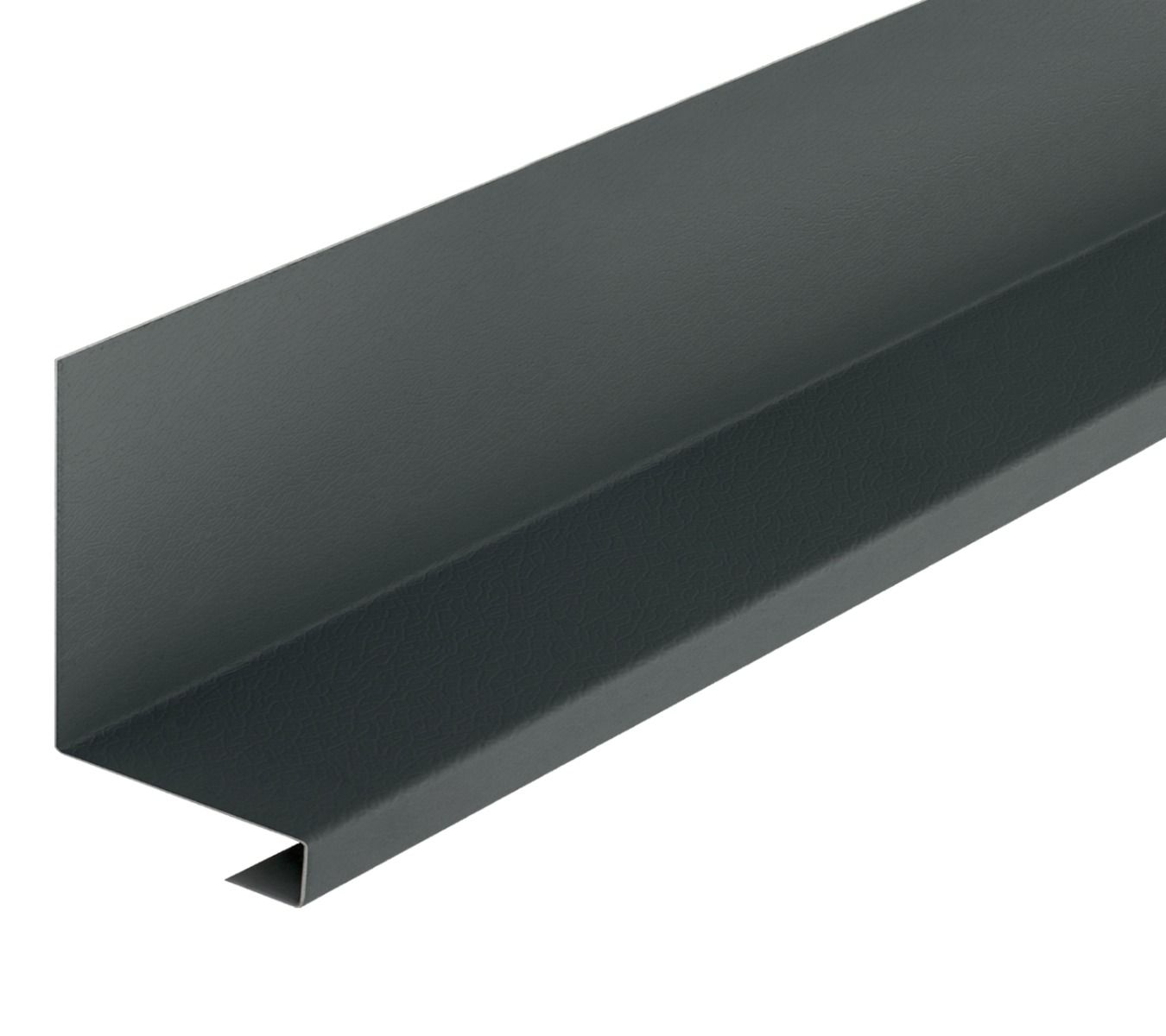

Drip Tray Flashings in PVC Plastisol Finish - 3m
Protect doors, windows and wall openings from rainwater ingress with this PVC plastisol‑coated drip tray flashing. Designed to direct water clear of the building face, it installs neatly above openings to prevent drips and staining. Supplied in 3m lengths with a durable leather-grain PVC plastisol finish in colours such as anthracite and merlin grey, it provides a clean, long-lasting detail.
About Our Drip Tray Flashings in PVC Plastisol Finish
If you need to stop rainwater tracking back towards your walls, a drip tray flashing gives you a simple and effective way to guide water away from vulnerable openings. Installed directly above doors, windows or below cladding, it forms a projecting drip edge that helps prevent leaks, staining, and moisture entering the building envelope.
Manufactured from high-quality steel with a 200 micron thick PVC plastisol leather-grain coating, this flashing offers excellent durability, weather resistance and colour consistency when coordinated with your PVC plastisol sheets and trims..
Available in a range of PVC plastisol colours, such as goosewing grey and olive green, this flashing is designed to work alongside our 13/3 corrugated, 32/1000 box profile and 34/1000 box profile roof sheets.
Custom sizes can be manufactured when you provide your specific measurements, using our custom flashings service.
Benefits of PVC Plastisol Drip Tray Flashings
- Directs rainwater safely away from wall openings
- Compatible with various metal sheet profiles
- Leather grain PVC plastisol finish offers long-term durability
- Colour matched to PVC plastisol sheet accessories
- Supplied in 3m lengths with custom sizes available
Please note: that we advise wearing suitable safety clothing and safety gloves when handling any flashings or roof sheets because of the edges being extremely sharp alongside the weight of the large steel product.
Specifications
- Material: Steel
- Finish: PVC plastisol (leather-grain)
- Dimensions: 100mm x 40mm x 20mm x 10mm
- Length: 3m
- Compatibility: 13/3 corrugated, 32/1000 box profile, 34/1000 box profile
Fixing Guidance
Install drip tray flashings directly above the opening by stitching them to the sheet or substrate behind using suitable fixings. Ensure the projecting lip sits forward to guide water cleanly away from the wall face.
To help keep your hands protected from sharp edges, we stock Cut Level 5 safety gloves that are ideal for handling roof sheets and flashings.
Remember to remove the protective film after installation, or sooner if stored in sunlight or wet weather, to prevent it from bonding with the coating.
For helpful guidance on overlaps, recommended fixing methods and installation tips, please visit our Help & Advice page, where you will find detailed information and useful step-by-step installation guides before starting your project.
Looking for an alternative?
For a polyester-painted drip tray, see our drip tray flashing in polyester paint finish.
For bespoke flashings, see our custom flashings.
Or browse our roofing department for flashings and more.
For large commercial projects, high volumes or specialist requirements, our team is happy to help, so please call 01837 659901 for expert advice.
