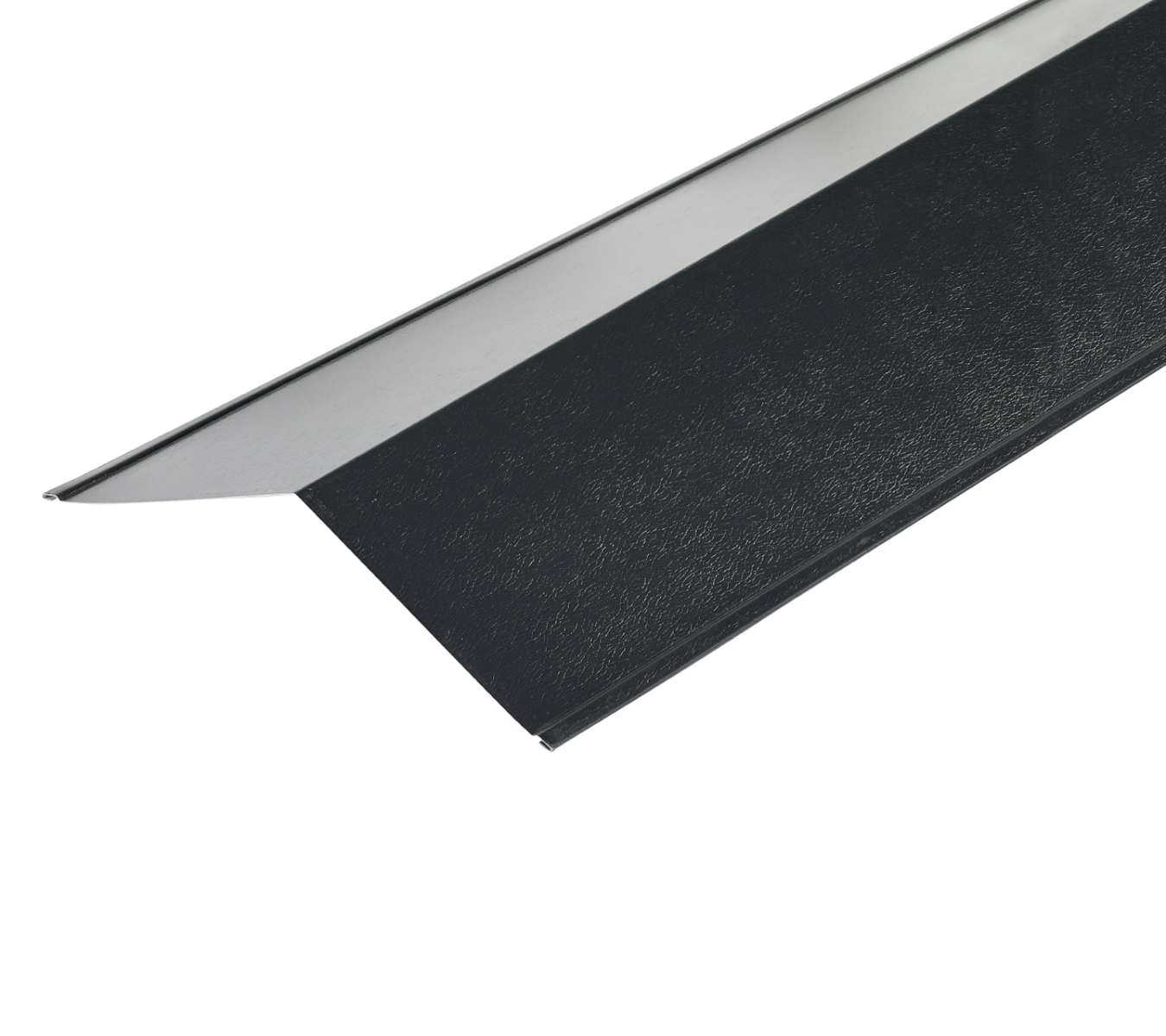

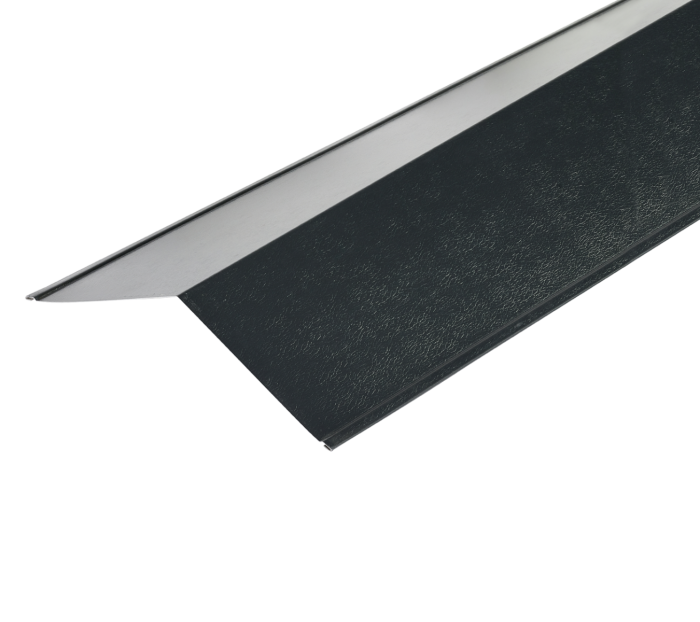

130º Ridge Flashings in PVC Plastisol Finish in 3m 200mm x 200mm
Concerned about scuffs during install or bad weather? The leather‑grain PVC plastisol finish on this 200mm x 200mm ridge flashing provides a tougher surface at the apex, with a 130° fold, 10–15° flex, 3m length and safety welt for strength. Designed to match our 13/3 corrugated, 32/1000 box profile and 34/1000 box profile plastisol ranges.
About Our 200mm x 200mm Ridge Flashings in PVC Plastisol Finish
Need a ridge flashing that stands up to handling as well as the weather? This 200mm x 200mm PVC plastisol‑coated ridge closes the apex where both roof slopes meet, delivering broader coverage and a clean, weathertight joint. Folded to a 130° internal angle with 10–15° of flex, it aligns neatly to your pitch, while the safety welt stiffens the edge for a stronger, cleaner ridge line.
The leather‑grain PVC plastisol finish colour‑matches our 13/3 corrugated, 32/1000 box profile and 34/1000 box profile plastisol sheet ranges, and each piece is supplied in 3m lengths, with custom sizes available on request.
Our PVC plastisol coated flashings are available in a wide range of colours, including slate blue, goosewing grey, vandyke brown, and black.
Benefits of 200mm x 200mm PVC Plastisol Ridge Flashings
- Wider 200mm profile for increased coverage
- Flexes 10–15° to suit roof pitch
- Matches PVC plastisol sheet accessories
- Safety welt reinforces strength and edge rigidity
- Supplied in 3m lengths; custom sizing available
Specifications
- Material: Galvanised steel
- Finish: PVC plastisol (leather‑grain)
- Size: 200mm x 200mm x 3m
- Coverage: 195mm x 195mm (due to welt)
- Internal angle: 130° (flexes 10–15° each way)
- Compatibility: 13/3 corrugated, 32/1000 box profile, 34/1000 box profile
Please note: that nominal sizes refer to overall flashing dimensions. 200mm × 200mm flashings provide an actual coverage of approximately 195mm × 195mm, and 150mm × 150mm flashings provide an actual coverage of approximately 146mm × 146mm. Welt detail may vary depending on manufacture.
Fixing Guidance
Fix the ridge flashing along the apex by stitching it to the sheet below with st22 stitching screws. Allow a minimum 200mm overlap where sections meet to achieve a secure, weathertight seal. Ensure the safety welt sits correctly and remains undamaged during fixing.
For a step‑by‑step walkthrough, recommended fasteners and best‑practice detailing, please refer to our installation guides before you begin.
To support safe installation, we supply Cut Level 5 safety gloves that provide excellent cut resistance when working with steel flashings and sheet materials.
Looking for an alternative?
For a 150mm x 150mm ridge flashing, see our ridge flashing in PVC plastisol.
For a bespoke flashing, see our custom flashings.
Or browse our roofing department for flashings and more.
For large commercial projects, high volumes or specialist requirements, our team is happy to help. Call us on 01837 659901 for expert advice. For more information, visit our Contact Us page.
