34/1000 Box Profile 0.7 PVC Plastisol Coated Roof Sheet

From £11.70
From: £11.70



In stock

Please note images may vary from actual item supplied due to lighting variations and camera angles

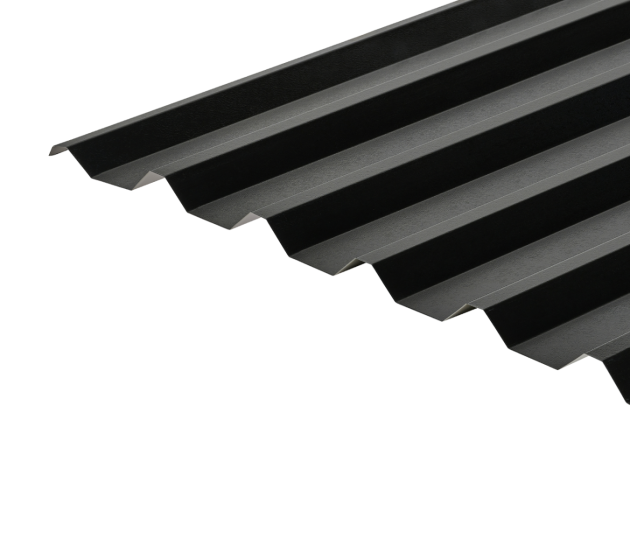

34/1000 trapezoidal box profile roofing sheets are our most popular and strongest profile sheet, with each single skin profile sheet having 7 strong 166mm profiles across its width. With a profile height of 34mm and coverage of 1,000mm when installed, these box roofing sheets give you a simple yet strong way to cover your roof.

Box profile roofing sheets are formed from 1250mm wide steel strips which will give a secure weatherproof lap from profile sheet to profile sheet. Available in 0.5 or 0.7 mm thickness, these galvanised box profile steel roofing sheets are coated with PVC Plastisol, giving them a hard-wearing, low maintenance finish.

Please note images may vary from actual item supplied due to lighting variations and camera angles


Need help? Call Us on: 01837 659901

Monday to Friday 8am to 5pm, and Saturday 8am to 12.30pm.

Box Profile Roofing Sheets – Measurements:

  • External Face: Profiled 34/1000, 34mm profile height, 166mm pitch centres
  • Standard Width: 1000mm when lapped
  • Max Length: 9m in 0.7mm sheet thickness
  • Minimum – 4 degrees
  • Gauge Thickness: 0.7mm
  • Weight: 0.7mm thickness – 6.9kg/m2 approximately

Uses of Box Profile 34/1000 Roofing Sheets:

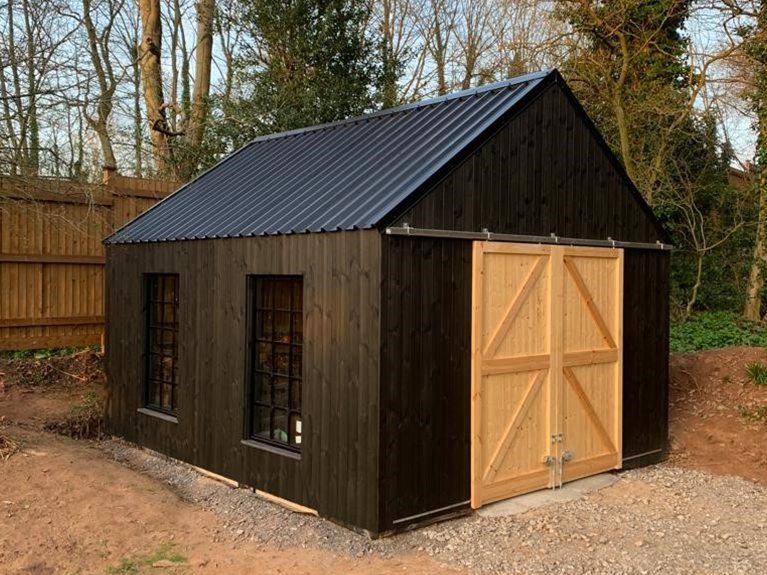

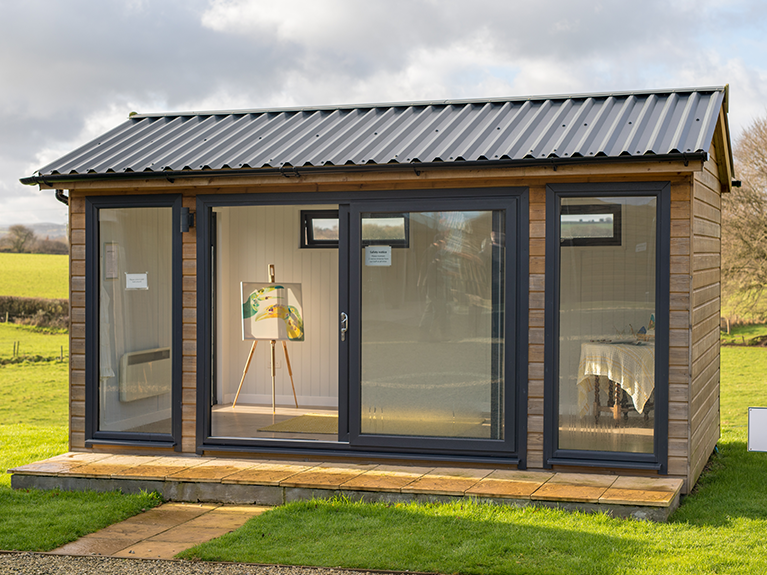

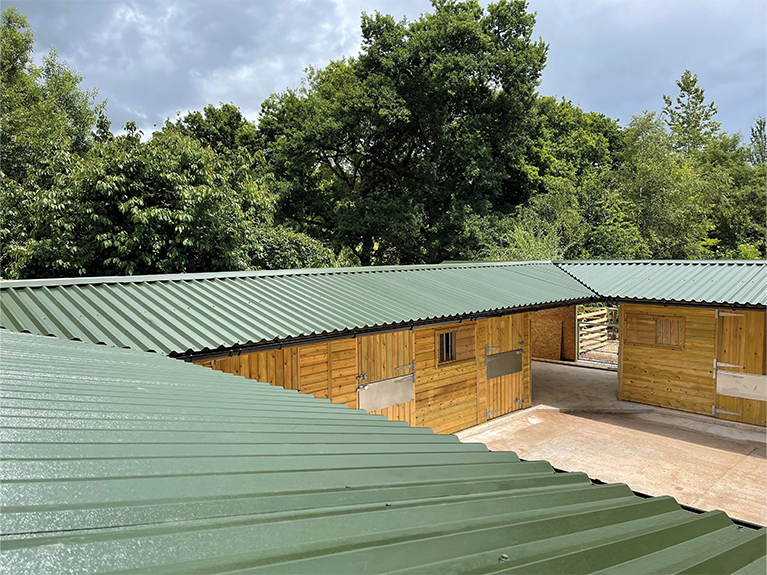

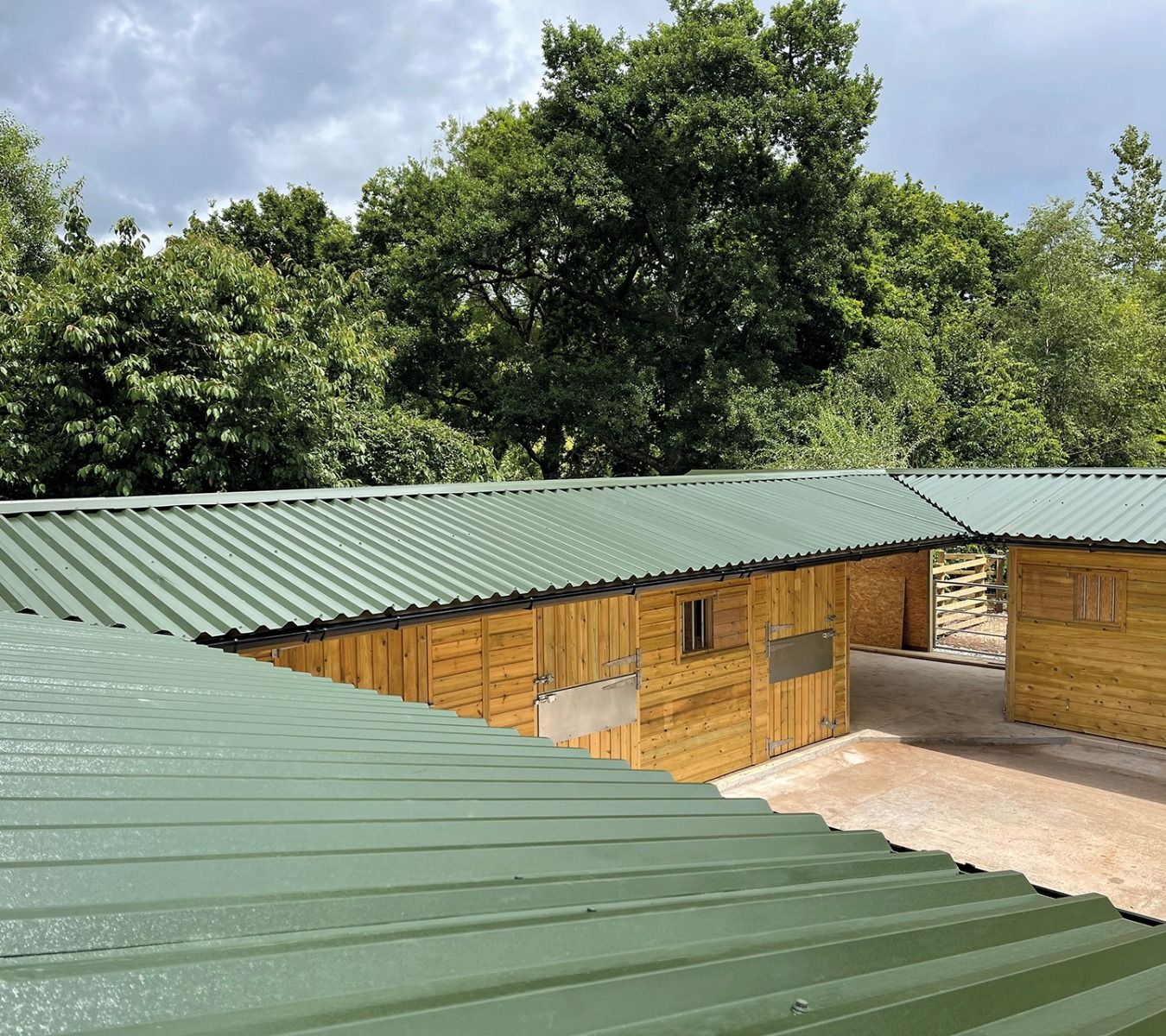

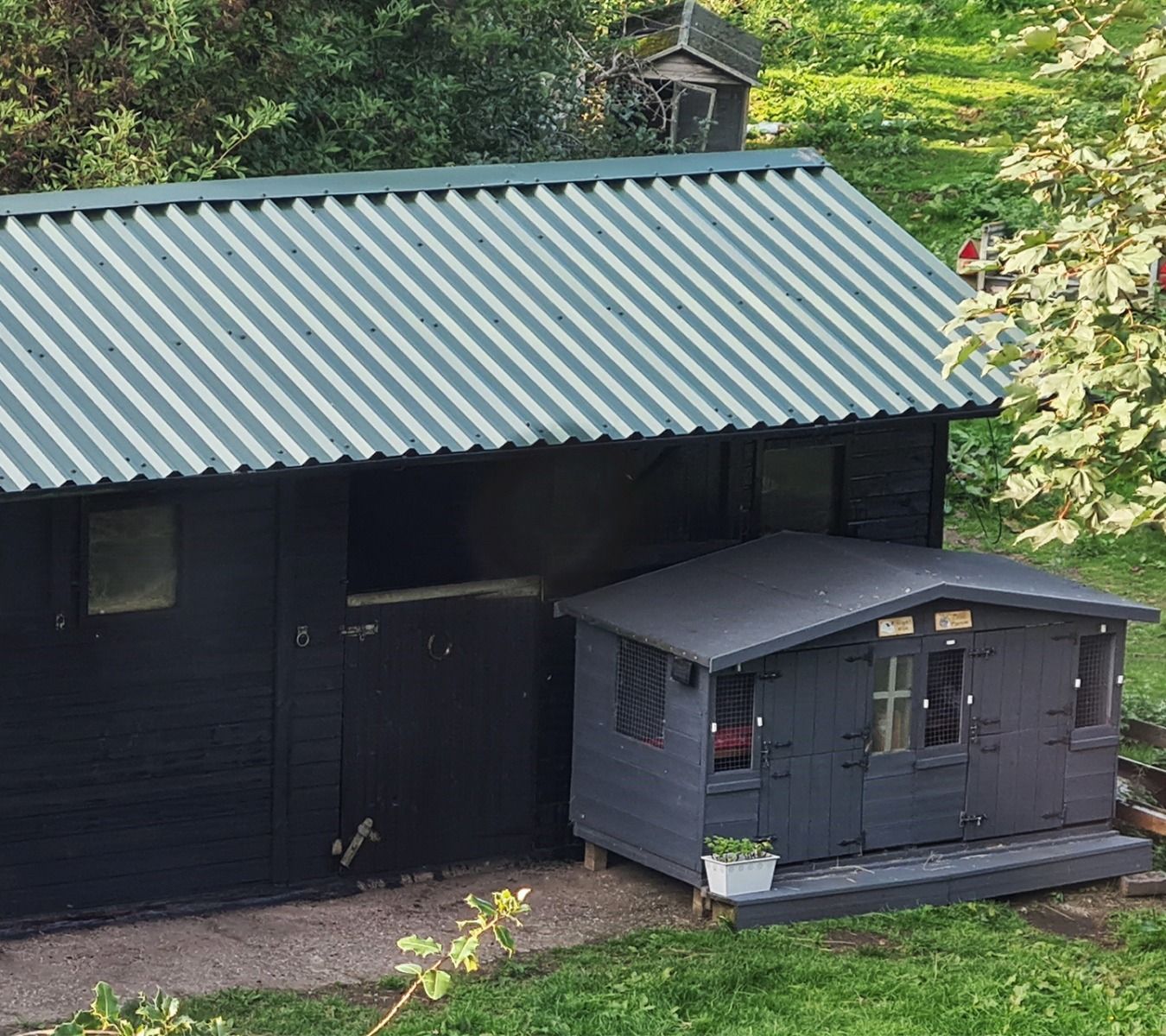

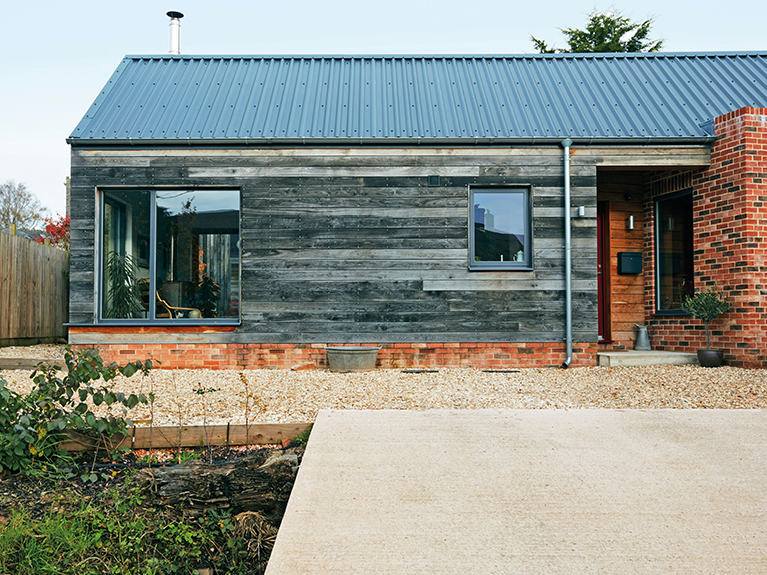

Most commonly seen on industrial, agricultural and commercial buildings, box profile sheets can be used for domestic buildings where required. Available as a single skin profile sheet, it can be used to build up an insulated system, to over clad an existing roof or on its own to provide a solid weatherproof covering on any building. Suitable for roof application of 4 degrees or higher, consider purchasing our profile roofing sheets.

Benefits of Box Profile 34/1000 Roofing Sheets:

Fast and easy to fit, these lightweight box profile steel roofing sheets are an economical way to cover your building. Available in a traditional range of colours and independently tested to current CE EN 14782 requirements, our box profile sheets will provide you with a long-lasting and low maintenance solution for years to come. Contact us for further information.

Please Note – Extra care should always be taken when handling metal sheets and flashings we advise using the correct type of Glove when handling or moving metal sheets and flashings. Gloves can be purchased on our website.

Application: Wall or Roof
External Finish: PVC Plastisol
Internal Finish: Light grey Polyester
External Face: Profiled 34/1000, 34mm profile height, 166mm pitch centres
Standard Width: 1000mm when lapped
Max Length: 9m in 0.7mm sheet thickness
Minimum Pitch: 4 degrees
Gauge Thickness: 0.7mm
Weight: 0.7mm sheet thickness – 6.22kg/m2

When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fixings in lower part of profile.

Rooflights, fixings, trims and flashings complete the system, offering robust, cost effective sheet cladding.


Permissable Loads:

Permissable downward (imposed) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.49 2.52 1.91 1.37 0.99 - - - - -
double 2.58 2 1.6 1.3 1.09 0.92 0.79 - - -
multi 3.15 2.45 1.96 1.6 1.34 1.13 0.86 - - -
0.70mm 6.22 single 5.77 4.17 2.74 1.9 1.37 1.02 0.78 - - -
double 4.12 3.18 2.53 2.06 1.72 1.45 1.2 0.94 0.75 -
multi 5.04 3.9 3.11 2.54 2.11 1.57 1.2 0.94 0.75 -


Permissable wind uplifts (negative) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.62 2.62 1.98 1.52 1.1 0.82 - - - -
double 2.52 1.95 1.56 1.27 1.06 0.89 0.77 - - -
multi 3.09 2.39 1.91 1.56 1.3 1.1 0.94 0.82 - -
0.70mm 6.22 single 5.58 4.03 3.05 2.14 1.54 1.15 0.88 - - -
double 4.2 3.24 2.59 2.11 1.76 1.48 1.27 1.1 0.96 0.8
multi 5.13 3.98 3.18 2.6 2.16 1.83 1.57 1.25 0.99 0.8
