Choice Of Coatings
The coated steel coils we profile into sheeting and flashings are produced by leading suppliers, giving us control over quality and traceability of the material we use.

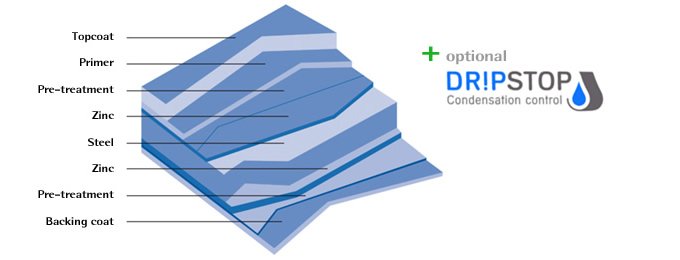

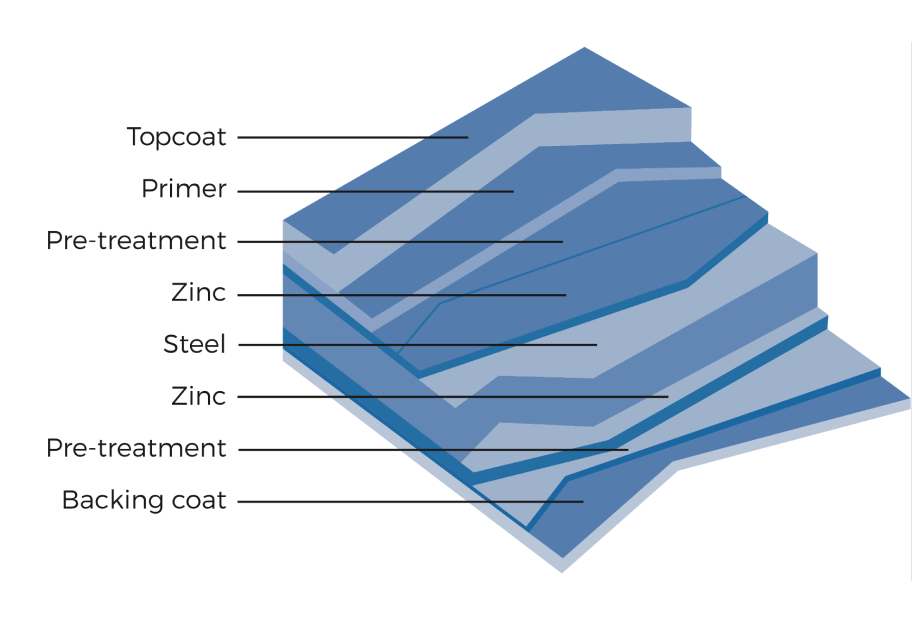

To produce the high-quality, pre-coated sheeting, a system of multi-layered coatings is applied to zinc-coated, high-tensile steel strips and oven cured to ensure optimum adhesion. This gives each sheet excellent corrosion resistance and weather protection, together with abrasion resistance and high strength.
We provide profiles with an extensive choice of colours, where aesthetic appeal and coatings can be matched to environmental and performance requirements.

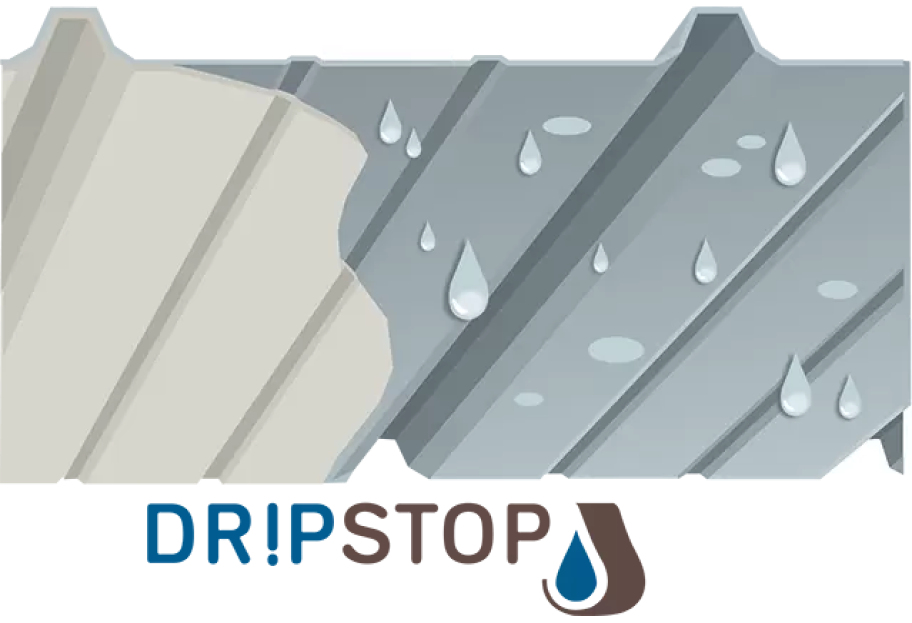

Our dripstop anti-condensation membrane is available with our box profile, corrugated and tile form profiles. Please contact us for further information.
Jump To Colour Chart

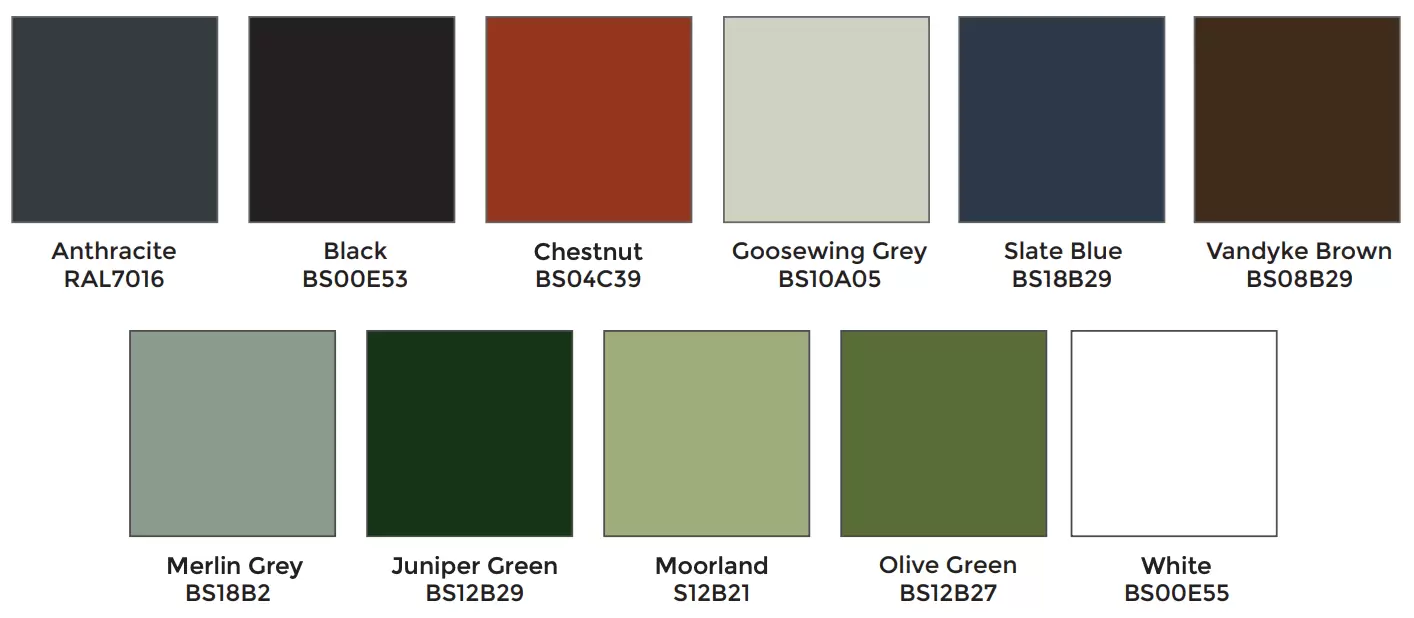

PVC Plastisol
Anthracite
RAL7016
Black
BS00E53
Chestnut
BS04C39
Goosewing Grey
BS10A05
Slate Blue
BS18B29
Vandyke Brown
BS08B29
Merlin Grey
BS18B2
Juniper Green
BS12B29
Moorland Green
S12B21
Olive Green
BS12B27
White
BS00E55
PVC plastisol colours are available in anthracite, black, chestnut, goosewing grey, merlin grey, juniper green, moorland green, olive green, slate blue, vandyke brown and white.
Please note: colours are for guidance purposes only, actual colour may vary from image supplied. Numbers represent nearest BS/RAL reference. If you would like to see the physical colour before purchasing, please contact us for a free swatch sample.
PVC PROFILE

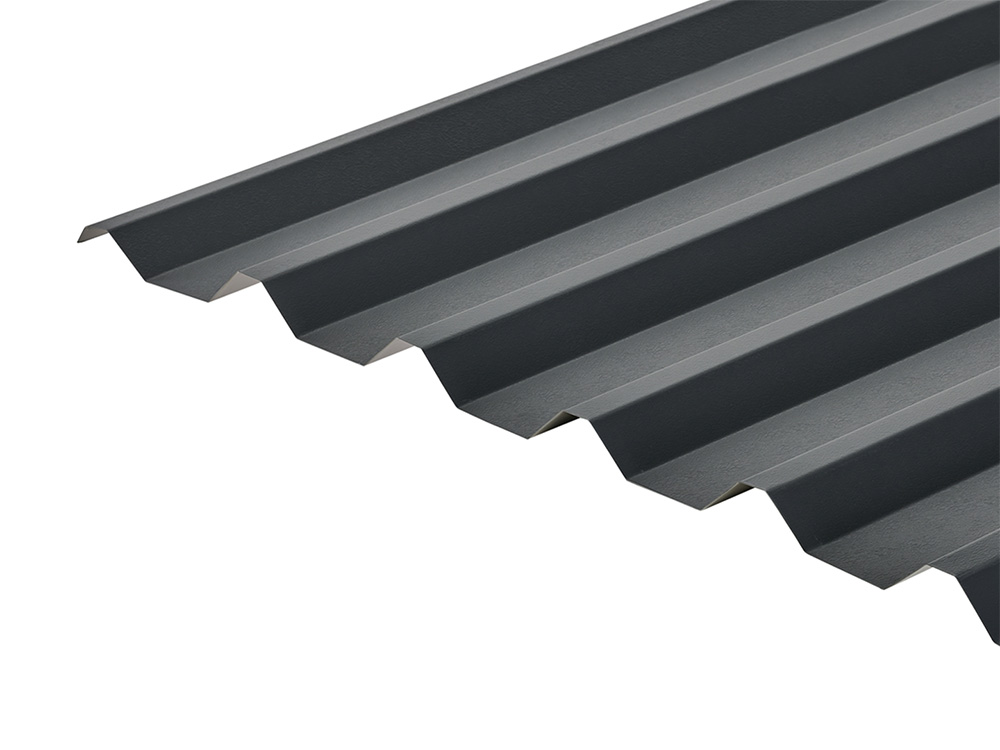

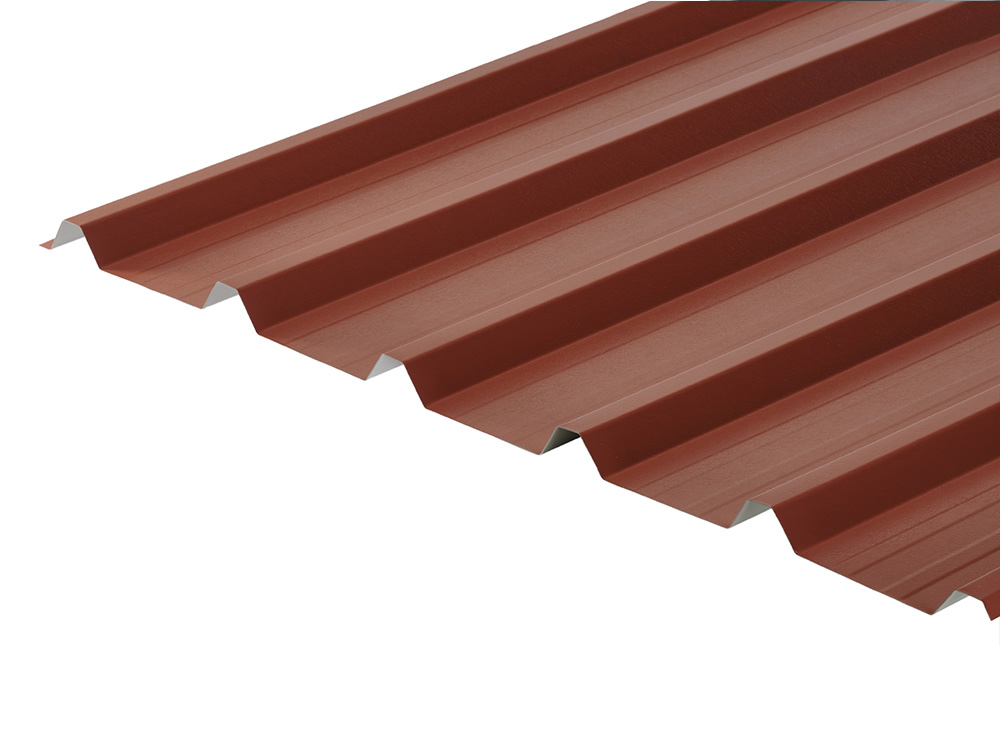

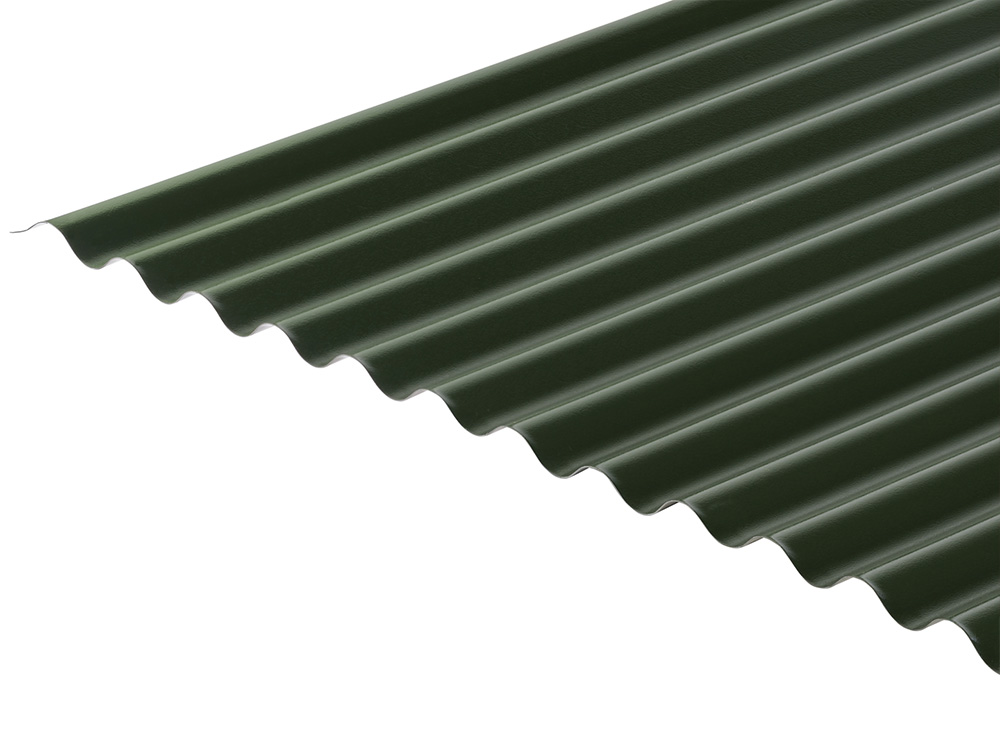

We manufacture PVC plastisol coated sheeting in 34/1000 profiled sheeting with a 34mm deep profile which gives 1000mm cover width which can be used at a minimum roof pitch of 4°. 32/1000 profiled sheeting with a 32mm deep profile which gives 1000mm cover width which can be used at a minimum roof pitch of 4°. 3” corrugated profile of 13 corrugations of 3 inches giving 990mm width cover which can be used at a minimum roof pitch of 10°.
QUALITY
The steel substrate has a hot dipped galvanised coating of 275 grammes per square metre. The substrate is primed and 200 microns of leather grain embossed plastisol are applied to the external surface. The reverse/ internal surface is galvanised and coated with a standard alkali grey wash coat. This gives a very long life (typically 15 to 25 years to first maintenance with a life in excess of 40 years in normal environments) with a high resistance to scratching and damage.
UV RESISTANCE
The plastisol applied consists of polyvinyl chloride based thermoplastic resins with short molecular chains for better UV resistance particularly suited to the construction sector.
HEAT RESISTANCE
Maximum continuous temperature -40°C to +80°C.
TOLERANCES
All dimensions are subject to roll forming tolerances.
THICKNESS
PVC plastisol coated sheeting is available in 0.5mm and 0.7mm thickness.
COLOUR
We supply PVC plastisol in standard colours from stock: goosewing grey, merlin grey, anthracite, moorland green, olive green, juniper green, chestnut, vandyke brown, slate blue, black and white.
STORAGE & HANDLING
For advice on storage and handling please consult the installation section of our website.
PRODUCT CLASSIFICATION
| Test Result | Test Standard | |
|---|---|---|
| Film Thickness | Ave. 200µm | EN 13523-1 |
| Gloss (60°C) | 10 ~ 35% | EN 13523-2 |
| Emboss | Leathergrain | |
| Abrasion Resistance (CS-10, 1kg, 250rev) | 10 ~ 15mg | EN 13523-16 |
| Scratch Resistance | > 5000g | EN 13523-12 |
| Flexibility | T-Bend (0T, 16°C) | EN 13523-7 |
| Reverse Impact | 18J | EN 13523-5 |
| Salt Spray Resistance | 1,000 Hours | EN 13523-8 |
| Humidity Resistance | 1,500 Hours | EN 13523-26 |
| Internal Environment Classification | CPI5 | EN 10169 |
| Corrosion Resistance Category | RC5 | EN 10169 |
| UV Resistance Category | Ruv3 | EN 10169 |
| Fire Classification | C - S2, d0 | EN 13051-1 |
APPLICABLE PROFILES

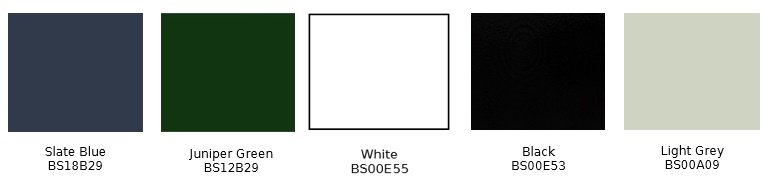

Polyester Paint Coated Chart
Slate Blue
BS18B29
Juniper Green
BS12B29
White
BS00E55
Black
BS00E53
Light Grey
BS00A09
Composite Grey
BS10A05
Polyester paint coated colours are available in slate blue, juniper green, white, black, composite grey and light grey.
Please note: colours are for guidance purposes only, actual colour may vary from image supplied. Numbers represent nearest BS/RAL reference. If you would like to see the physical colour before purchasing, please contact us for a free swatch sample.

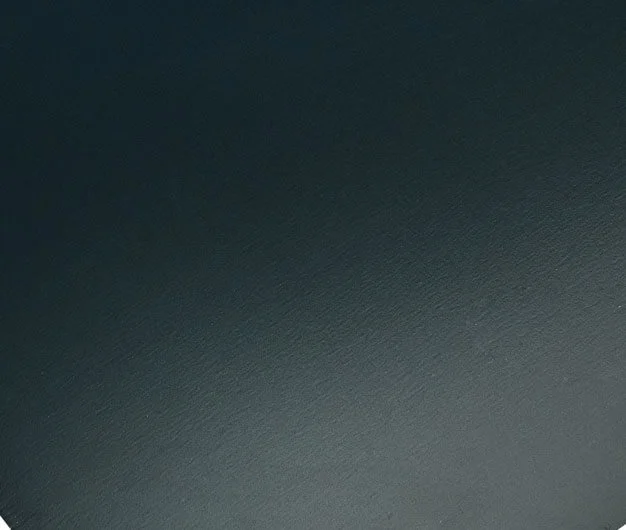

POLYESTER PAINT COATED PROFILE

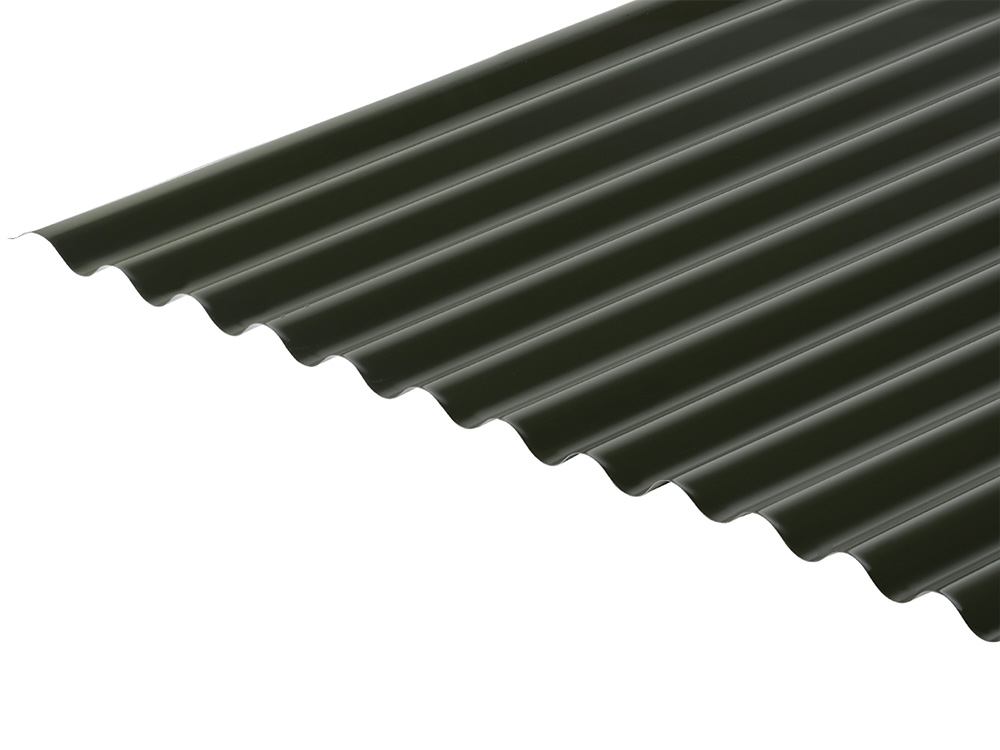

We manufacture polyester paint coated coated sheeting in 34/1000 profiled sheeting with a 34mm deep profile which gives 1000mm cover width which can be used at a minimum roof pitch of 4°. 32/1000 profiled sheeting with a 32mm deep profile which gives 1000mm cover width which can be used at a minimum roof pitch of 4°. 3” corrugated profile of 13 corrugations of 3 inches giving 990mm width cover which can be used at a minimum roof pitch of 10°.
QUALITY
The steel substrate has a hot dipped galvanised coating of 275 grammes per square metre. The substrate is primed and coated with 25 microns of high grade polyester enamel paint. The reverse/internal surface is galvanised and coated with a standard alkali grey wash coat. This gives long life (typically 8 to 12 years to first maintenance with a life in excess of 20 years in normal environments) but only has a moderate resistance to scratching.
HEAT RESISTANCE
Maximum continuous temperature -40°C to +80°C.
TOLERANCES
All dimensions are subject to roll forming tolerances.
THICKNESS
Polyester paint coated sheeting is available in 0.5mm and 0.70mm thickness.
COLOUR
Polyester paint finish sheeting is available in standard colours, juniper green, slate blue, white, black, composite grey or light grey.
STORAGE & HANDLING
For advice on storage and handling please consult the installation section of our website.
TYPICAL APPLICATIONS
Cladding, roofing and other building components, curtain walling, infill panels, partitioning, portable accommodation, cold stores, garage doors and vehicle panels.
APPLICABLE PROFILES
GreenCoat® Pural BT
Slate
Grey
RR2H8/SS0087
Tile
Red
RR750/SS0760
Silver Fir
Green
RR5J3/SS0975
Nordic Night
Black
RR33/SS0015
GreenCoat® Pural BT Coating is available in nordic night black, slate grey, tile red, and silver fir green.
Please note: Colours are for guidance purposes only; actual colours may vary from the images shown. Numbers represent the nearest BS/RAL reference. If you would like to view the physical colour before purchasing, please contact us for a free swatch sample.
GREENCOAT® PURAL BT PROFILE

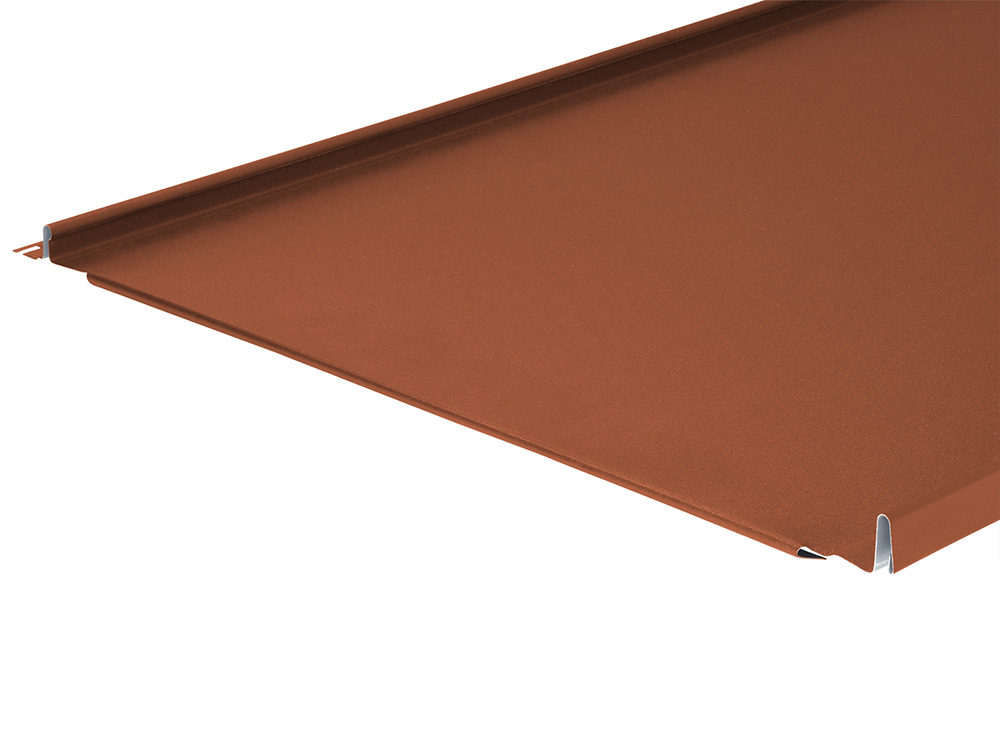

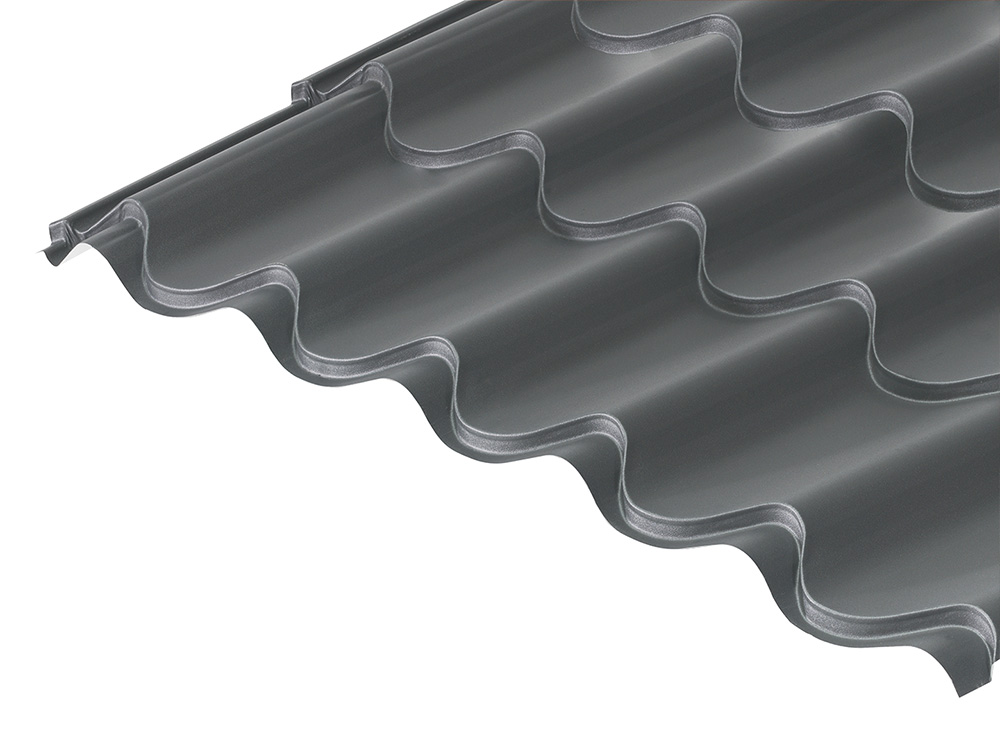

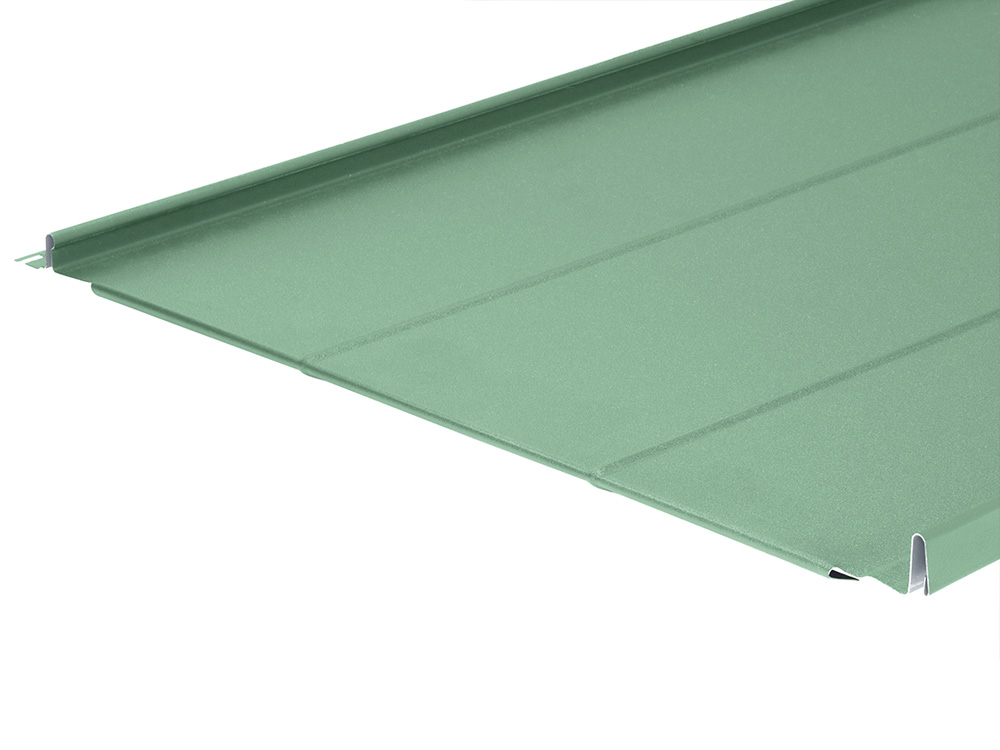

GreenCoat® Pural BT coated finishes are available in both tile form and standing seam profiles. If you require this finish on a different profile, please contact us on 01837 659901 and we will be happy to assist.
GreenCoat® Pural BT is manufactured using patented BT (bio-based Technology), offering a strong environmental advantage. In the BT coating, a significant portion of traditional fossil oil is replaced with Swedish rapeseed oil – a unique feature in the market.
SSAB holds the worldwide patent for this innovative coating technology.
QUALITY
The coating thickness is optimised for excellent wear resistance, weather durability, and low resource consumption. GreenCoat® Pural BT provides outstanding colour retention and superior corrosion protection.
The traditional appearance of this pantile-effect roofing sheet makes it ideal for sheds, garages, extensions, and more. Available colours include nordic night black, slate grey, tile red, and silver fir green.
HEAT RESISTANCE
GreenCoat® Pural BT products offer a premium finish designed to resist rust, white rust, UV radiation, scratches, and dirt build-up—resulting in reduced maintenance requirements.
THICKNESS
GreenCoat® Pural BT coating is available in 0.7mm thickness.
STORAGE & HANDLING
For guidance on proper storage and handling, please refer to the installation section on our website.
ADDITIONAL DETAILS
Reverse Side Coating: Two-layer grey coating for improved corrosion protection and adhesion.
Protective Film: Optional film for installation protection; remove within six months of manufacture or one month post-installation.
Sustainability: Manufactured with bio-based technology, reducing environmental impact without compromising performance.
KEY TECHNICAL PROPERTIES
GreenCoat® Pural BT is a premium, bio-based coated steel designed for superior performance in roofing and cladding applications. Manufactured to EN 10169 standards and fully chromate-free, this coating uses Swedish rapeseed oil and other renewable raw materials to deliver exceptional sustainability alongside durability.
This high-performance steel provides RC5+ corrosion resistance, RUV5 UV protection (matt), and a fire classification of A1 s1 d0, making it ideal for projects demanding long-term reliability. Its excellent scratch resistance (up to 40N) and ability to fold at temperatures down to -15°C ensures easier, year-round installation.
The newly developed satin finish offers a contemporary look (gloss 20) while maintaining the same strength and weather resistance as the matt, metallic, and regular ranges.
| Property | Matt | Metallic | Satin | Regular |
|---|---|---|---|---|
| Gloss Level | <5 | 40 | 20 | 40 |
| Corrosion Resistance | RC5+ | RC5+ | RC5+ | RC5+ |
| UV Resistance | RUV5 | RUV4 | RUV4-5 | RUV4 |
| Fire Classification (EN13501-1) | A1 s1 d0 | A1 s1 d0 | A1 s1 d0 | A1 s1 d0 |
| Scratch Resistance | 40N | 35N | 40N | 40N |
| Lowest Forming Temperature | -15°C | -15°C | -15°C | -15°C |
| Coating Thickness | 50µm | 45µm | 50µm | 50µm |
| Steel Grades | S280GD, S320GD, S350GD, DX51D | |||
| Zinc Coating | 275g/m2 | |||
| Available Widths | 1000–1500mm (Metallic max 1420mm) | |||
APPLICABLE PROFILES

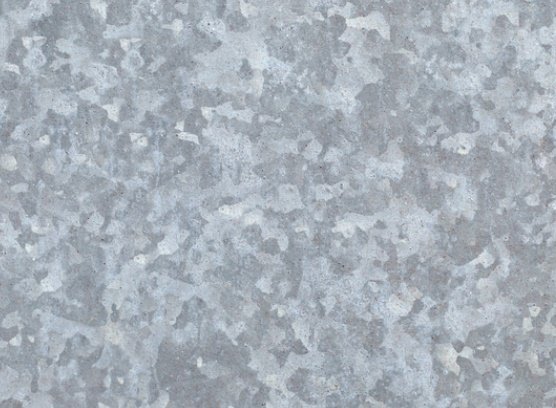

Galvanised
Galvanised
Please note: Colours are for guidance purposes only; actual colour may vary from image supplied. - Numbers represent nearest BS/RAL reference. If you would like to see the physical colour before purchasing, please contact us for a free swatch sample.
GALVANISED PROFILE

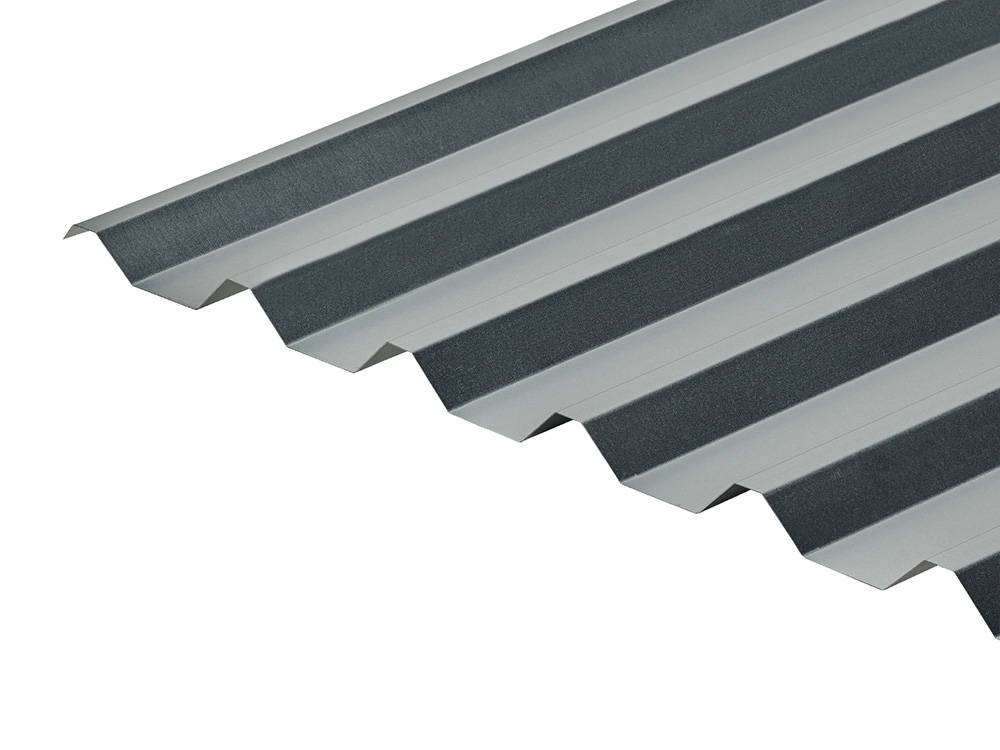

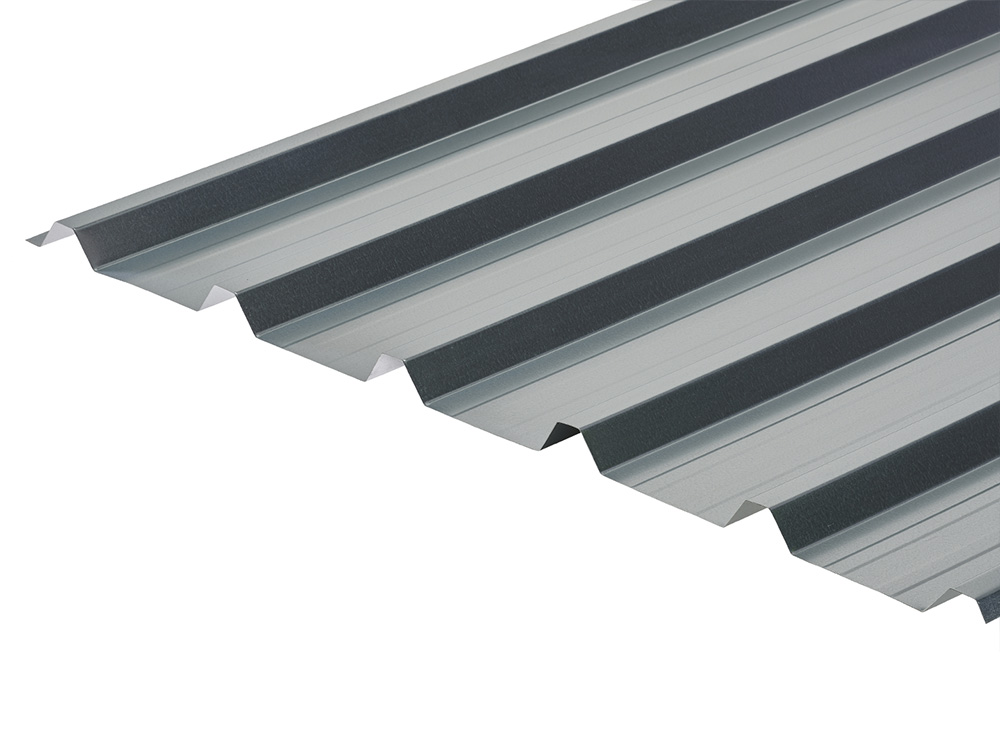

We manufacture galvanised coated sheeting in either 34/1000 Box profiled sheeting with a 34mm deep profile and a 166mm pitch in a 1000mm cover width which can be used at a minimum roof pitch of 4°. 32/1000 profiled sheeting with a 32mm deep profile which gives 1000mm cover width which can be used at a minimum roof pitch of 4°. or 3” corrugated profile of 13 corrugations of 3 inches giving 990mm width cover which can be used at a minimum roof pitch of 10°.
HEAT RESISTANCE
Galvanised steel offers excellent thermal resilience. With no painted topcoat, there is nothing to degrade, blister, or peel, ensuring consistent performance in both high and low temperature conditions.
TOLERANCES
All dimensions are subject to roll forming tolerances.
THICKNESS
Galvanised sheeting is available in 0.5mm and 0.7mm thickness.
STORAGE & HANDLING
For advice on storage and handling please consult the installation section of our website.
TYPICAL APPLICATIONS
Cladding, roofing and other building components, curtain walling, infill panels, partitioning, portable accommodation, cold stores, garage doors and vehicle panels.
COLOUR
Galvanised
