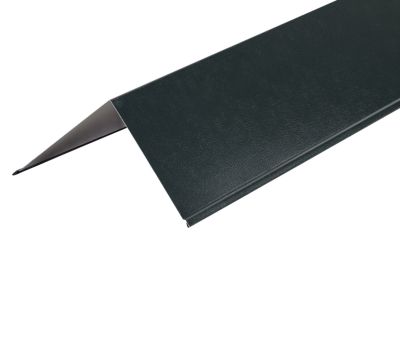

Corner Barge Flashings in PVC Plastisol Finish - 3m 150 x 150mm
An important element of any metal roofing or cladding installation, steel corner barges help to weatherproof the building, as well as improve the overall display. These 150mm x 150mm flashings have a PVC plastisol coating, in a wide range of colours corresponding to our PVC metal sheets.
About Our 150mm x 150mm Corner Barge Flashings PVC Plastisol Finish
Give your metal roofing or cladding a smart and reliable edge finish with our 3m PVC plastisol corner barge. This size is ideal for customers who want a neat and streamlined trim flashing that fits smaller verge areas without overpowering the design. The PVC plastisol coating adds dependable protection, helping your installation withstand daily weather conditions.
Each barge is folded to a 90° internal angle and can flex by approximately 10-15° in either direction, making it easy to achieve an accurate fit on a range of roof pitches. The PVC coating provides a strong outer layer that resists things like impact, corrosion and general wear. You can find detailed information about our coating types on our coatings page.
Benefits of 150mm x 150mm Corner Barge Flashings
- Creates a clean finish on small or compact roof/cladding edges
- Adaptable to specific roofing angles if needed
- A welt provides long-term stability
- Available in a wide variety colours
This size is ideal for customers who want a tidy appearance without a bulkier flashing. The reinforced safety welt increases durability, along with the plastisol surface finish that offers a low-maintenance flashing solution.
Flashing specifications
- Material: Galvanised steel
- Finish: PVC plastisol
- Size: 150mm × 150mm × 3m
- Coverage: 146mm × 146mm (approximately due to safety welt)
- Internal angle: 90° (flexes approx 10-15° each way)
- Compatibility: 13/3 corrugated, 32/1000 box profile, 34/1000 box profile sheets
If your box profile or corrugated project needs a more made-to-measure option, our team can help. Visit our custom flashings section to submit your measurements.
Fixing Guidance
Use our 22mm stitcher screws to secure these flashings to your chosen roofing or cladding sheets. When installing, allow an overlap of a least 100mm as this size provides approximately 146mm × 146mm coverage once in place.
You can also purchase our Cut Level 5 protective gloves, designed to offer dependable protection when lifting or fitting flashings and metal roofing sheets.
More installation support for our sheets and flashings can be found in our installation guides.
Looking for an alternative?
For a polyester paint corner barge, see our 90° corner barge flashings in polyester paint finish - 3m 150 x 150mm.
For a different size, see our 90° corner barge flashings in PVC plastisol finish - 3m 200mm x 200mm.
Or browse our roofing department for flashings and more.
Please note: Nominal sizes refer to overall flashing dimensions. 200mm x 200mm flashings provide an actual coverage of approximately 195mm x 195mm, and 150mm x 150mm flashings provide an actual coverage of approximately 146mm x 146mm. Welt detail may vary depending on manufacture.
