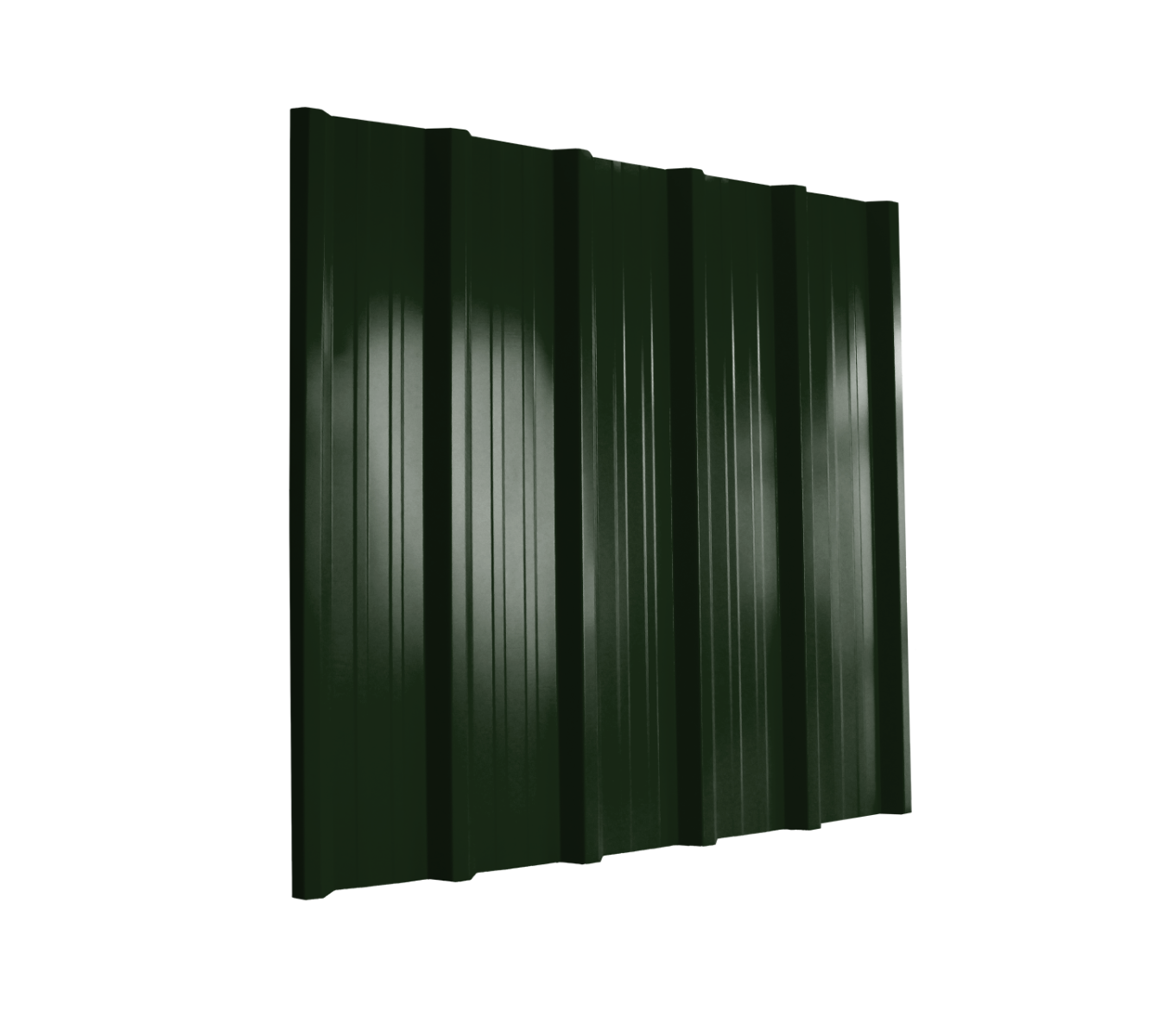

32/1000 Box Profile 0.5 Thick Polyester Paint Coated Roof Sheet

From £7.68
From: £7.68

/m

Inc VAT

In stock
SKU
cb5-cp

Please note images may vary from actual item supplied due to lighting variations and camera angles


Profiles 32/100 box profile sheets, polyester paint coated roof sheets are robust single skin box profiles. Comprising 6 profiles of a 200mm pitch across the width of the sheet with a 32mm profile height. The appearance of these profile sheets is preferred by some due to the low profiles. The coated steel strip gives 1000mm actual width coverage when lapped.

Available in a range of colours, please select from the options below.

Please note images may vary from actual item supplied due to lighting variations and camera angles


32/1000 Box Profile 0.5 Thick Polyester Paint Coated Roof Sheet is available to buy in increments of 1
Loading...

Benefits and Uses of 32/1000 Box Profile Sheets

Whether you’re building a roof for agricultural or domestic, commercial or industrial purposes, these particular polyester coated roofing sheets will work for your project. Use as a single skin sheeting or over-cladding of an existing roof or part of a built-up insulated system.

These profiles are both robust and economical and can be manufactured to specific lengths, to save you time during installation. 32/1000 box profile sheets are lightweight and are easy to fit. Available in a range of traditional colours and independently tested to current CE EN 14782 requirements.

Please note polyester paint finshes can easily be scratches, take care when installing.

Specifications:
Application: Wall or Roof
External Finish: Polyester paint finish
Internal Finish: Light grey Polyester
External Face: Profiled 32/1000, 32mm profile height, 200mm pitch centres
Standard Width: 1000mm when lapped
Max Length: 6m in 0.5mm sheet thickness
Minimum Pitch: 4 degrees
Gauge Thickness: 0.5mm
Weight: 0.5mm thickness – 4.9kg/m2

When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fasteners in lower part of profile.

Rooflights, fixings, trims and flashings complete the system, offering robust, cost effective sheet cladding



PLEASE NOTE – Extra care should always be taken when handling metal sheets and flashings we advise using the correct type of Glove when handling or moving metal sheets and flashings. Gloves can be purchased on our website.

Permissable Loads:

Permissable downward (imposed) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.49 2.52 1.91 1.37 0.99 - - - - -
double 2.58 2 1.6 1.3 1.09 0.92 0.79 - - -
multi 3.15 2.45 1.96 1.6 1.34 1.13 0.86 - - -
0.70mm 6.22 single 5.77 4.17 2.74 1.9 1.37 1.02 0.78 - - -
double 4.12 3.18 2.53 2.06 1.72 1.45 1.2 0.94 0.75 -
multi 5.04 3.9 3.11 2.54 2.11 1.57 1.2 0.94 0.75 -



Permissable wind uplifts (negative) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.62 2.62 1.98 1.52 1.1 0.82 - - - -
double 2.52 1.95 1.56 1.27 1.06 0.89 0.77 - - -
multi 3.09 2.39 1.91 1.56 1.3 1.1 0.94 0.82 - -
0.70mm 6.22 single 5.58 4.03 3.05 2.14 1.54 1.15 0.88 - - -
double 4.2 3.24 2.59 2.11 1.76 1.48 1.27 1.1 0.96 0.8
multi 5.13 3.98 3.18 2.6 2.16 1.83 1.57 1.25 0.99 0.8
