90º Corner Barge Flashings in Polyester Paint Finish - 3m 200mm x 200mm
Use these barges as a trim at the end of a run of sheets, sealing off the edges of the roofing system. Sometimes known as verges, they are a vital element of any profiled roof and not only help with waterproofing, but also add aesthetic appeal. Seamlessly match these flashings to your polyester paint roofing or cladding system for a complete and professional project.

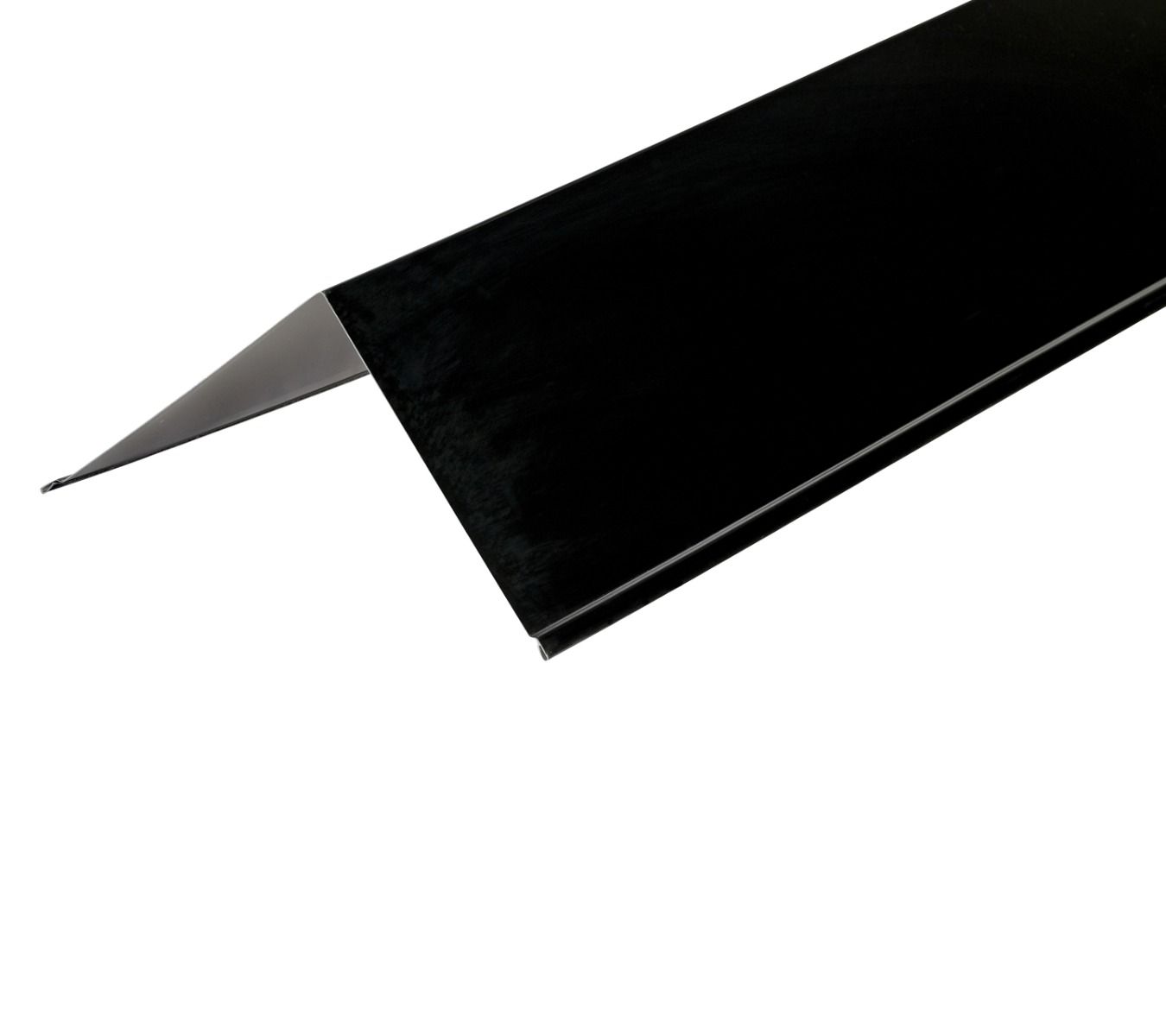

About Our 200mm x 200mm Corner Barge Flashings In Polyester Paint Finish
Create a neat, weather-resistant finish at the edge of your project with our corner barge flashings. Designed to cap and protect the verge where roofing or cladding sheets finish, these flashings provide a clean appearance and also help shield your system from wind and water ingress.
With a 90° internal angle, each flashing can flex approximately 10-15° in either direction to suit your design needs. A safety welt along both edges adds structural rigidity and a smoother, strengthened edge to the metal sheets. The polyester paint surface ensures a consistent, colour-matched appearance when paired with our polyester-coated sheets.
Benefits of 200mm x 200mm Corner Barge Flashings
- Provides a professional finish
- Flexes for an easy fit with your project requirements
- Safety welt improves strength
- Matches our polyester-paint roofing sheets for a uniform look
- Standard 3m in length for convenient installation
These flashings are suitable for use alongside our 32/1000 box profile, 34/1000 box profile and 13/3 corrugated sheets, and match the polyester paint finished sheets for a fully compatible system.
Flashing specifications
- Material: Galvanised steel
- Finish: Polyester paint
- Size: 200mm × 200mm × 3m
- Coverage: 195mm × 195mm (due to welt)
- Internal angle: 90° (flexes approx 10-15° each way)
- Compatibility: 13/3 corrugated, 32/1000 box profile, 34/1000 box profile
Need a non-standard or specific size? Please see our custom flashings page, where you can see what we have to offer, provide more information and get in contact with us.
Please be aware that our juniper green polyester paint sheets and flashings may show slight colour variation between batches. If you need to match an existing installation, please call 01837 659901.
Fixing Guidance
Use 22mm stitcher screws to secure the corner barge into the sheet beneath. With a built in bonded washer, these screws should seal snugly to the sheets for a secure installation. When joining flashings end-to-end, allow for a minimum overlap of 200mm to ensure a weather-tight finish.
Ensure that the safety welt remains undamaged during the fitting process for optimal rigidity. Also, peel away the protective film after installation (or sooner if stored in sunlight or wet weather) to prevent it from bonding to the sheet.
We also supply Cut Level 5 safety gloves that provide dependable cut resistance, making them ideal for handling flashings and steel sheet products safely.
For detailed fitting steps, explore our full range of installation guides.
Looking for an alternative?
For a PVC corner barge, see our 90° corner barge flashings with PVC plastisol finish - 3m 200mm x 200mm.
For a different size, see our corner barge flashings in polyester paint finish - 3m 150 x 150mm.
Or browse our roofing department for flashings and more.
Please note: Nominal sizes refer to overall flashing dimensions. 200mm × 200mm flashings provide an actual coverage of approximately 195mm × 195mm, and 150mm × 150mm flashings provide an actual coverage of approximately 146mm × 146mm. Welt detail may vary depending on manufacture.
From £19.56 inc VAT
Order A Sample Pack!
Click here to view the online installation guide (1).
Download the datasheet for 90º Corner Barge Flashings in Polyester Paint Finish - 3m 200mm x 200mm
