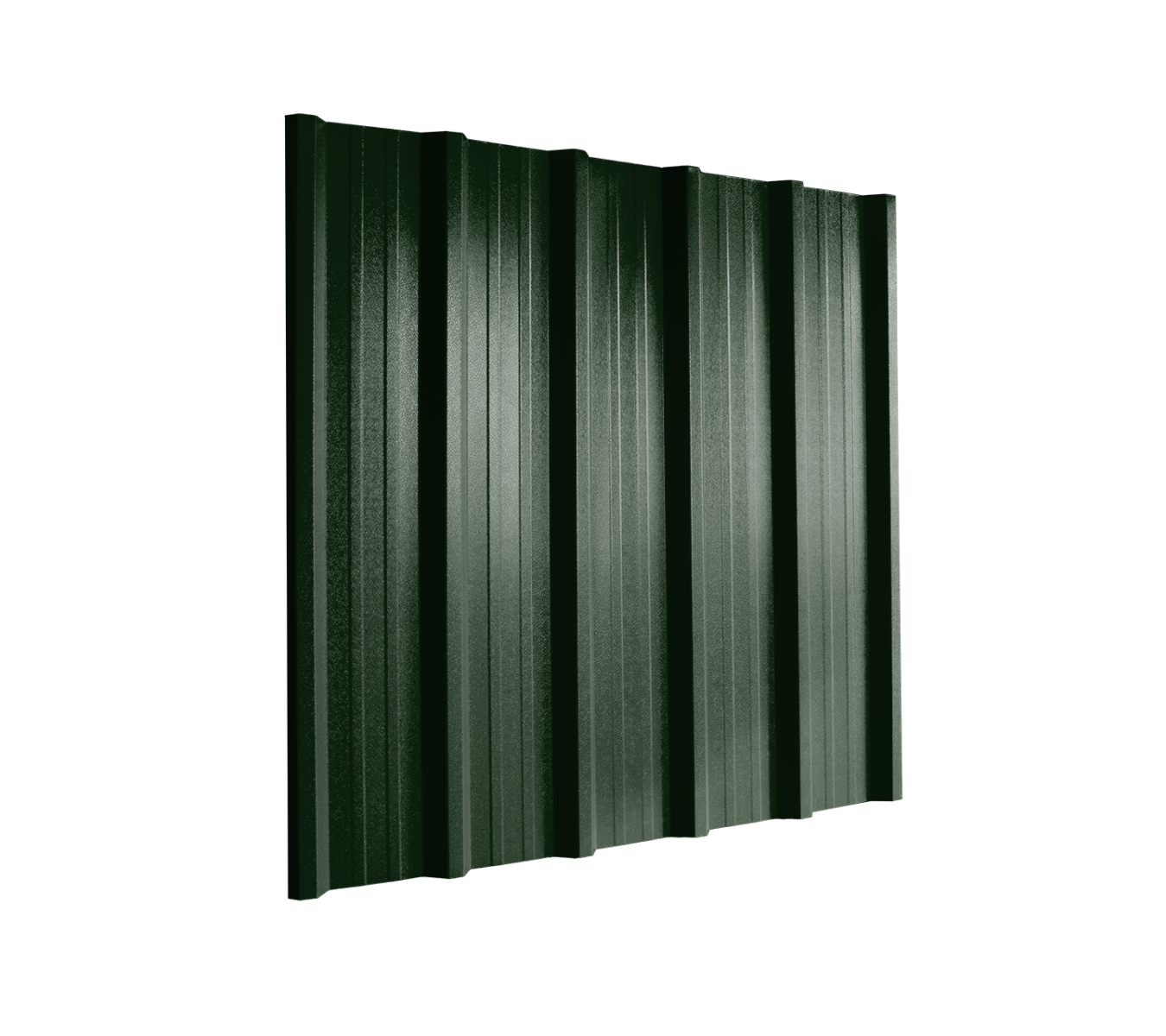

    32/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet

    32/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet

    Rating:
    93% of 100
    4 Reviews | Product Specification
    From £13.44

    About this product

    Our 0.5mm thick single skin box profile PVC roof sheets give robust strength roofing sheets. Incorporating 6 profiles of 200mm pitch across the width of the sheet and 32mm profile height the roofing sheets work in both a domestic and a commercial environment.

    Please note images may vary from actual item supplied due to lighting variations and camera angles

    6.6
    NATIONAL DELIVERY - checking...
    ANDOVER COLLECTION - checking...
    OKEHAMPTON COLLECTION - checking...
    Total Price: £13.44 Inc VAT
    View our product installation guide
    Add to Basket
    Nationwide Delivery
    Made In Uk

    32/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet

    32/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet
    32/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet 32/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet Cladco 32/1000 Box Profile Roofing Sheets, manufactured in the heart of Devon

    Online Roofing Calculator

    Use our calculator to work out how many roofing sheets you need for your project.

    Roofing Calculator
    You May Also Need
    1. Safety Gloves - Cut Level 5 Protective Gloves - Conforms to EN388 (4543)
      Safety Gloves - Cut Level 5 Protective Gloves - Conforms to EN388 (4543)
      From £7.14
    2. TEK screw socket driver tool
      TEK screw socket driver tool
      £7.20
    3. Screws to wood with a 19mm bonded washer (Pack of 100)
      Screws to wood with a 19mm bonded washer (Pack of 100)
      From £12.00
    4. Vent 3 Pro Breathable Roofing Membrane by Cromar. 50m x 1m, Light Green
      Vent 3 Pro Breathable Roofing Membrane by Cromar. 50m x 1m, Light Green
      £84.60
    5. 130º Ridge Flashings in PVC Plastisol Finish in 3m 200mm x 200mm
      130º Ridge Flashings in PVC Plastisol Finish in 3m 200mm x 200mm
      From £29.40
    6. 90º Corner Barge Flashings in PVC Plastisol finish - 3m 200mm x 200mm
      90º Corner Barge Flashings in PVC Plastisol finish - 3m 200mm x 200mm
      From £29.40
    7. HC19 19mm colour cap (Pack of 100)
      HC19 19mm colour cap (Pack of 100)
      From £3.60
    8. 22mm stitcher screws with a 16mm bonded washer (Pack of 100)
      22mm stitcher screws with a 16mm bonded washer (Pack of 100)
      £12.00
    9. Mastic lapping tape strip, 9mm x 1.5mm x 30m rolls grey
      Mastic lapping tape strip, 9mm x 1.5mm x 30m rolls grey
      £8.34
    10. Silicone elastic low modulus sealant 300ml cartridge clear
      Silicone elastic low modulus sealant 300ml cartridge clear
      £11.94
    Features

    Uses of 32/1000 Box Profile Roofing Sheets:

    Our PVC Plastisol coated profile roofing sheets can be used for industrial, agricultural, commercial and domestic roofing and cladding projects. Profile roofing sheets can be used as single skin sheeting, over clad of an existing roof or part of a built-up insulated system.

    Benefits of using 32/1000 Box Profile Plastisol Roofing Sheets:

    Some of the many benefits include these sheets being economic with a robust profile and we can manufacture to specific lengths. They are also extremely lightweight as well as being fast and easy to fit, come in a range of colours and are independently tested to current CE EN 14782 requirements.

    Galvanised has naturally occurring reactive properties protecting the material against corrosion, staining and rust. Cladco Galvanised Steel Roofing Sheets are ideal for most roofing projects thanks to their corrosion and element-resistant properties.

    Need a temporary covering?
    See our range of Tarpaulins including Lightweight, Standard, or Heavy Weight Tarpaulins.

    Specifications:
    Application: Wall or Roof
    External Finish: PVC Plastisol
    Internal Finish: Light grey Polyester
    External Face: Profiled 32/1000, 32mm profile height, 200mm pitch centres
    Standard Width: 1000mm when lapped
    Max Length: 7m in 0.5mm sheet thickness
    Minimum Pitch: 4 degrees
    Gauge Thickness: 0.5mm
    Weight: 0.5mm thickness – 6.6kg/m2

    Looking for 0.7mm thickness?
    See our 32/1000 Box Profile 0.7 PVC Plastisol Coated Roof Sheet

    Looking for a different finish?
    For Polyester Paint see our 32/1000 Box Profile 0.5 Thick Polyester Paint Coated Roof Sheet
    For Galvanised see our 32/1000 Box Profile 0.5 Thick Galvanised Roof Sheet

    When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fasteners in lower part of profile.

    Rooflights, fixings, trims and flashings complete the system, offering robust, cost effective sheet cladding



    PLEASE NOTE – Extra care should always be taken when handling metal sheets and flashings we advise using the correct type of Glove when handling or moving metal sheets and flashings. Gloves can be purchased on our website.

    Read More
    Permissable
    Loads
    Permissable Loads:

    Permissable downward (imposed) loads in kN/m2

    Sheet Thickness Weight kg/m2 Span Condition Span mm
    1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
    0.50mm 4.78 single 3.49 2.52 1.91 1.37 0.99 - - - - -
    double 2.58 2 1.6 1.3 1.09 0.92 0.79 - - -
    multi 3.15 2.45 1.96 1.6 1.34 1.13 0.86 - - -
    0.70mm 6.22 single 5.77 4.17 2.74 1.9 1.37 1.02 0.78 - - -
    double 4.12 3.18 2.53 2.06 1.72 1.45 1.2 0.94 0.75 -
    multi 5.04 3.9 3.11 2.54 2.11 1.57 1.2 0.94 0.75 -



    Permissable wind uplifts (negative) loads in kN/m2

    Sheet Thickness Weight kg/m2 Span Condition Span mm
    1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
    0.50mm 4.78 single 3.62 2.62 1.98 1.52 1.1 0.82 - - - -
    double 2.52 1.95 1.56 1.27 1.06 0.89 0.77 - - -
    multi 3.09 2.39 1.91 1.56 1.3 1.1 0.94 0.82 - -
    0.70mm 6.22 single 5.58 4.03 3.05 2.14 1.54 1.15 0.88 - - -
    double 4.2 3.24 2.59 2.11 1.76 1.48 1.27 1.1 0.96 0.8
    multi 5.13 3.98 3.18 2.6 2.16 1.83 1.57 1.25 0.99 0.8
    Read More
    Delivery
    Information

    Please click on the variable options on our checkout page.

    Nationwide Delivery service available for all items with a range of options. The table below shows available options and timescales for delivery..

    Useful Links: Delivery Policy | Collection Policy

    Delivery

    Nationwide Delivery estimated within 7-10 working days.


    Collection

    Goods can be collected from Okehampton, Devon. Please allow 5 working days prior to collection.


    Safety Advice

    Please note for collection or delivery suitable safety equipment is required for the handling of materials.


    Pricing Table

    TYPE WHEN? HOW MUCH?

    		 Cladco Profile Delivery
    (Orders under £500)    		 Estimated 7-10 working days* £192.00
    Cladco Profile Delivery
    (Orders over £500)    		 Estimated 7-10 working days* £96.00
    Cladco Profile Delivery
    (Scotland Delivery)    		 within 15 working days* £360.00

    		 Parcelforce Standard
    (Small Parcels)    		 3-5 Working Days £5.99
    Parcelforce Standard
    (Large Parcels)    		 3-5 working days £24.99

    		 Sample Packs 5 Working Days FREE
    *Please allow for public holidays and weekends (non-delivery days)

    Roofing items may be delivered on a pallet, as per the terms and conditions these are considered part of the packaging and will need to be disposed of by the receiver of the items. We are unable to remove this pallet after delivery.

    Documents

    Installation Guide (InstallationGuide321000)

    Datasheet

    View the 32/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet choice of coatings.
