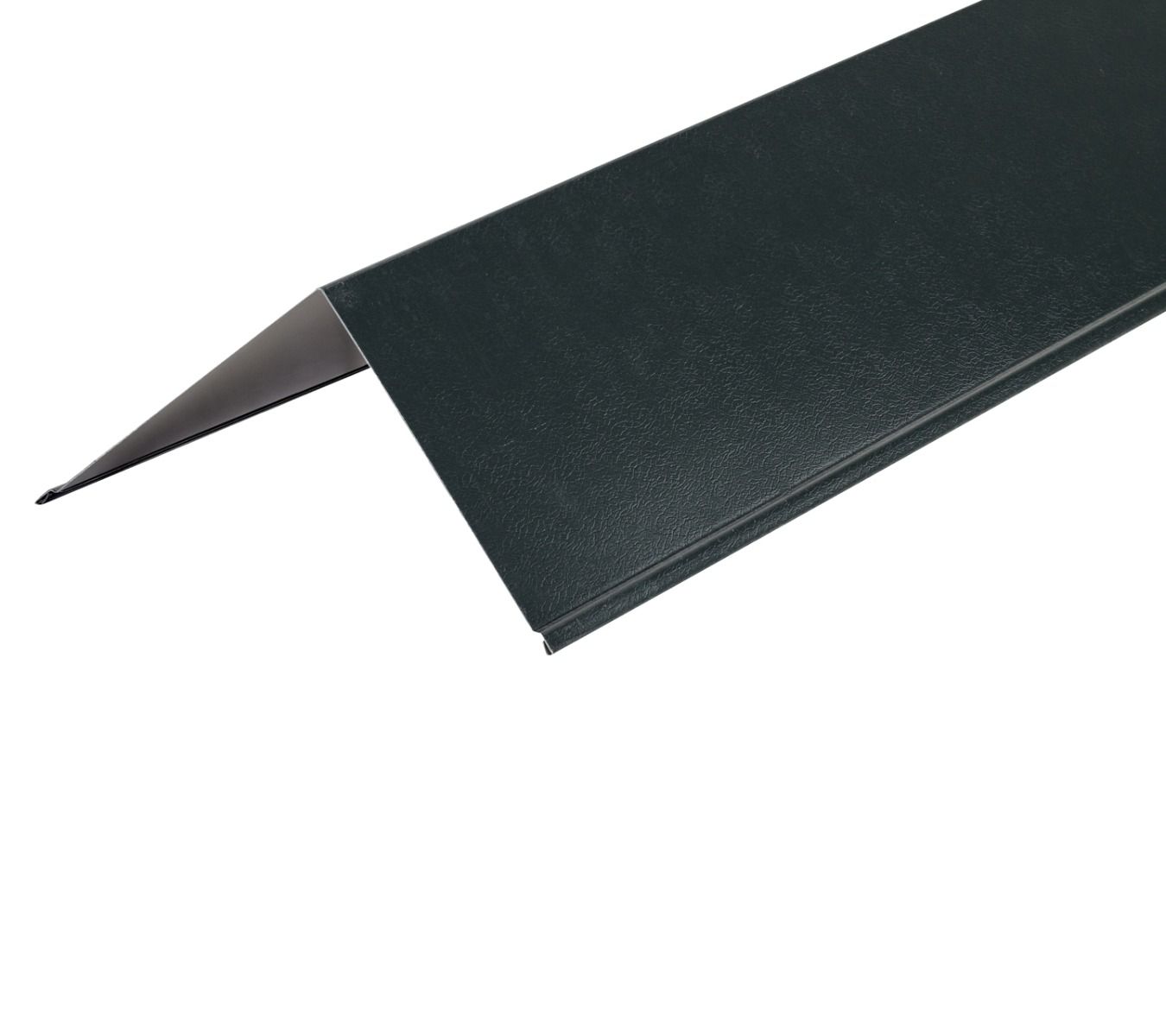

90º Corner Barge Flashings in PVC Plastisol finish - 3m 200mm x 200mm
Barge flashings, also known as verges, provide a smart and protective line to the edge of metal roofing and cladding installations. They work by sealing off the ends of the sheets to help build a weather-tight and improved visual appearance. Available in a wide range of colours to blend or contrast in design, they are easy to install to give a practical and attractive solution to your installation.
About Our 200mm x 200mm Corner Barge Flashings In PVC Plastisol Finish
Complete the edge of your metal roofing or cladding with confidence using our 3m PVC plastisol corner barge. These flashings are engineered for long-lasting protection, even in demanding outdoor conditions.
Each barge has been folded to a 90° internal angle and flexes to 10–15° either way, allowing it to adapt neatly to your project. The PVC layer creates a tough exterior that offers excellent resistance to weathering, impact, corrosion and rust. Find out more about our coating options here.
Benefits of 200mm x 200mm Corner Barge Flashings
- Offers a clean and professional installation finish
- Can be flexed to suit your project specifications
- Improved strength due to the safety welt
- Available in 11 colours to match our range of PVC-coated metal sheets
These flashings feature a reinforced safety welt that adds strength and reliability to each installation, while the plastisol surface provides a low-maintenance surface that looks good for years. With a wide selection of colours available, you can choose a look that is seamless or creates a striking contrast to your design.
Flashing specifications
- Material: Galvanised steel
- Finish: PVC plastisol
- Size: 200mm × 200mm × 3m
- Coverage: 195mm × 195mm due to welt
- Internal angle: 90° (flexes approx 10-15° each way)
- Compatibility: 32/1000 box profile, 34/1000 box profile, 13/3 corrugated
If your build requires something more bespoke, simply share your measurements with our team, who will always try to accommodate this where possible. You can find out in our custom flashings section.
These flashings are recommended for use with our corrugated and box profile metal sheets.
Fixing Guidance
Our 22mm stitcher screws are suitable for fitting these flashings to the roofing or cladding metal sheets.
Allow for an overlap of at least 100mm when installing end-to-end. Also consider the safety welt when installing, and these flashings would have a coverage of approximately 195mm × 195mm once installed.
For safer handling on site, we offer Cut Level 5 safety gloves that provide the right level of protection when working with potentially sharp flashings and metal sheet edges.
You can find more information about fitting both our roofing and cladding sheets, as well as our flashings, via our installation guides.
Looking for an alternative?
For a polyester paint corner barge, see our 90° corner barge flashings with polyester paint finish - 3m 200mm x 200mm.
For a different size, see our corner barge flashings in PVC plastisol finish - 3m 150 x 150mm.
Or browse our roofing department for flashings and more.
Please note: Nominal sizes refer to overall flashing dimensions. 200mm x 200mm flashings provide an actual coverage of approximately 195mm x 195mm, and 150mm x 150mm flashings provide an actual coverage of approximately 146mm × 146mm. Welt detail may vary depending on manufacture.
