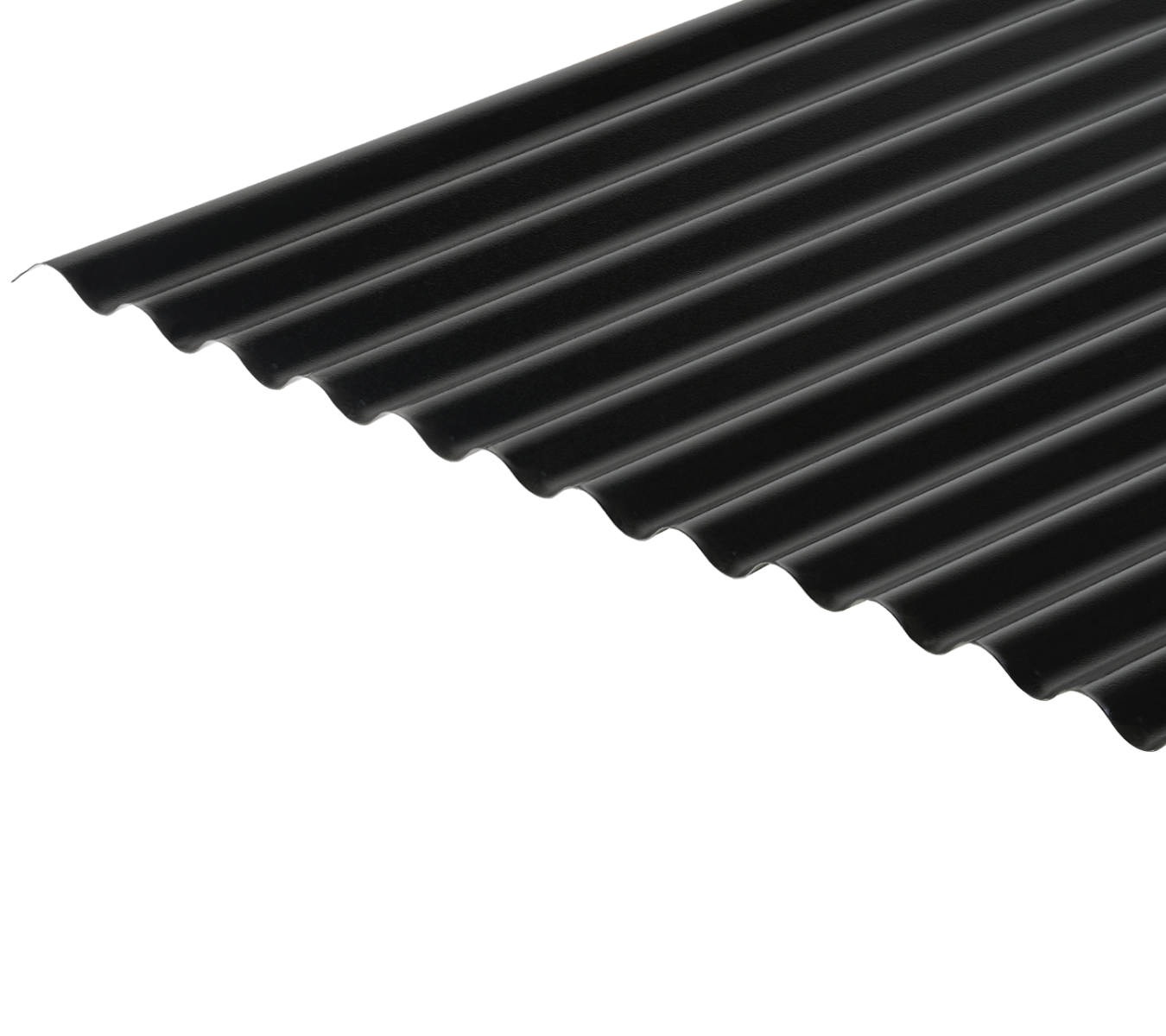

13/3 Corrugated 0.7 Thick PVC Plastisol Coated Roof Sheet
Cladco 13/3 Corrugated Roofing Sheets with a PVC Plastisol Coat feature 13 corrugations, each 3 inch/76mm. Corrugated Roof Sheets give a total width coverage of 990mm when installed. Galvanised Corrugated Roof Sheets are available in a range of colours and in 0.7mm thickness. Please note, we advise using the 65mm Screws with Baz Washers with these sheets.
Uses of Cladco 0.7mm Corrugated Roofing Sheets
Mainly used as roofing on industrial, domestic, commercial and agricultural buildings, these single-skin steel corrugated roof sheets can be used over clad an existing roof, part of an insulated build-up system, or purely as single-skin roofing.
Construction using this type of corrugated sheet can be safely undertaken down to a 10-degree pitch using self-drilling 65mm screws with BAZ washers on the top part of the 13/3 profile. Please refer to our installation guide for more information.
PVC Plastisol coating provides a life typically 15 to 25 year to first maintenance or repaint, with a life in excess of 40 years. This coating also provides a high resistance to scratching and damage.
Benefits of Corrugated Cladding Sheets
The lightweight corrugated sheets are easy to fit, making your installation fast and easy. Cladco corrugated sheeting is available in a range of colours, thicknesses and finishes and are independently-tested to current CE EN 14782 requirements.
For any further information about corrugated Roof Sheets, please contact us for further information.
Looking for tarpaulins?
Browse our Tarpaulin Range for lightweight, standard, or heavy weight tarpaulins.
From £27.94 inc VAT
From £27.94 inc VAT
Inspiration
Order A Sample Pack!
Working out the total square meterage of your roof will require measuring the total width of the roof’s area as well as the distance from the eaves (the lowest point) to the apex (the highest point) of the roof. This should be undertaken carefully and safely.
We recommend taking these measurements from the inside of your building for safety purposes. Multiply the two measurements together to give the total square meterage of the roof.
For apex, or dual-sided, roofs, you will need to work out the square meterage of each side of the roof and add the numbers together for the total coverage.
Permissible downward (imposed) loads in kN/m2
| Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
| 0.50mm | 4.78 | single | 3.49 | 2.52 | 1.91 | 1.37 | 0.99 | - | - | - | - | - |
| double | 2.58 | 2 | 1.6 | 1.3 | 1.09 | 0.92 | 0.79 | - | - | - | ||
| multi | 3.15 | 2.45 | 1.96 | 1.6 | 1.34 | 1.13 | 0.86 | - | - | - | ||
| 0.70mm | 6.22 | single | 5.77 | 4.17 | 2.74 | 1.9 | 1.37 | 1.02 | 0.78 | - | - | - |
| double | 4.12 | 3.18 | 2.53 | 2.06 | 1.72 | 1.45 | 1.2 | 0.94 | 0.75 | - | ||
| multi | 5.04 | 3.9 | 3.11 | 2.54 | 2.11 | 1.57 | 1.2 | 0.94 | 0.75 | - | ||
Permissible wind uplifts (negative) loads in kN/m2
| Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
| 0.50mm | 4.78 | single | 3.62 | 2.62 | 1.98 | 1.52 | 1.1 | 0.82 | - | - | - | - |
| double | 2.52 | 1.95 | 1.56 | 1.27 | 1.06 | 0.89 | 0.77 | - | - | - | ||
| multi | 3.09 | 2.39 | 1.91 | 1.56 | 1.3 | 1.1 | 0.94 | 0.82 | - | - | ||
| 0.70mm | 6.22 | single | 5.58 | 4.03 | 3.05 | 2.14 | 1.54 | 1.15 | 0.88 | - | - | - |
| double | 4.2 | 3.24 | 2.59 | 2.11 | 1.76 | 1.48 | 1.27 | 1.1 | 0.96 | 0.8 | ||
| multi | 5.13 | 3.98 | 3.18 | 2.6 | 2.16 | 1.83 | 1.57 | 1.25 | 0.99 | 0.8 | ||
Download our printable installation guide.
