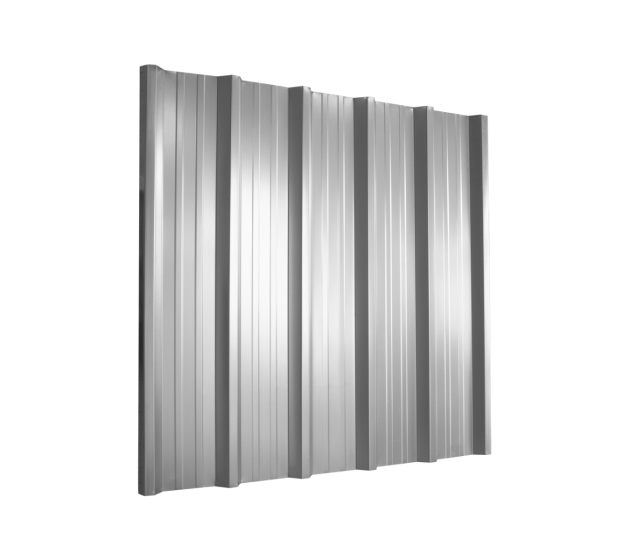

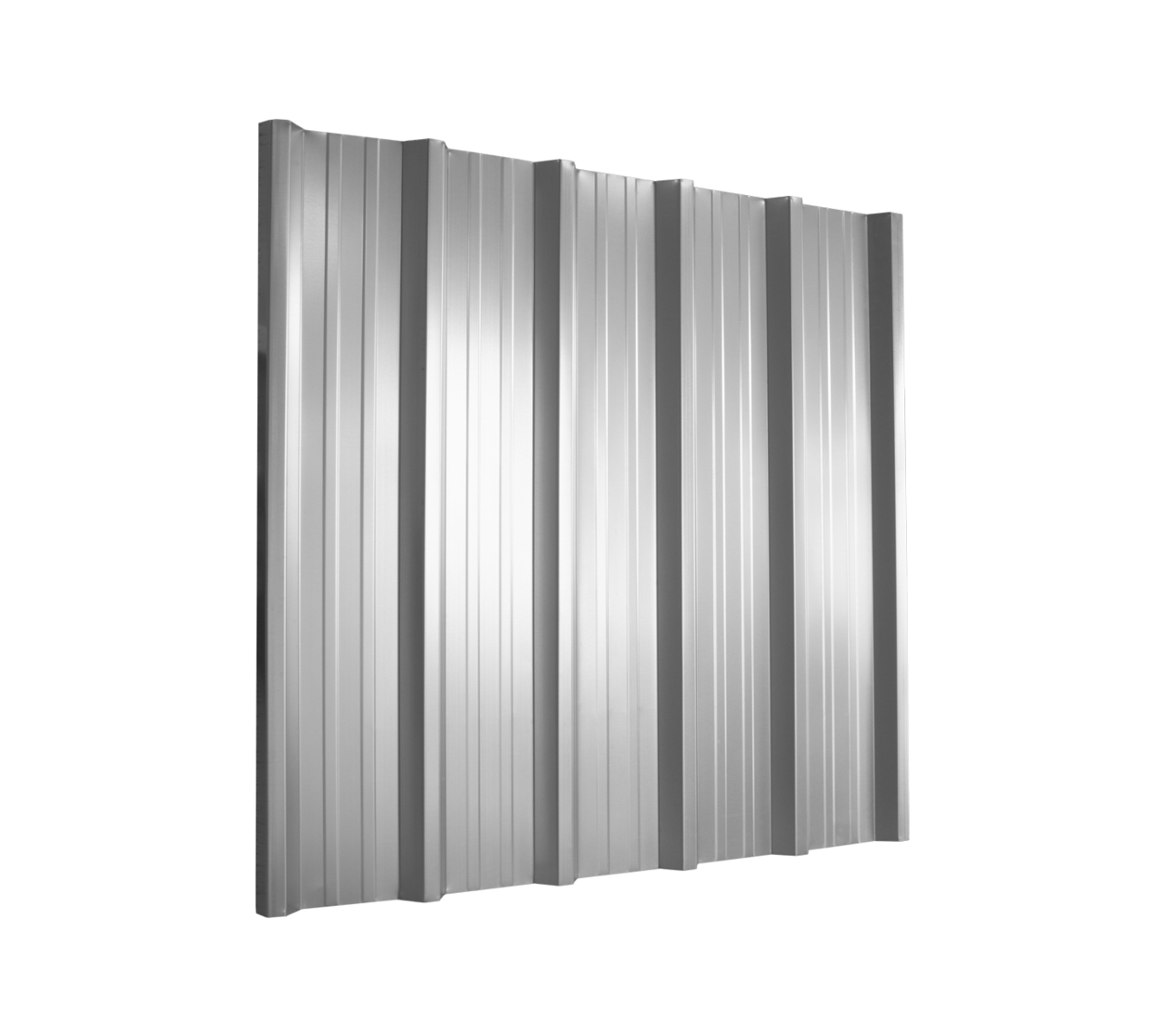

32/1000 Box Profile 0.5 Thick Galvanised Roof Sheet

£11.40
£11.40

/m

Inc VAT

In stock
SKU
R32G5

Please note images may vary from actual item supplied due to lighting variations and camera angles


Our 32/1000 box profile 0.5 thick roofing sheets, sometimes referred to as single skin box profile sheets are often used for side cladding on buildings. The design of 32/1000 gives a robust profile roofing sheet strength. Incorporating 6 profiles of 200mm pitch across the sheet width and 32mm profile height, these are superb roofing sheets for home or commercial use. Some users prefer the appearance of these galvanised box profile sheets as it has lower and fewer profiles. It’s made from a galvanised steel strip and gives 1000mm actual width cover when lapped.

Galvanised finishes are often favoured for traditional projects where no colour finish is required.

Please note images may vary from actual item supplied due to lighting variations and camera angles


Colour Galvanised
4.9
Total Price: £11.40
Inc VAT

Uses of 32/1000 Box Profile Roofing Sheets:

Cladco 0.5mm thickness 32/1000 roofing sheets are often favoured for side cladding sheets. Our profile roofing sheets can be used for industrial, agricultural, commercial and domestic roofing and cladding projects. Profile roofing sheets can be used as single skin sheeting, over clad of an existing roof or part of a built-up insulated system.

Benefits of using 32/1000 Galvanised Box Profile Sheets:

Some of the many benefits include these sheets being economic with a robust profile and we can manufacture to specific lengths. They are also extremely lightweight as well as being fast and easy to fit and are independently tested to current CE EN 14782 requirements.

Specifications:
Application: Wall or Roof
External Finish: Galvanised
Internal Finish: Galvanised
External Face: Profiled 32/1000, 32mm profile height, 200mm pitch centres
Standard Width: 1000mm when lapped
Max Length: 7m
Minimum Pitch: 4 degrees
Gauge Thickness: 0.5mm
Weight: 4.9kg/m2

When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fasteners in lower part of profile.

Rooflights, fixings, trims and flashings complete the system, offering robust, cost effective sheet cladding



Galvanised Sheet Profile Galvanised Sheet Profile

PLEASE NOTE – Extra care should always be taken when handling metal sheets and flashings we advise using the correct type of Glove when handling or moving metal sheets and flashings. Gloves can be purchased on our website.

Permissable Loads:

Permissable downward (imposed) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.49 2.52 1.91 1.37 0.99 - - - - -
double 2.58 2 1.6 1.3 1.09 0.92 0.79 - - -
multi 3.15 2.45 1.96 1.6 1.34 1.13 0.86 - - -
0.70mm 6.22 single 5.77 4.17 2.74 1.9 1.37 1.02 0.78 - - -
double 4.12 3.18 2.53 2.06 1.72 1.45 1.2 0.94 0.75 -
multi 5.04 3.9 3.11 2.54 2.11 1.57 1.2 0.94 0.75 -



Permissable wind uplifts (negative) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.62 2.62 1.98 1.52 1.1 0.82 - - - -
double 2.52 1.95 1.56 1.27 1.06 0.89 0.77 - - -
multi 3.09 2.39 1.91 1.56 1.3 1.1 0.94 0.82 - -
0.70mm 6.22 single 5.58 4.03 3.05 2.14 1.54 1.15 0.88 - - -
double 4.2 3.24 2.59 2.11 1.76 1.48 1.27 1.1 0.96 0.8
multi 5.13 3.98 3.18 2.6 2.16 1.83 1.57 1.25 0.99 0.8
