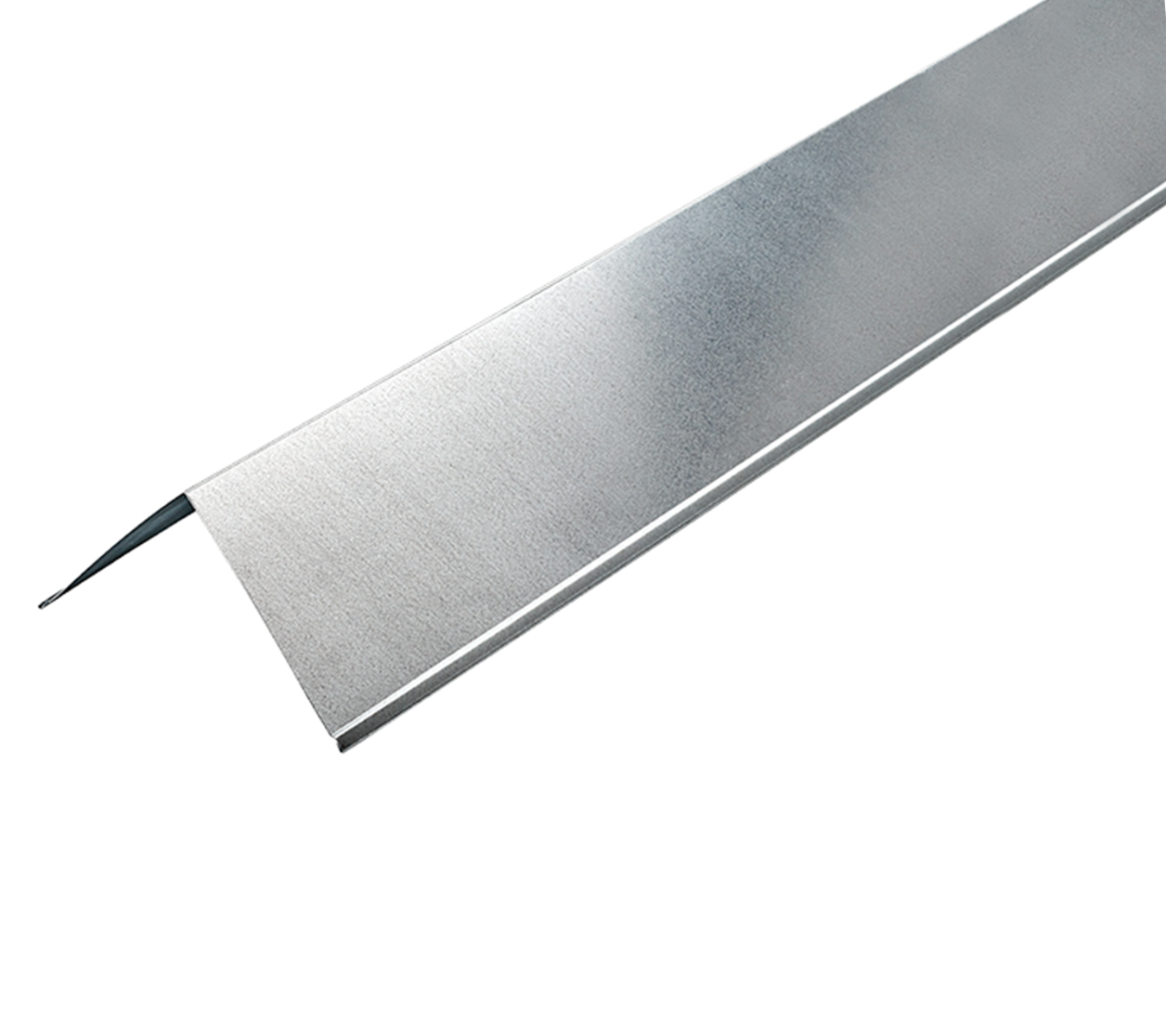

90º Barge Corner Flashings in Plain Galvanised Finish - 3m 200mm x 200mm
This galvanised steel corner barge perfectly completes metal roofing and cladding projects, tidying and sealing the edges of the sheets. With a galvanised finish to fit with a traditional aesthetic and performance, they create a structure that won’t let water and wind into the structure. Compatible with a number of our galvanised sheets, this flashing is designed to ease the installation and provide a more professional overall finish.
About Our 200mm x 200mm Corner Barge Flashings In Plain Galvanised Finish
These corner barges are manufactured in 3m lengths and used at the end of a run of metal sheets to seal it. This vital component offers weather-proofing, improved overall performance and visual appearance. Use these flashings alongside your galvanised metal roofing and cladding builds for a sleek end result.
Despite having a 90° internal angle, the flashings can be flexed within 10-15° to adapt to project needs and easy installation. The corner barges also feature a reinforced welt for a more secure edge and increased strength in general.
Benefits of 200mm x 200mm Corner Barge Flashings
- Provides a clean edge to exposed edges
- Can adapt to different roof pitches and angles
- Strengthed with the addition of a safety welt
- Galvanised finish to match galvanised sheeting
Compatible with our galvanised box profile and corrugated metal sheets, the barges have the versatility to fit within a number of installations. Want to learn more about the different metal coatings that we have to offer? Click here to see the full breakdown of our coating choices.
Flashing specifications
- Material: Steel
- Finish: Galvanised

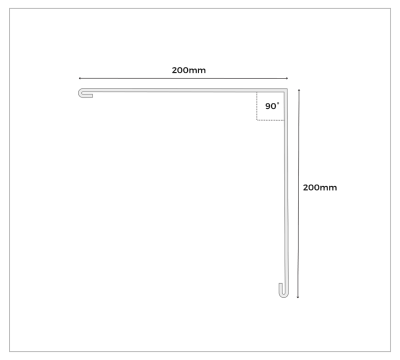

- Size: 200mm × 200mm × 3m
- Coverage: 195mm × 195mm (due to the welt)
- Internal angle: 90° (flexes approx 10-15° each way)
- Compatibility: 13/3 corrugated, 32/1000 box profile, 34/1000 box profile sheets
If you’re after a custom design, you can provide us with project dimensions needed, and we will do our best to accommodate. See our custom flashings service for more information.
Fixing Guidance
This corner barge flashing can be fixed using 22mm stitcher screws, providing a secure and neat finish along the metal’s edge. Where multiple lengths are needed, make sure that each flashing overlaps enough to maintain a continuous weather-tight seal.
We supply protective safety gloves with a Cut Level 5 rating, giving you reliable hand protection when handling flashings and roof sheets.
For full guidance on fixing flashings to your roofing or metal cladding system, see the relevant installation guide here.
Looking for an alternative?
For a polyester paint corner barge, see our 90° corner barge flashings with polyester paint finish - 3m 200mm x 200mm.
For a different size, see our 90° barge corner flashings in plain galvanised finish - 3m 200mm x 200mm.
Or browse our roofing department for flashings and more.
Please note: Nominal sizes refer to overall flashing dimensions. 200mm x 200mm flashings provide an actual coverage of approximately 195mm x 195mm, and 150mm x 150mm flashings provide an actual coverage of approximately 146mm x 146mm. Welt detail may vary depending on manufacture.
From £7.74 inc VAT
Order A Sample Pack!
Click here to view the online installation guide (1).
Download the datasheet for 90º Barge Corner Flashings in Plain Galvanised Finish - 3m 200mm x 200mm
