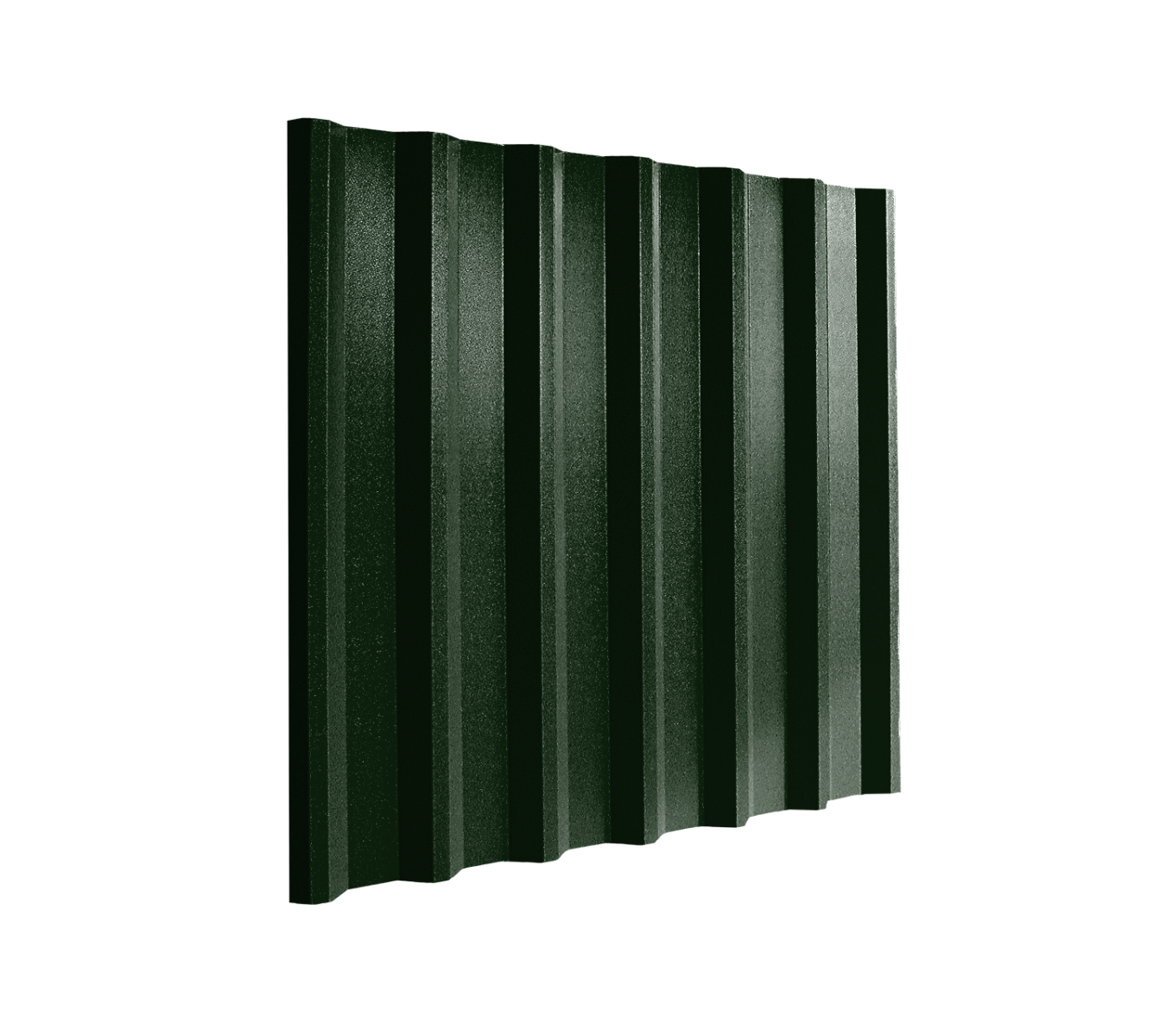

    34/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet

    34/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet

    From £13.44

    About this product

    Our 34/1000 box profile 0.5 thick roofing sheets, sometimes referred to as single skin box profile sheets that give robust profile roofing sheets strength. Incorporating 6 profiles of 200mm pitch across the sheet width and 32mm profile height, these are superb roofing sheets for home or commercial use. Some users prefer the appearance of these galvanised box profile sheets as it has lower and fewer profiles. It’s made from a galvanised steel strip and gives 1000mm actual width cover when lapped.

    Please note images may vary from actual item supplied due to lighting variations and camera angles

    6.6
    NATIONAL DELIVERY - checking...
    ANDOVER COLLECTION - checking...
    OKEHAMPTON COLLECTION - checking...
    Total Price: £13.44 Inc VAT
    View our product installation guide
    Add to Basket
    Nationwide Delivery
    Made In Uk

    34/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet

    34/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet
    34/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet 34/1000 Box Profile 0.5 Thick PVC Plastisol Coated Roof Sheet Cladco 34/1000 Box Profile Roofing Sheets, manufactured in the heart of Devon

    Online Roofing Calculator

    Use our calculator to work out how many roofing sheets you need for your project.

    Roofing Calculator
    You May Also Need
    1. Safety Gloves - Cut Level 5 Protective Gloves - Conforms to EN388 (4543)
      Safety Gloves - Cut Level 5 Protective Gloves - Conforms to EN388 (4543)
      From £7.14
    2. Vent 3 Pro Breathable Roofing Membrane by Cromar. 50m x 1m, Light Green
      Vent 3 Pro Breathable Roofing Membrane by Cromar. 50m x 1m, Light Green
      £84.60
    3. TEK screw socket driver tool
      TEK screw socket driver tool
      £7.20
    4. Screws to wood with a 19mm bonded washer (Pack of 100)
      Screws to wood with a 19mm bonded washer (Pack of 100)
      From £12.00
    5. 130º Ridge Flashings in PVC Plastisol Finish in 3m 200mm x 200mm
      130º Ridge Flashings in PVC Plastisol Finish in 3m 200mm x 200mm
      From £29.40
    6. 90º Corner Barge Flashings in PVC Plastisol finish - 3m 200mm x 200mm
      90º Corner Barge Flashings in PVC Plastisol finish - 3m 200mm x 200mm
      From £29.40
    7. HC19 19mm colour cap (Pack of 100)
      HC19 19mm colour cap (Pack of 100)
      From £3.60
    8. 22mm stitcher screws with a 16mm bonded washer (Pack of 100)
      22mm stitcher screws with a 16mm bonded washer (Pack of 100)
      £12.00
    9. Mastic lapping tape strip, 9mm x 1.5mm x 30m rolls grey
      Mastic lapping tape strip, 9mm x 1.5mm x 30m rolls grey
      £8.34
    10. Silicone elastic low modulus sealant 300ml cartridge clear
      Silicone elastic low modulus sealant 300ml cartridge clear
      £11.94
    Features

    Uses of Box Profile Roofing Sheets

    Most commonly seen on industrial, agricultural and commercial buildings, box profile sheets can be used for domestic buildings where required. Available as a single skin profile sheet, it can be used to build up an insulated system, to over clad an existing roof or on its own to provide a solid weatherproof covering on any building. Suitable for roof application of 4 degrees or higher, consider purchasing our profile roofing sheets.

    Benefits of Box Profile Roofing Sheets:

    Fast and easy to fit, these lightweight box profile steel roofing sheets are an economical way to cover your building. Available in a traditional range of colours and independently tested to current CE EN 14782 requirements, our box profile sheets will provide you with a long-lasting and low maintenance solution for years to come. Contact us for further information.

    Looking for our Tarpaulin Range?
    Our Tarpaulin Range includes Lightweight, Standard, or Heavy Weight Tarpaulins.

    Specifications:
    Application: Wall or Roof
    External Finish: PVC Plastisol Coated
    Internal Finish: Light grey Polyester
    External Face: Profiled 34/1000, 34mm profile height, 166mm pitch centres
    Standard Width: 1000mm when lapped
    Max Length: 7m in 0.5mm sheet thickness
    Minimum Pitch: 4 degrees
    Gauge Thickness: 0.5mm
    Weight: 6.6kg/m2

    When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fixings in lower part of profile.

    Rooflights, fixings, trims and flashings complete the system, offering robust, cost effective sheet cladding.



    PLEASE NOTE – Extra care should always be taken when handling metal sheets and flashings we advise using the correct type of Glove when handling or moving metal sheets and flashings. Gloves can be purchased on our website.

    Read More
    Permissable
    Loads
    Permissable Loads:

    Permissable downward (imposed) loads in kN/m2

    Sheet Thickness Weight kg/m2 Span Condition Span mm
    1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
    0.50mm 4.78 single 3.49 2.52 1.91 1.37 0.99 - - - - -
    double 2.58 2 1.6 1.3 1.09 0.92 0.79 - - -
    multi 3.15 2.45 1.96 1.6 1.34 1.13 0.86 - - -
    0.70mm 6.22 single 5.77 4.17 2.74 1.9 1.37 1.02 0.78 - - -
    double 4.12 3.18 2.53 2.06 1.72 1.45 1.2 0.94 0.75 -
    multi 5.04 3.9 3.11 2.54 2.11 1.57 1.2 0.94 0.75 -



    Permissable wind uplifts (negative) loads in kN/m2

    Sheet Thickness Weight kg/m2 Span Condition Span mm
    1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
    0.50mm 4.78 single 3.62 2.62 1.98 1.52 1.1 0.82 - - - -
    double 2.52 1.95 1.56 1.27 1.06 0.89 0.77 - - -
    multi 3.09 2.39 1.91 1.56 1.3 1.1 0.94 0.82 - -
    0.70mm 6.22 single 5.58 4.03 3.05 2.14 1.54 1.15 0.88 - - -
    double 4.2 3.24 2.59 2.11 1.76 1.48 1.27 1.1 0.96 0.8
    multi 5.13 3.98 3.18 2.6 2.16 1.83 1.57 1.25 0.99 0.8
