34/1000 Box Profile 0.7 Thick Galvanised Roof Sheet

£9.24
£9.24

/m

Inc VAT

In stock
SKU
cg7gar34

Please note images may vary from actual item supplied due to lighting variations and camera angles

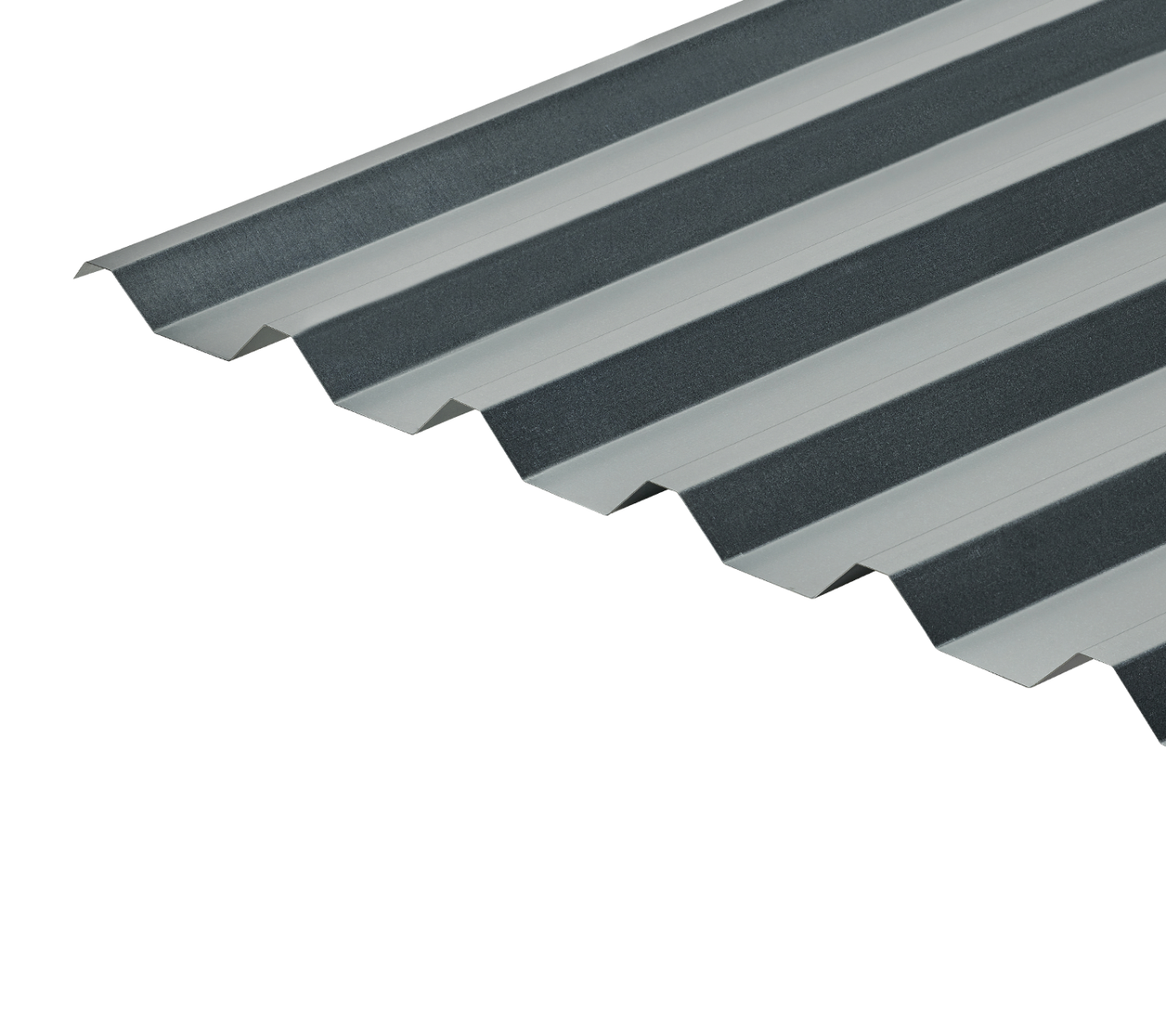

34/1000 box profile 0.7 thick galvanised roofing sheets each single skin sheet having 7 strong 166mm profiles across its width. With a profile height of 34mm and coverage of 1000mm when installed, these box profile sheets give you a simple yet strong way to cover your build. Each 34/1000 box profile sheet will give your roof a secure weatherproof lap from sheet to sheet.

Please note images may vary from actual item supplied due to lighting variations and camera angles


Loading...

Uses for 34/1000 Box Profile Sheets 0.7mm Galvanised Roofing Sheets:

Most commonly seen on industrial, agricultural and commercial buildings, our 34/1000 box profile sheets can also be used for domestic buildings where required. Available as a single skin sheet, it can be used to build up an insulated system, over clad an existing roof or on its own to provide a solid weatherproof covering on any building. It is also suitable for roof application of 4 degrees or higher.

Fast and easy to fit, this lightweight box profile 34/1000 sheets are our most cost-effective way to cover your building. Independently tested to current CE EN 14782 requirements, these 34/1000 box profile roof sheets will provide you with a long-lasting and low maintenance solution for many years to come.

Specifications:
Application: Wall or Roof
External Finish: Galvanised
External Face: Profiled 34/1000, 34mm profile height, 166mm pitch centres
Standard Width: 1000mm when lapped
Max Length: 9m in 0.7mm sheet thicknes
Minimum Pitch: 4 degrees
Gauge Thickness: 0.7mm
Weight:5.9kg/m2

When used in roof applications, construction can be safely undertaken down to a 4 degree pitch using conventional through sheet self drilling fixings in lower part of profile.

Rooflights, fixings, trims and flashings complete the system, offering robust, cost effective sheet cladding.



PLEASE NOTE – Extra care should always be taken when handling metal sheets and flashings we advise using the correct type of Glove when handling or moving metal sheets and flashings. Gloves can be purchased on our website.

Permissable Loads:

Permissable downward (imposed) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.49 2.52 1.91 1.37 0.99 - - - - -
double 2.58 2 1.6 1.3 1.09 0.92 0.79 - - -
multi 3.15 2.45 1.96 1.6 1.34 1.13 0.86 - - -
0.70mm 6.22 single 5.77 4.17 2.74 1.9 1.37 1.02 0.78 - - -
double 4.12 3.18 2.53 2.06 1.72 1.45 1.2 0.94 0.75 -
multi 5.04 3.9 3.11 2.54 2.11 1.57 1.2 0.94 0.75 -



Permissable wind uplifts (negative) loads in kN/m2

Sheet Thickness Weight kg/m2 Span Condition Span mm
1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
0.50mm 4.78 single 3.62 2.62 1.98 1.52 1.1 0.82 - - - -
double 2.52 1.95 1.56 1.27 1.06 0.89 0.77 - - -
multi 3.09 2.39 1.91 1.56 1.3 1.1 0.94 0.82 - -
0.70mm 6.22 single 5.58 4.03 3.05 2.14 1.54 1.15 0.88 - - -
double 4.2 3.24 2.59 2.11 1.76 1.48 1.27 1.1 0.96 0.8
multi 5.13 3.98 3.18 2.6 2.16 1.83 1.57 1.25 0.99 0.8
