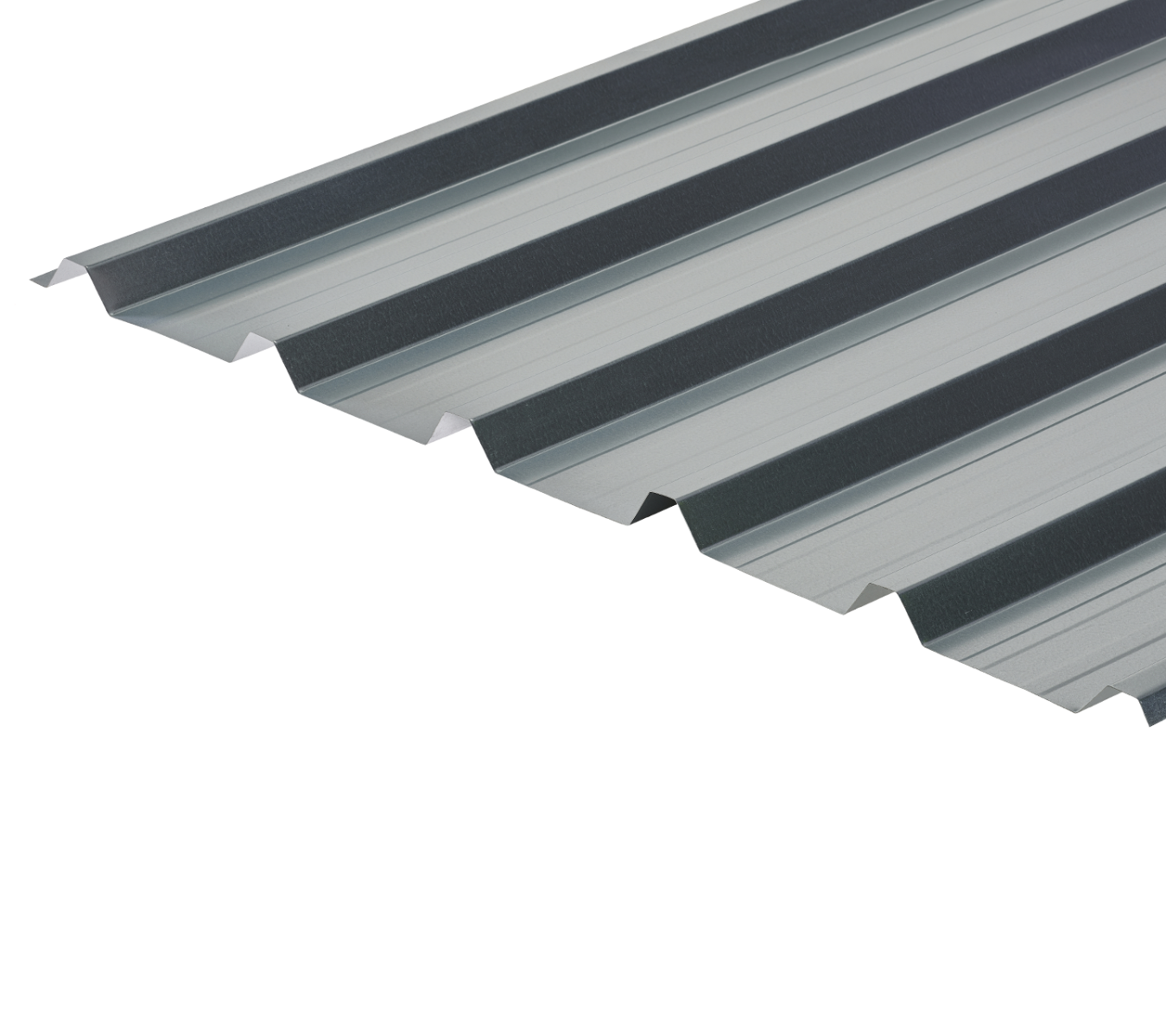

32/1000 Box Profile 0.7 Thick Galvanised Roof Sheets
Our 32/1000 box profile, 0.7 thick galvanised roof sheets, sometimes referred to as single skin box profile sheets, are one of our most robust roofing sheets.
Incorporating 6 profiles of 200mm pitch across the sheet width and 32mm profile height, these are superb sheets for home or commercial use. Of all our box profile sheets, these are preferred by some due to their low profile and superb galvanised steel finish. They're made from a galvanised steel strip and give 1000mm actual width cover when lapped. Galvanised finishes are often favoured for traditional projects where no colour finish is required.
Uses of 32/1000 Box Profile Galvanised Roof Sheets:
Our profile roofing sheets can be used for industrial, agricultural, commercial and domestic roofing and cladding projects. Profile roofing sheets can be used as single skin sheeting, over clad of an existing roof or part of a built-up insulated system.
Some of the many benefits include these sheets being economic with a robust profile and we can manufacture to specific lengths. They are also extremely lightweight as well as being fast and easy to fit and are independently tested to current CE EN 14782 requirements.
Cladco Roofing Sheets are manufactured using high-quality Galvanised steel, giving the Sheets additional protection against corrosion, the elements, stains and rust. Thanks to the material’s natural protective reactive properties which prevents the breakdown of the product.
Looking for Tarpaulins?
Browse our tarpaulin range for lightweight, standard, or heavy weight tarpaulins.

Order A Sample Pack!

Working out the total square meterage of your roof will require measuring the total width of the roof’s area as well as the distance from the eaves (the lowest point) to the apex (the highest point) of the roof. This should be undertaken carefully and safely.
We recommend taking these measurements from the inside of your building for safety purposes. Multiply the two measurements together to give the total square meterage of the roof.
For apex, or dual-sided, roofs, you will need to work out the square meterage of each side of the roof and add the numbers together for the total coverage.

Permissible downward (imposed) loads in kN/m2
Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
0.50mm | 4.78 | single | 3.49 | 2.52 | 1.91 | 1.37 | 0.99 | - | - | - | - | - |
double | 2.58 | 2 | 1.6 | 1.3 | 1.09 | 0.92 | 0.79 | - | - | - | ||
multi | 3.15 | 2.45 | 1.96 | 1.6 | 1.34 | 1.13 | 0.86 | - | - | - | ||
0.70mm | 6.22 | single | 5.77 | 4.17 | 2.74 | 1.9 | 1.37 | 1.02 | 0.78 | - | - | - |
double | 4.12 | 3.18 | 2.53 | 2.06 | 1.72 | 1.45 | 1.2 | 0.94 | 0.75 | - | ||
multi | 5.04 | 3.9 | 3.11 | 2.54 | 2.11 | 1.57 | 1.2 | 0.94 | 0.75 | - |
Permissible wind uplifts (negative) loads in kN/m2
Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
0.50mm | 4.78 | single | 3.62 | 2.62 | 1.98 | 1.52 | 1.1 | 0.82 | - | - | - | - |
double | 2.52 | 1.95 | 1.56 | 1.27 | 1.06 | 0.89 | 0.77 | - | - | - | ||
multi | 3.09 | 2.39 | 1.91 | 1.56 | 1.3 | 1.1 | 0.94 | 0.82 | - | - | ||
0.70mm | 6.22 | single | 5.58 | 4.03 | 3.05 | 2.14 | 1.54 | 1.15 | 0.88 | - | - | - |
double | 4.2 | 3.24 | 2.59 | 2.11 | 1.76 | 1.48 | 1.27 | 1.1 | 0.96 | 0.8 | ||
multi | 5.13 | 3.98 | 3.18 | 2.6 | 2.16 | 1.83 | 1.57 | 1.25 | 0.99 | 0.8 |
Download our printable installation guide.
