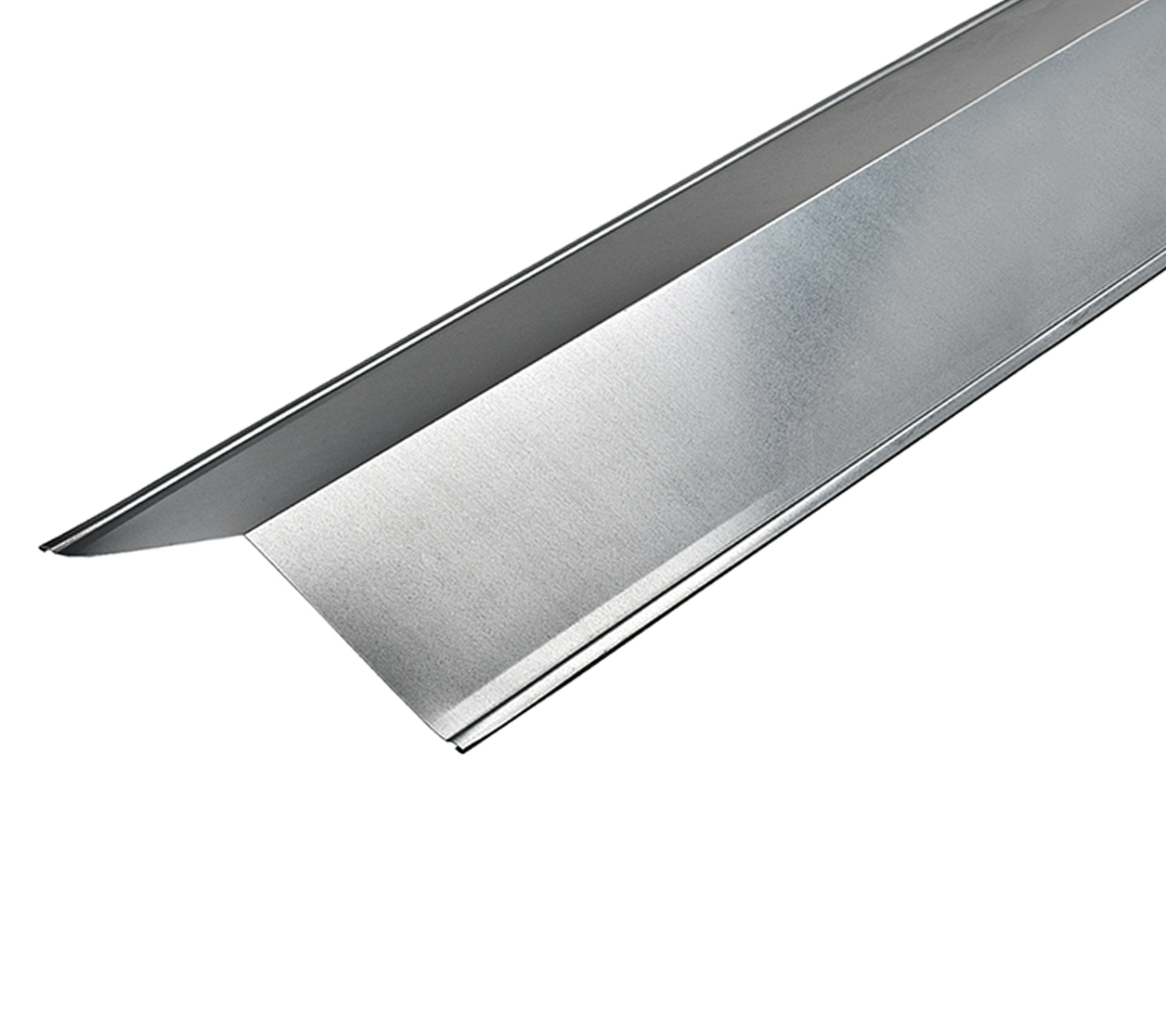

130º Ridge Flashings in Plain Galvanised Finish - 3m 200mm x 200mm
Inc VAT
Please note images may vary from actual item supplied due to lighting variations and camera angles
Our galvanised roofing sheets are available in a traditional 13/3 corrugated iron profile, which has been a popular choice among roofers for well over a century. Each sheet features 13 corrugations of 3 inch (or 76mm) round, with a width coverage of 3ft 3inch (or 990mm) when lapped upon installation. Here at Cladco Profiles, as galvanised corrugated roofing sheets supplier, we want to make sure you’re happy with your decisions, so for a free sample of the galvanised roofing sheets, click here. Please note, we advise using the 65mm Screw with Baz Washer with these sheets.
Please note images may vary from actual item supplied due to lighting variations and camera angles
Galvanised Roof Flashing to Improve Roofing Aesthetics
Including a safety welt, Cladco galvanised roof flashings have increased strength and come as a 3m length as standard. When it comes to fitting the ridge flashings, please remember to allow a minimum 100mm overlap from one ridge to the next. Sitting on top of the roofing sheets, they can be stitched together using s22 stitching screws to the below sheet which will ensure they are secured.
3m 200 x 200mm ridge flashings in galvanised finish are a necessary part of any profiled clad building and are available in different materials and colours. If you have any specific requirements, don’t hesitate to contact us directly and we can help to meet your needs.
Please note: The 200 x 200 flashings give a coverage of 192 x 192 due to the 8mm welt.
Permissable downward (imposed) loads in kN/m2
Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
0.50mm | 4.78 | single | 3.49 | 2.52 | 1.91 | 1.37 | 0.99 | - | - | - | - | - |
double | 2.58 | 2 | 1.6 | 1.3 | 1.09 | 0.92 | 0.79 | - | - | - | ||
multi | 3.15 | 2.45 | 1.96 | 1.6 | 1.34 | 1.13 | 0.86 | - | - | - | ||
0.70mm | 6.22 | single | 5.77 | 4.17 | 2.74 | 1.9 | 1.37 | 1.02 | 0.78 | - | - | - |
double | 4.12 | 3.18 | 2.53 | 2.06 | 1.72 | 1.45 | 1.2 | 0.94 | 0.75 | - | ||
multi | 5.04 | 3.9 | 3.11 | 2.54 | 2.11 | 1.57 | 1.2 | 0.94 | 0.75 | - |
Permissable wind uplifts (negative) loads in kN/m2
Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
0.50mm | 4.78 | single | 3.62 | 2.62 | 1.98 | 1.52 | 1.1 | 0.82 | - | - | - | - |
double | 2.52 | 1.95 | 1.56 | 1.27 | 1.06 | 0.89 | 0.77 | - | - | - | ||
multi | 3.09 | 2.39 | 1.91 | 1.56 | 1.3 | 1.1 | 0.94 | 0.82 | - | - | ||
0.70mm | 6.22 | single | 5.58 | 4.03 | 3.05 | 2.14 | 1.54 | 1.15 | 0.88 | - | - | - |
double | 4.2 | 3.24 | 2.59 | 2.11 | 1.76 | 1.48 | 1.27 | 1.1 | 0.96 | 0.8 | ||
multi | 5.13 | 3.98 | 3.18 | 2.6 | 2.16 | 1.83 | 1.57 | 1.25 | 0.99 | 0.8 |
Please click on the variable options on our checkout page.
Nationwide Delivery service available for all items with a range of options. The table below shows available options and timescales for delivery.
Useful Links: Delivery Policy | Collection Policy
Delivery
Nationwide Delivery estimated within 2-3 weeks (15 working days).
Collection
Goods can be collected from Okehampton, Devon. Please allow 5-7 working days prior to collection.
Safety Advice
Please note for collection or delivery suitable safety equirement is required for handling of materials.
