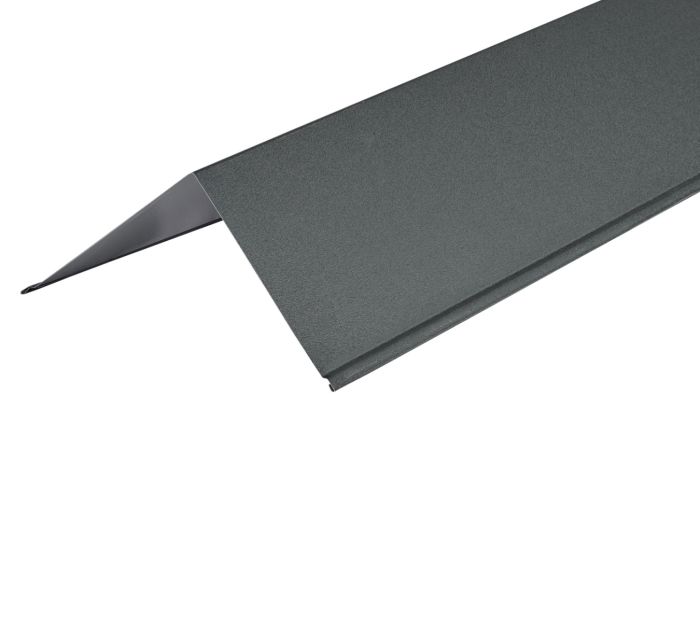

90º Corner Barge Flashing in GreenCoat® Pural - 200mm x 200mm
Enhance and protect the end of your roof with our 90° corner barge flashings. These flashings are designed to neatly trim and seal the edges of tile form roofing sheets while improving overall weather resistance and aesthetics. Available in a range of four colours to match the roofing sheets, these durable GreenCoat® Pural BT coated flashings offer a clean and professional look that elevates the longevity of your tiled project.
About Our 200mm x 200mm Corner Barge Flashings In GreenCoat® Pural Finish
Give your tile form roofing a polished and durable finishing edge with our 3m GreenCoat® Pural BT corner barges. These flashings are crafted to shield exposed roof edges while enhancing the overall look of the project.
Manufactured from multi-layered galvanised steel, each flashing is shaped to a 90º internal angle and has the flexibility to adjust by 10-15º, ensuring it sits neatly along the roof line. The robust safety welt reinforces the profile and gives added stability to the roof in all types of weather conditions.
Benefits of 200mm x 200mm Corner Barge Flashings
- Protects the edges of tile form roofing sheets
- Flexes to suit a variety of roof pitches
- Enhanced strength due to the 10mm safety welt
- Perfectly coordinate with tile form installation with the same four colour options
This GreenCoat® finished flashing is available in four colours to achieve a match to our tile form sheets and provide superb durability. This coating is resistant to scratching, scuffs, rust and corrosion over time. You can find out more information about this coating, as well as our other metal coating options, here.
Flashing specifications
- Material: Galvanised steel
- Finish: GreenCoat® Pural BT
- Size: 200mm Ă— 200mm Ă— 3m
- Coverage: 195mm Ă— 195mm (due to the welt)
- Internal angle: 90° (flexes approx 10-15° each way)
- Compatibility: 41/1000 tile form roofing sheets
We recommend that these flashings are used only with our tile form sheeting. For other metal roofing sheet installation, we have a range of corner barges with alternative coatings to match.
For unique dimensions or project-specific requirements, our custom-made flashings service allows you to submit measurements so we can create a tailored solution that suits your build.
Fixing Guidance
Each of these corner barge flashings can be fixed in place using our 22mm stitcher screws. These screws have a built-in washer for your convenience.
When installing more than one length, allow for a minimum overlap for consistent coverage and weather-tightness.
To support safe installation, we supply Cut Level 5 safety gloves that provide excellent cut resistance when working with steel flashings and sheet materials.
For step-by-step help on fitting these your tile form sheets, including the corresponding flashings in this installation guide.
Looking for an alternative?
For a PVC corner barge, see our 90° corner barge flashings with PVC plastisol finish - 3m 200mm x 200mm.
For a different size, see our corner barge flashings in GreenCoat® Pural - 150 x 150mm.
Or browse our roofing department for flashings and more.
Please note: Nominal sizes refer to overall flashing dimensions. 200mm x 200mm flashings provide an actual coverage of approximately 195mm x 195mm, and 150mm x 150mm flashings provide an actual coverage of approximately 146mm x 146mm. Welt detail may vary depending on manufacture.
From £7.97 inc VAT
Order A Sample Pack!
Click here to view the online installation guide (1).
Download the datasheet for 90º Corner Barge Flashing in GreenCoat® Pural - 200mm x 200mm
