Corner Barge Flashings in Polyester Paint Finish - 3m 150 x 150mm
Give your roof or metal cladding exterior a smart, finished look with our barge flashings, designed to tidy and protect the edges while boosting the overall look of your building. Ideal for preventing weather exposure at vulnerable roof points, these flashings offer a simple way to achieve a more polished and long‑lasting result. Plus, you can request samples to help you choose the perfect coating match for your project.

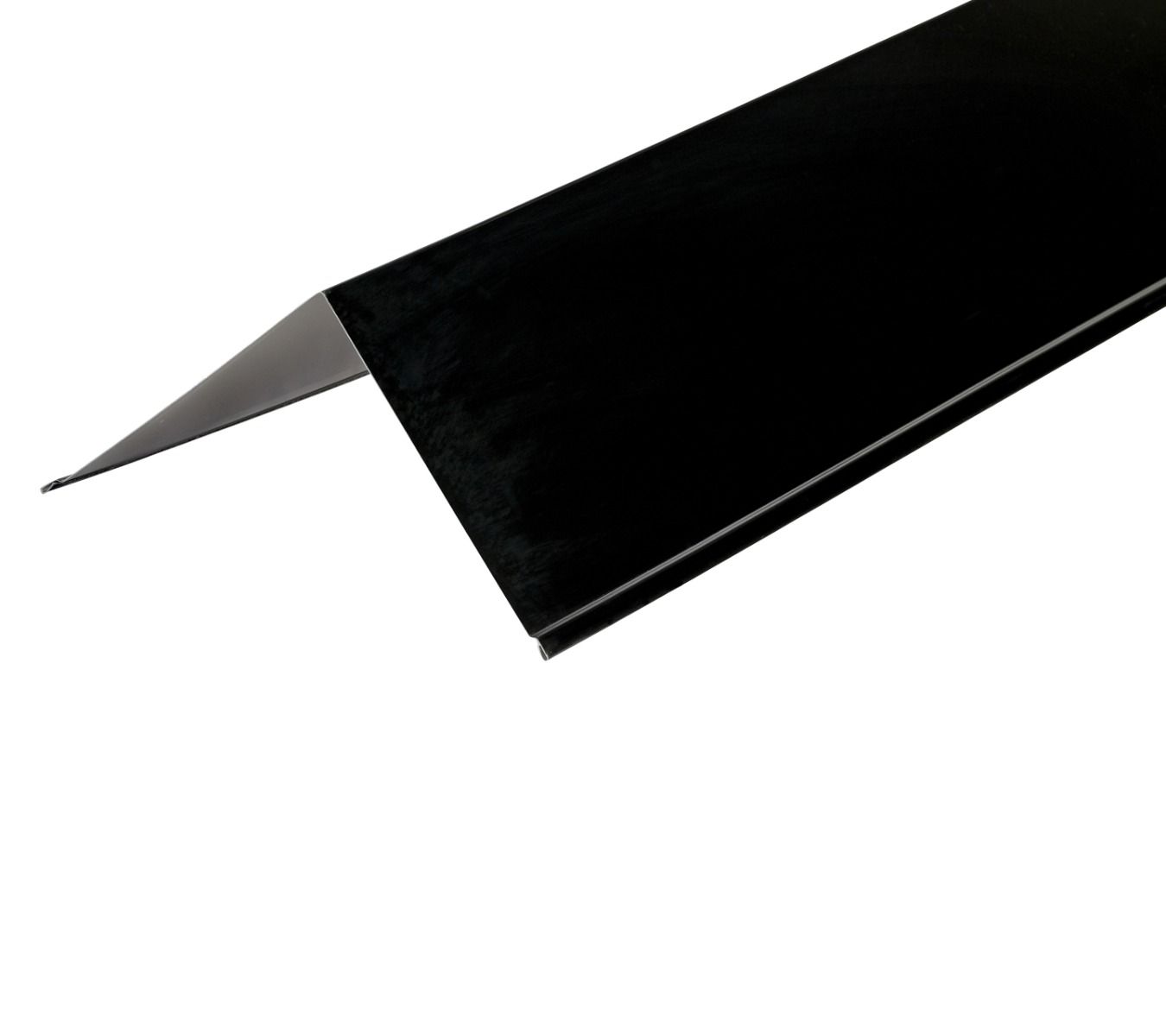

About Our 150mm x 150mm Corner Barge Flashings Polyester Paint Finish
Achieve a tidy, weather‑resistant trim on your roofing or cladding project with our 150mm × 150mm polyester‑painted corner barge flashings. Engineered to neatly cap the verge where sheeted roof or wall sections finish, these flashings enhance both protection and appearance by guarding exposed edges against wind, rain and general wear.
Each flashing is precision‑folded to a 90° internal angle but can flex by approximately 10-15° in either direction, giving you flexibility when working with your roof pitch or structures. The addition of a safety welt along the edges increases rigidity and creates a smooth, reinforced finish.
Benefits of 150mm x 150mm Corner Barge Flashings
- Provides a neat finish
- Flexible design adapts to slight variations in roof angle
- Safety welt offers long‑term stability
- Polyester‑painted finish colour‑matches our coated sheet range
- Supplied in a 3m length for efficient coverage
With a polyester‑painted surface, these flashings align perfectly with our matching coated sheets for a consistent look across your installation. This coating benefits from not only providing colour options, but also an extra layer of protection to the galvanised metal structure. To explore our coating information in more detail, please visit our choice of coatings page.
Please note: that juniper green polyester paint products may vary slightly in shade between batches. If you’re matching to an existing project, please give us a call on 01837 659901.
Flashing specifications
- Material: Galvanised steel
- Finish: Polyester paint
- Size: 150mm × 150mm × 3m
- Coverage: Approx. 146mm × 146mm (due to safety welt)
- Internal angle: 90° (flexes approx 10-15° each way)
- Compatibility: 13/3 corrugated, 32/1000 box profile, 34/1000 box profile sheets
These flashings are specifically designed to be used on our polyester paint corrugated and box profile sheets, for both cladding and roofing applications. Please get in touch with us if more bespoke flashings are needed for your project, and we will try our best to assist you.
Fixing Guidance
Secure the 150mm corner barge to the sheet beneath using 22mm stitcher screws, which feature a bonded washer to help create a weather‑tight seal.
For the best results, try to avoid damaging the safety welt during installation, and remove any protective film once installed, or earlier if the product is stored in bright sunlight or damp conditions.
To help keep your hands protected from sharp edges, we stock Cut Level 5 safety gloves that are ideal for handling roof sheets and flashings.
More detailed instructions are available in our installation guides.
Looking for an alternative?
For a PVC corner barge, see our 90° corner barge flashings in PVC plastisol finish - 3m 150 x 150mm.
For a different size, see our 90° corner barge flashings in polyester paint finish - 3m 200mm x 200mm.
Or browse our roofing department for flashings and more.
Please note: Nominal sizes refer to overall flashing dimensions. 200mm x 200mm flashings provide an actual coverage of approximately 195mm x 195mm, and 150mm x 150mm flashings provide an actual coverage of approximately 146mm x 146mm. Welt detail may vary depending on manufacture.
From £7.74 inc VAT
From £15.24 inc VAT
Order A Sample Pack!
Click here to view the online installation guide (1).
Download the datasheet for Corner Barge Flashings in Polyester Paint Finish - 3m 150 x 150mm
