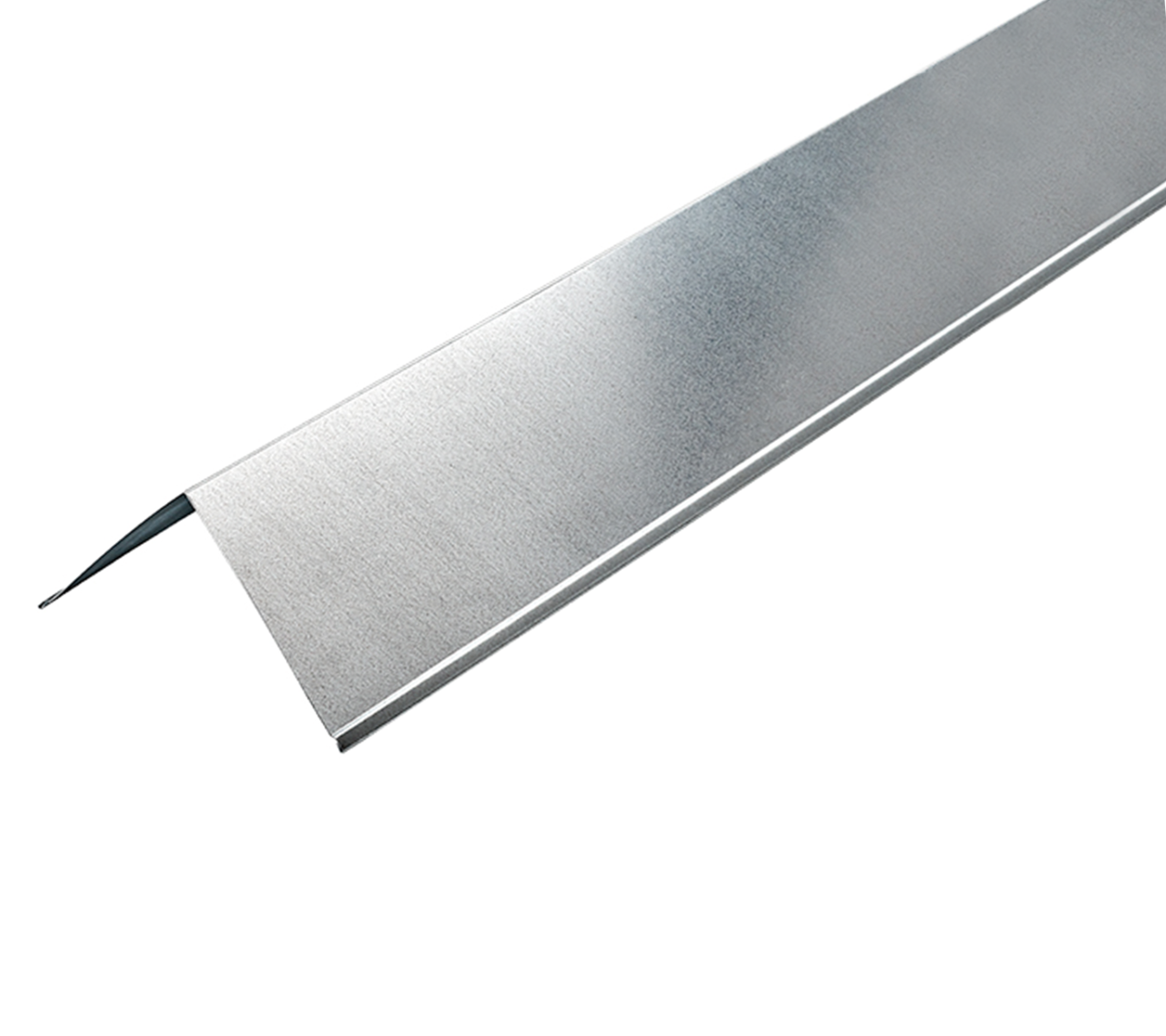

Corner Barge Flashings in Galvanised Finish - 3m 150 x 150mm
Corner barge flashings provide a simple way to tidy and protect the edge of your roofing or metal cladding installation by sealing the end of your sheet run. This helps keep your building weather resistant while giving it a clean, professional finish. Our galvanised steel corner barges are designed to complement your chosen galvanised sheets, making it easy to achieve the completed look you want on your box profile or corrugated project.
About Our 150mm x 150mm Corner Barge Flashings In Plain Galvanised Finish
Our 3m galvanised corner barge flashings offer a tidy and practical way to complete the edge of your metal roofing or cladding. This smaller 150mm size is ideal for customers who want a lighter, more subtle trim that still seals and protects exposed sheet ends while improving the overall finish of their project.
Each flashing is folded to a 90° internal angle and can flex by around 10 to 15 degrees, helping you achieve a close fit even where the roofline varies. A reinforced welt adds strength and supports a secure edge that remains durable in everyday weather.
Despite having a 90° internal angle, the flashings can be flexed within 10-15° to adapt to project needs and for a simple installation. The corner barges also feature a reinforced welt for a more secure edge and increased strength in general.
Benefits of 150mm x 150mm Corner Barge Flashings
- Creates a slim and neat edge to smaller sheeting projects
- Fits a range of roofing profiles and angles
- Reinforced welt for a strong trim
- Galvanised surface to pair seamlessly with galvanised sheets
If your project requires a different size or a specific profile, you can submit your measurements through our custom flashings page and we will create tailored options where possible.
Flashing specifications
- Material: Steel
- Finish: Galvanised
- Size: 150mm × 150mm × 3m
- Coverage: 146mm × 146mm (due to the welt)
- Internal angle: 90° (flexes approx 10-15° each way)
- Compatibility: 32/1000 box profile, 34/1000 box profile and 13/3 corrugated sheets
These flashings work with our galvanised corrugated and box profile sheets, making them suitable for many types of installations. If you would like to explore different coatings used across our products, you can find more detail on our coatings information page.
Fixing Guidance
Install these corner barge flashings using our 22mm stitcher screws for a secure finish. When joining several lengths, ensure that each piece overlaps enough to maintain a continuous weather‑tight seal.
If you need additional hand protection, our Cut Level 5 safety gloves are available and are well suited to handling flashings and roof sheets.
For full installation advice on fixing flashings to roofing and cladding sheets, please refer to the appropriate installation guide.
Looking for an alternative?
For a polyester paint corner barge, see our corner barge flashings with polyester paint finish - 3m 150 x 150mm
For a different size, see our 90° barge corner flashings in plain galvanised finish - 3m 200mm x 200mm
Or browse our roofing department for flashings and more.
Please note: Nominal sizes refer to overall flashing dimensions. 200mm x 200mm flashings provide an actual coverage of approximately 195mm x 195mm, and 150mm x 150mm flashings provide an actual coverage of approximately 146mm x 146mm. Welt detail may vary depending on manufacture.
Order A Sample Pack!
Click here to view the online installation guide (1).
Download the datasheet for Corner Barge Flashings in Galvanised Finish - 3m 150 x 150mm
