Plastic Lumber Subframe Fixings – Hex Head Screws (50 Pack)

£13.56
(3)

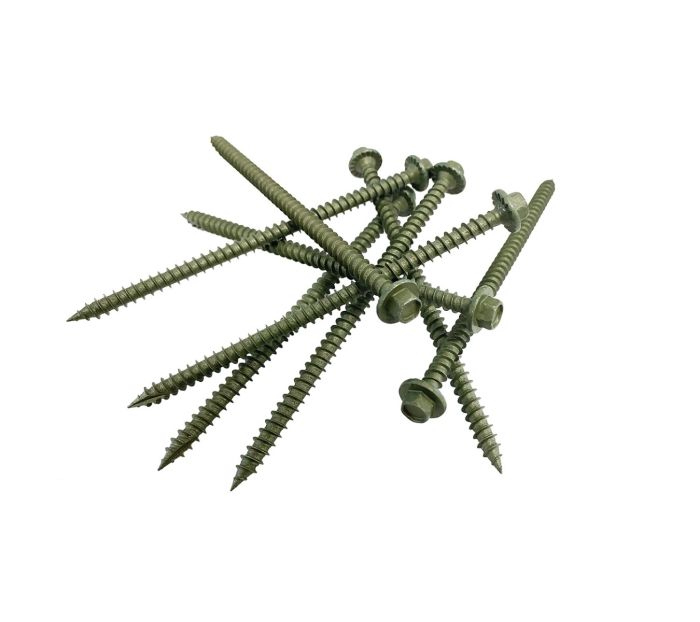

These 8mm hex-head screws, made from Ruspert®-coated steel, are perfect for recycled plastic joists. With a 6.3mm thread diameter for a strong, secure fix, choose 90mm for parallel joins or 125mm for noggins and corners. Supplied in boxes of 50.

SKU: FIXPVCSUBFRAME-CP
delivery NATIONAL DELIVERY - checking... from £0.00
Total Price: £13.56 inc VAT
Details

With a 6.3mm diameter thread, Cladco plastic lumber subframe fixings feature an 8mm hex head and are designed for joining subframe components in recycled plastic and composite systems. They’re suited to building and tying together joists and rails in typical decking subframe layouts, balancing strength, ease of installation and value.

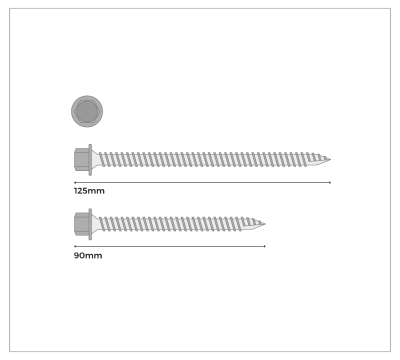

Use 90mm screws for smaller or parallel joins where materials sit side by side. Choose 125mm screws for noggins or perpendicular joins where extra reach is helpful. Both lengths are supplied in 50-pack boxes for simple handling on site and straightforward stock control.

Installation is familiar to most installers. Fit a suitable hex socket to a drill or impact driver and follow best practice on fixing frequency and spacing for your chosen subframe layout. The screws are fully threaded, providing consistent engagement along the fixing — a good match for plastic and composite subframe applications — without changing the standard installation approach.

These fixings are compatible with recycled plastic joists and posts and composite joists (structural and non-structural). For best results, store packs indoors in a dry environment and keep boxes sealed until use. Always plan your subframe layout first so you can estimate the quantity of fixings needed and avoid unnecessary returns.

Key features

  • 8mm hex head screws
  • Two lengths available: 90mm and 125mm
  • Fully threaded shaft
  • 6.3mm thread diameter
  • Ruspert®-coated steel in green
  • Suitable for recycled plastic and composite subframes
  • Straightforward installation with a hex socket driver
  • Supplied in 50-pack boxes for easy handling

Typical applications

  • Joining joists in parallel
  • Fixing noggins and right-angle intersections
  • General subframe assembly prior to deck board installation
Read more Read less
Customers Also Viewed Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Recycled Plastic Joist, 50mm x 100mm x 3.6m length, Black

£43.48 inc VAT

Recycled Plastic Joist, 50mm x 125mm x 3m length, Black

£42.80 inc VAT

Recycled Plastic Joist, 50mm x 150mm x 3m length, Black

£54.77 inc VAT

Recycled Plastic Decking Post, 100mm x 100mm x 3m length

£74.98 inc VAT

4m Composite Joists/Batten

£11.88 inc VAT

4m Structural Composite 100x50mm Joist

£40.00 inc VAT

Samples plus minus

Order A Sample Pack!

The best way to choose your preferred colour is with our Sample Packs. Order Sample Packs
Specifications plus minus
Weight
1.30kg
Technical Information plus minus

pdf Download the datasheet for Plastic Lumber Subframe Fixings – Hex Head Screws (50 Pack)

Technical Image 1 Technical Image 2
Delivery plus minus
Type When? Cost?
National Delivery Orders under £1,000 Est. 5 working days*
Roofing items 7-10 working days*
£192.00
Orders over £1,000 Est. 5 working days*
Roofing items 7-10 working days*
£96.00
Orders over £1,500 Est. 5 working days*
Roofing items 7-10 working days*
FREE
Scotland Delivery Postcodes: PA, PH, DD, AB, IV, & KW Est. 15 working days*
Roofing items 7-10 working days*
£360.00

Millboard Delivery Orders under £2,000 Est. 5 working days* £192.00
Orders over £2,000 Est. 5 working days* FREE

Parcelforce Standard (Small Parcels) 3-5 working days* £8.50
Parcelforce Standard (Large Parcels) 3-5 working days* £30.00

Sample Packs via Courier 5 working days* FREE

*Please allow for public holidays and weekends (non-delivery days)

Collection plus minus

Some of our products are available for collection from our warehouses in Okehampton (Devon) and Andover (Hampshire) - This option will show at checkout, when available.

Standard collection lead time is 3-5 working days, this may vary depending on the product. If you would like to collect your order after 2 hours, please choose this option at checkout.

Please note that collections are only available from Monday-Friday, 08:00 - 17:00 & Saturday, 08:00 - 12:30 (Note: this IS the cut off time for collections, despite our closing time of 13:00)

Please Note The Following Prior To Collection:

No Cutting On Site

PPE/Hi-Vis Must be Worn At All Times

AlL Visitors Must Report to Reception


Vehicles we can and cannot load

Cladco Profiles will only load flatbed lorries and flatbed trailers for insurance purposes. If the appropriate vehicle is not available, two people would be required for a collection.

Cladco Profiles will NOT load any vehicles with roof racks, horse boxes, cattle lorries or fixed-sided trailers. Cladco Profiles has the right to refuse loading a vehicle for any reason.

Before arranging a collection, please read our Customer Collection Notice below.

Okehampton

Our Okehampton HQ and Warehouses (Devon)

Hampshire

Our Andover Warehouses (Hampshire)

Read more

Customer Collection Notice

For those customers wishing to collect materials, we ask you report to the office first in order to be seen by a member of the sales team. Your goods will then be picked and brought to your vehicle.

Please note that during busy periods you may experience a wait while our yard staff serve other customers or are loading/unloading other vehicles.

We respectfully draw your attention to the following points:

  • It is the ultimately the responsibility of the customer to load his/her vehicle and to ensure the goods are safely/ securely strapped down.
  • Our staff will be happy to assist you load your goods onto appropriate vehicles by way of fork lift trucks. Our staff will not handball any goods into enclose vehicles. The loading of the vehicle is carried out entirely at the customers own risk. We will not be held liable for any damage that may occur to your vehicle or goods collected from our premises during the transport of said goods.
  • It is the responsibility of the customer to ensure both their vehicle and the goods are safe when they leave our premises.
  • We can advise the approximate weight of materials prior to you arriving so that you can be sure your vehicle is capable of carrying the intended load. Please ensure that you bring appropriate ropes, straps or other securing materials as we are unable to provide you with any upon arrival.
  • We strongly recommend you bring suitable protection materials to prevent your ropes/straps etc. be damaged by these edges. We recommend that you use good quality protective gloves when handling materials.
Read less
Frequently Asked Questions
These screws are designed specifically for installing plastic lumber subframes as part of decking systems. They securely join joists together, either side-by-side (parallel joins) or at right angles (perpendicular joins).
90mm screws are best for smaller or parallel joins. 125mm screws are recommended for noggins or perpendicular joins where extra length is required.
Yes, they are suitable for use with other plastic subframe systems, including Millboard. The fully threaded design gives them better grip in plastic joists than half-thread alternatives.
No, these packs do not include a driver bit. They are hex head screws and can be installed using a standard hex socket driver.
These screws are Ruspert®-coated for corrosion resistance. They are not stainless steel, but the coating provides reliable durability for outdoor use.
