110° Lean-To Flashing and Z Bar Kit for Standing Seam - 3m
Complete your lean-to roof with Cladco 110° lean-to flashing and Z bar kits for standing seam. Each kit contains two flashings (top plate and bottom plate) and a Z bar piece, to seal and secure the adjoining lean-to roof to the wall. Made from sustainable GreenCoat® Pural BT steel, providing durability and a long life.
More About 110° Lean-To Flashing and Z Bar Kits
When undergoing a lean-to roofing design using standing seam sheeting, be sure to complete your project with our lean-to and Z bar kits.
Manufactured from high-quality steel coated with GreenCoat® Pural BT, a coating that is optimised to resist weathering, corrosion and UV damage, lean-to flashings for standing seam are long-lasting and durable.

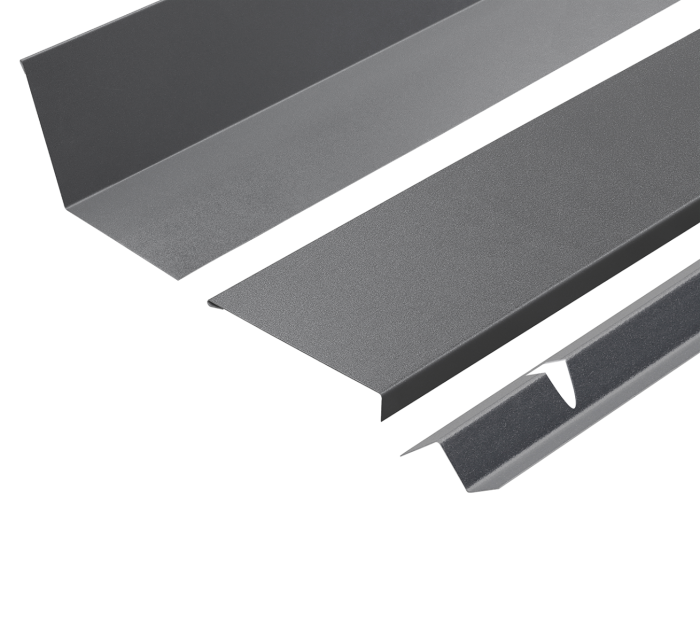

Each kit contains two separate lean-to flashing pieces (bottom and top plates) as well as a Z bar (notched). Used in combination with hemming tools, your lean-to standing seam roof can be secured to walls or an adjoining structure.
Although Cladco’s standing seam system is designed for a clean, secure fit without visible fixings, some installers choose to add low-profile screws for extra reassurance. Our colour-matched 6.3×20mm fixings are ideal in areas prone to strong winds, such as coastal or open rural locations. Available in Ruspert® or stainless steel for added durability.
Lean-to bottom plates measure 150mm x 150mm with an internal angle of 110°. Top plates measure 150mm x 15mm and are installed into a wall for a sealed finish.
For a full list of tools required, please refer to our standing seam installation guide.
Looking for sheets to match these flashings?
See our standing seam roof sheets.
Please note: Images and colours above are used for illustration purposes only. The actual item may vary slightly from the image displayed.
Order A Sample Pack!
Download our printable installation guide.
Download the datasheet for 110° Lean-To Flashing and Z Bar Kit for Standing Seam - 3m
