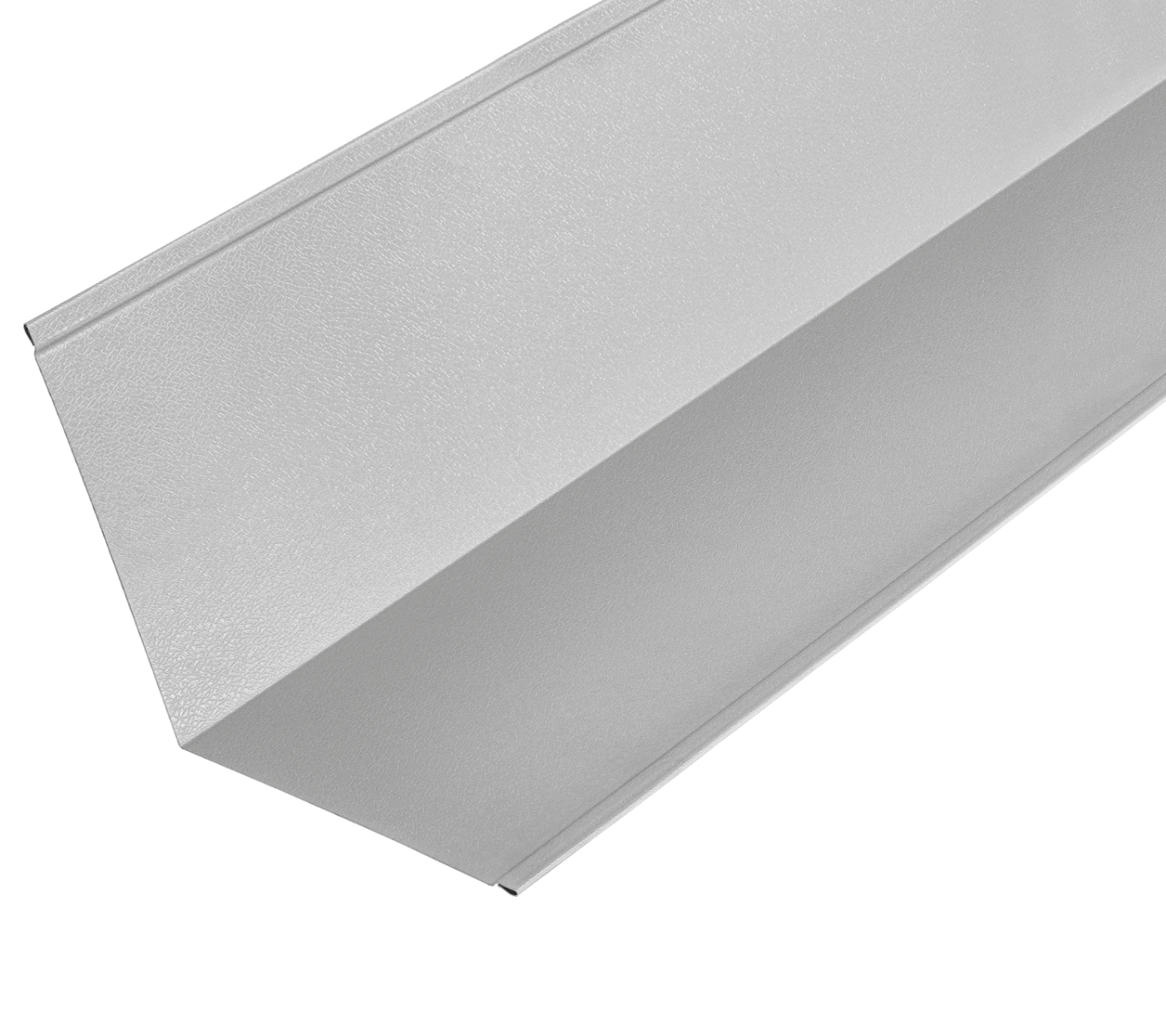

110° Abutment Flashings in PVC Plastisol Finish - 3m 200mm x 200mm
Achieve a clean, weather‑resistant junction where your roof meets a wall or internal angle with Cladco PVC plastisol-coated abutment flashings. Made from galvanised steel and folded to a 110° internal angle with 10–15° flex, each piece includes a safety welt and a tough leather‑grain coating. Compatible with 13/3 corrugated, 32/1000 and 34/1000 box profile sheets, and available in colours such as goosewing grey and black.
About Our 110° PVC Plastisol Abutment Flashings
When you need a durable, long‑lasting flashing for lean‑to roofs or wall junctions, these abutment flashings offer a reliable way to finish internal angles neatly and professionally. Designed to flex 10–15° during installation, they sit cleanly to the structure and provide a strong, weather‑resistant detail for a wide range of profiled roofing projects.
Manufactured from multi‑layered, galvanised steel and coated with a PVC plastisol leather‑grain finish, these flashings offer a tough, highly scratch‑resistant surface. In normal environments, the PVC plastisol coating can provide a service life in excess of 40 years. The coating is available in 11 colours, including anthracite and merlin grey, to complement the look of your profiled sheets.
Benefits of 110° PVC Plastisol Abutment Flashings
- Provides a neat, weather‑resistant junction where roofs meet walls
- Tough PVC plastisol, leather‑grain finish
- Galvanised steel construction for reliable durability
- Safety welt increases rigidity and edge strength
- Compatible with various profiled roof sheets
These flashings are recommended for use with Cladco 13/3 corrugated, 32/1000 box profile and 34/1000 box profile roofing sheets, and are also available in polyester paint, GreenCoat® Pural BT and plain galvanised finishes. To learn more about our range of flashings, click here.
A safety welt increases rigidity and improves the appearance of the final installation. The nominal 200mm x 200mm profile provides approximately 195mm x 195mm of installed coverage due to the welt.
Specifications
- Material: Galvanised steel
- Finish: PVC plastisol, leather‑grain
- Length: 3m
- Nominal size: 200mm x 200mm
- Coverage: 195mm x 195mm (due to safety welt)
- Internal angle: 110° (flexes 10–15° during installation)
- Compatibility: 13/3 corrugated, 32/1000 box profile, 34/1000 box profile
Please note: that nominal sizes refer to overall flashing dimensions. 200mm x 200mm flashings provide an actual coverage of approximately 195mm x 195mm, and 150mm x 150mm flashings provide an actual coverage of approximately 146mm x 146mm. Welt detail may vary depending on manufacture.
Fixing Guidance
Allow a 200mm overlap between one abutment flashing and the next, and secure each piece to the sheets with 22mm stitcher screws to create a weather‑tight joint. A safety welt aids safe handling, though protective gloves are still recommended for working with metal edges.
For a clear explanation of overlaps, fasteners and best‑practice installation steps, please refer to our installation guides before starting your project. If you require any more information, be sure to explore our Help & Advice page.
Looking for an alternative?
For a GreenCoat® Pural BT abutment flashing, see our 110° abutment flashings in GreenCoat® Pural finish.
For a bespoke flashing, see our custom flashings.
Or browse our roofing department for flashings and more.
For large commercial projects, high volumes or specialist requirements, our team is happy to help — please call 01837 659901 for expert advice.
