75° Mono Ridge Flashing and Backer Plate Kit for Standing Seam - 3m
Designed for single‑pitch standing seam roofs, this 75° mono ridge flashing kit includes a 3m mono ridge flashing, a matching backer plate and a notched Z‑bar for secure, accurate installation. Manufactured from A1‑rated SSAB Nordic steel with a durable GreenCoat® Pural BT coating, the kit provides reliable ridge protection, long‑lasting weather resistance and a clean, streamlined finish for modern mono‑pitch roofing.
About Our 75° Mono Ridge Flashing and Backer Plate Kit for Standing Seam
Cladco mono ridge flashing kits provide all the key components needed to finish the ridge of a single‑pitch (mono) standing seam roof. Supplied as a coordinated set, each kit includes a 3m mono ridge flashing, a matching backer plate, and a notched Z‑bar designed to sit neatly over the standing seam ribs along the ridge.
Manufactured from high‑quality SSAB Nordic steel and coated in GreenCoat® Pural BT, the system delivers excellent durability, corrosion resistance and colour consistency across the roofline. With a 75° internal angle, the mono ridge flashing and backer plate are shaped to suit typical mono‑pitch designs, providing a clean, sealed finish where the roof meets its upper edge.
Benefits of 75° Mono Ridge Flashing and Backer Plate Kits
- Complete ridge solution for single‑pitch standing seam roofs
- 75° internal angle suitable for typical mono‑pitch designs
- Robust GreenCoat® Pural BT coating for long‑term weather resistance
- Notched Z‑bar fits securely over standing seam ribs for accurate placement
- Designed for a clean, concealed‑fix finish with minimal visible fixings
Specifications
- Length: 3m
- Thickness: 0.7mm
- Internal angle: 75°
- Components: Mono ridge flashing, backer plate, notched Z‑bar
- Material: SSAB Nordic steel
- Finish: GreenCoat® Pural BT
Fixing Guidance

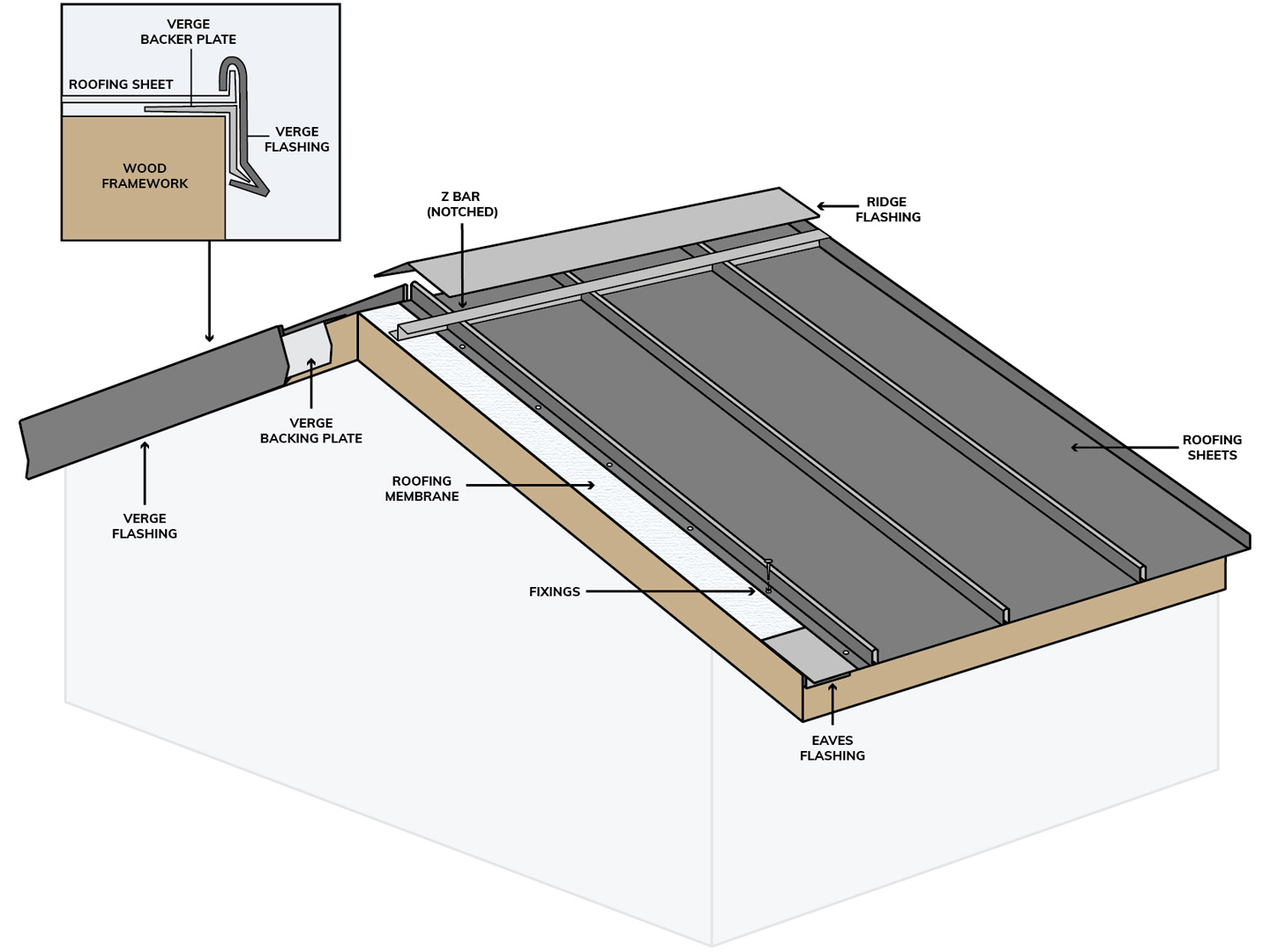

Installation begins by positioning the notched Z‑bar along the ridge line, allowing each notch to slot over the standing seam ribs. The backer plate is then set in place to support the mono ridge flashing, which is finally clamped onto the Z‑bar using an eaves closing tool. If you require a clamping tool, see our standing seam roofing tool kit.
The standing seam system is designed to achieve a streamlined, concealed‑fix look. However, where additional security is preferred, particularly in exposed, coastal or high‑wind locations, installers may choose to reinforce the assembly with 6.3x20mm colour‑matched stainless steel or Ruspert®‑coated stitcher screws.
For recommended tools, component positioning and detailed installation steps, please refer to our Help & Advice page, where you will find our standing seam installation guide and more. Although the fixings won’t be fully hidden, their colour‑matched coating allows them to sit subtly within the finished roof.
Looking for an alternative?
For the individual components featured in this kit, see our 3m mono ridge flashing, backer plate, and notched Z‑bar.
For bespoke flasings, see our custom flashings.
Or browse our roofing department for flashings and more.
For large commercial projects, high volumes or specialist requirements, please call 01837 659901
Order A Sample Pack!
Download our printable installation guide (1).
Download the datasheet for 75° Mono Ridge Flashing and Backer Plate Kit for Standing Seam - 3m
