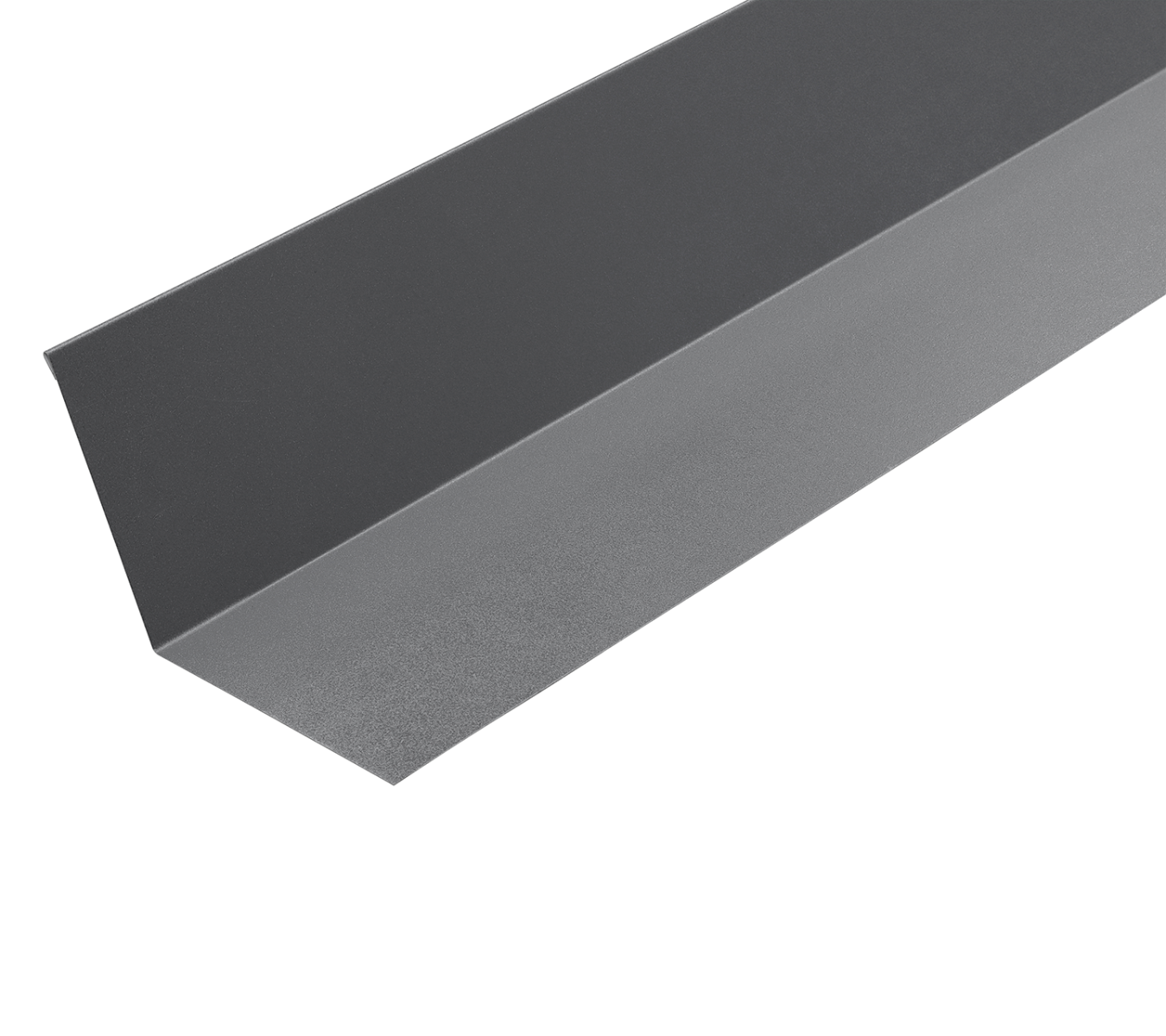

110° Lean-To Bottom Plate Flashing for Standing Seam - 3m
If you're building a lean‑to roof using standing seam sheeting, this lean‑to bottom plate flashing helps you create a weather‑resistant connection between the roof and adjoining wall. Designed to work with Z‑bars and top plates, it supports a clean, professional finish while helping protect your structure from the elements. Made from durable GreenCoat® Pural BT coated steel, it offers long‑lasting resistance to corrosion, UV exposure and changing weather conditions.
About Our 110° Lean-To Bottom Plate Flashing for Standing Seam
Lean‑to bottom plate flashings play an important role in completing a secure and polished standing seam lean‑to roof. Positioned beneath the top plate flashing and set over notched Z‑bars, they help form a strong connection between your roofing sheets and the adjoining wall, ensuring the lower edge of the roof is neatly sealed and protected.
Each bottom plate measures 150mm x 150mm and is formed with a 110° internal angle for a precise fit within typical lean‑to designs.
Manufactured from SSAB Nordic steel and finished with the eco‑friendly GreenCoat® Pural BT coating, the flashing offers a tough, long‑lasting surface that resists corrosion, UV fading and general weather wear. This coating is created using a bio‑based technology derived from Swedish rapeseed oil, offering a more sustainable option without compromising durability.
Benefits of 110° Lean-To Bottom Plate Flashing for Standing Seam
- Supports a clean and weather‑tight finish for lean‑to standing seam roofs
- Designed to work seamlessly with top plates and notched Z‑bars
- Manufactured from durable SSAB Nordic steel for long-term strength
- Eco‑focused GreenCoat® Pural BT coating offers UV and corrosion resistance
- Provides a neat and reliable connection between roof and adjoining structure
Specifications
- Length: 3m
- Dimensions: 150mm x 150mm
- Thickness: 0.7mm
- Internal angle: 110°
- Material: SSAB Nordic steel
- Coating: GreenCoat® Pural BT
Fixing Guidance
Install the bottom plate flashing over the notched Z‑bars, with the top plate flashing fitted above to achieve a sealed lean‑to connection. The standing seam system is designed to be fixed using Z‑bars and hemming techniques, although low‑profile, colour‑matched low‑profile screws (stainless steel or Ruspert®) may be added in exposed or wind‑prone settings for additional security. Although these screws remain on show, their matched colouring ensures they don’t disrupt the overall aesthetic.
If you require specialist tools for your standing seam installation, why not take a look at our standing seam roofing tool kit?
For clear installation steps and guidance on the tools required, consult the standing seam installation guide and the Help & Advice page.
Looking for an alternative?
For complete lean‑to kits, see our 110° lean‑to flashing and Z‑bar kit.
For bespoke flashings, see our custom flashings page.
Or browse our roofing department for flashings and more.
For large orders or specialist support, call 01837 659901 to speak with our friendly team.
Order A Sample Pack!
Download our printable installation guide (1).
Download the datasheet for 110° Lean-To Bottom Plate Flashing for Standing Seam - 3m
