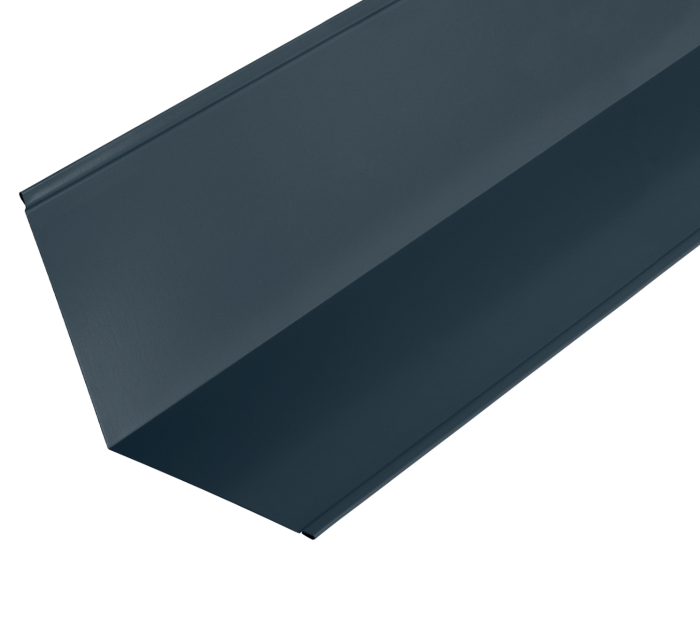

110° Abutment Flashings in Polyester Paint Finish - 3m 200mm x 200mm
Achieve a clean, weather‑resistant finish where your roof meets a wall or internal angle with Cladco 3m polyester paint abutment flashings. Manufactured from galvanised steel and folded to a 110° internal angle with 10–15° flex, each piece includes a 5mm safety welt and provides a durable, smooth‑coated finish. Compatible with 13/3 corrugated, 32/1000 and 34/1000 box profile sheets.
About Our 110° Polyester Painted Abutment Flashings
Cladco 110° abutment flashings provide a neat solution for finishing the adjoining edge of lean‑to buildings and other structures with an internal angle. Each flashing is precision‑folded to a 110° internal angle, with 10–15° flex to accommodate site conditions.
Produced from multi‑layered, galvanised steel and coated with a smooth polyester paint finish, the flashings are designed for long‑lasting performance. In typical environments, the polyester paint coating can last 20 years or more and offers moderate resistance to scratching and handling.
These flashings are recommended for use with Cladco 13/3 corrugated, 32/1000 box profile and 34/1000 box profile roofing sheets, and are also available in various finishes to suit any project.
Benefits of 110° Polyester Painted Abutment Flashings
- Creates a neat, weather‑resistant junction where roofs meet walls
- Smooth polyester painted finish
- Made from galvanised steel for long‑lasting strength
- Safety welt increases rigidity
- Recommended for 13/3 corrugated, 32/1000 and 34/1000 box profile sheets
A 5mm safety welt is included to aid safe handling and enhance the overall appearance. While each flashing measures 200mm x 200mm, the safety welt means the installed coverage is 195mm x 195mm.
Please note: that juniper green polyester sheets and flashings may show slight colour variances between products.
Specifications
- Material: Galvanised steel
- Finish: Smooth polyester paint (five colours available)
- Length: 3m
- Nominal Size: 200mm x 200mm
- Coverage: 195mm x 195mm (due to safety welt)
- Internal angle: 110° (flexes 10–15° during installation)
- Compatibility: 13/3 corrugated, 32/1000 box profile, 34/1000 box profile
Please note: that nominal sizes refer to overall flashing dimensions. 200mm x 200mm flashings provide an actual coverage of approximately 195mm x 195mm, and 150mm x 150mm flashings provide an actual coverage of approximately 146mm x 146mm. Welt detail may vary depending on manufacture.
Fixing Guidance
Allow a 200mm overlap between one abutment flashing and the next, and secure each piece to the sheets with 22mm stitcher screws to create a weather‑tight joint.
To help keep your hands protected from sharp edges, we stock Cut Level 5 safety gloves that are ideal for handling roof sheets and flashings.
Polyester paint flashings are supplied with a clear protective film; remove this after installation, or sooner if stored in direct sunlight or wet weather.
For a clear explanation of overlaps, fasteners and best‑practice installation steps, please refer to our installation guides before starting your project.
Looking for an alternative?
For a PVC plastisol abutment flashing, see our 110° abutment flashings in PVC plastisol.
For a bespoke flashing, see our custom flashings.
Or browse our roofing department for flashings and more.
For large commercial projects, high volumes or specialist requirements, our team is happy to help, so please call 01837 659901 for expert advice.
Order A Sample Pack!
Click here to view the online installation guide (1).
Download the datasheet for 110° Abutment Flashings in Polyester Paint Finish - 3m 200mm x 200mm
