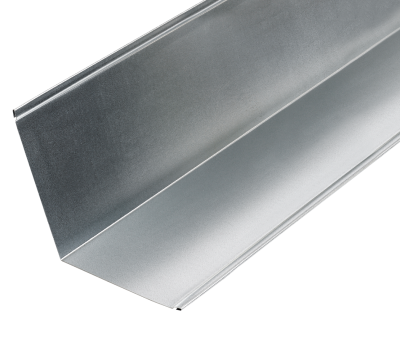

110° Abutment Flashings in Galvanised Finish - 3m 200mm x 200mm
For a simple, low‑maintenance way to finish the junction where a lean‑to roof meets a wall or internal angle, these 3m galvanised abutment flashings offer a clean, functional edge detail. Folded to a 110° internal angle with 10–15° flex, each flashing is made from galvanised steel, includes a safety welt and suits 13/3 corrugated, 32/1000 and 34/1000 box profile sheets.
About Our 110° Galvanised Abutment Flashings
If you’re looking for a straightforward flashing to create an effective internal junction on a lean‑to or similar structure, these 110° galvanised abutment flashings offer a practical, durable solution. Each piece is folded to a 110° internal angle and can flex 10–15° during installation, helping it settle cleanly to the roof or wall connection.
Manufactured from multi‑layered galvanised steel coils, this plain galvanised finish provides a rust‑resistant, metallic appearance that matches Cladco galvanised roofing sheets. The material offers long‑term resilience and suits agricultural, industrial or functional projects where a plain, low‑maintenance finish is preferred.
Benefits of 110° Galvanised Abutment Flashings
- Creates a clean, weather‑resistant junction at internal angles
- Plain galvanised finish for a traditional, low‑maintenance look
- Galvanised steel construction for strong, long‑lasting durability
- Safety welt improves rigidity and handling
- Recommended for 13/3 corrugated, 32/1000 and 34/1000 box profile sheets
These flashings are recommended for use with Cladco 13/3 corrugated, 32/1000 box profile and 34/1000 box profile roofing sheets, and are also available in PVC plastisol, polyester paint and GreenCoat® Pural BT coatings.
Specifications
- Material: Galvanised steel
- Finish: Plain galvanised
- Length: 3m
- Nominal size: 200mm x 200mm
- Coverage: 195mm x 195mm (due to safety welt)
- Internal angle: 110° (flexes 10–15° during installation)
- Compatibility: 13/3 corrugated, 32/1000 box profile, 34/1000 box profile
Please note: that the nominal sizes refer to overall flashing dimensions. 200mm x 200mm flashings provide an actual coverage of approximately 195mm x 195mm, and 150mm x 150mm flashings provide an actual coverage of approximately 146mm x 146mm. Welt detail may vary depending on manufacture.
Fixing Guidance
Allow a 200mm overlap between one abutment flashing and the next, and secure each piece to the sheets below using 22mm stitcher screws. The safety welt adds strength and handling support, though we recommend wearing cut‑resistant gloves, such as our Cut Level 5 protective gloves, when working with metal edges.
For guidance on overlaps, fixings and best‑practice installation methods, please refer to our installation guides before starting your project.
Looking for an alternative?
For a polyester painted abutment flashing, see our 110° polyester paint abutment flashings.
For bespoke shapes, see our custom flashings.
Or browse our roofing department for flashings and more.
For large commercial projects or specialist requirements, call our friendly Sales Team on 01837 659901 for expert advice.
