3m Z Bar Flashing Support in PVC Plastisol Finish (35 x 33 x 35mm)
If you need secure support for your barge flashings, this 3m PVC plastisol‑coated Z-bar flashing support provides a strong, reliable fixing point for 32/1000 and 34/1000 box profile roofs. With a 35mm × 33mm × 35mm profile and a durable leather‑grain plastisol finish in colours such as anthracite and olive green, it helps deliver a neat, professional roof edge.
About Our Z-Bar Flashings in PVC Plastisol Finish
When your project requires a dependable way to fix barge flashings securely, this PVC plastisol‑coated Z-bar support gives you the strong, stable mounting point you need. Formed to 35mm × 33mm × 35mm, the Z-bar sits beneath the barge flashing to create firm support and a smart, accurate roofline detail.
Made from high-quality steel with a PVC plastisol leather‑grain finish, it offers reliable durability, corrosion resistance and consistent colour matching alongside our PVC plastisol sheets and flashing range. The Z-bar is designed for use with 34/1000 box profile sheets fitted with 150mm × 150mm barge flashings, and also suits 32/1000 box profile roofs with barge flashings of any size. It can also be used on insulated panels where extra rigidity is required.
Available in the full PVC plastisol range, including options such as merlin grey and goosewing grey, it helps you achieve a coordinated finish across the roof.
Benefits of PVC Plastisol Z-Bar Flashings
- Provides strong support for barge flashings
- PVC plastisol finish offers long-term durability
- Colour matched for a consistent roofline
- Strong steel profile for lasting rigidity
- Suitable for box profiles and insulated panels
Specifications
- Material: Galvanised steel
- Finish: PVC plastisol (leather‑grain)
- Profile size: 35mm × 33mm × 35mm
- Length: 3m
- Compatibility: 34/1000 box profile roofs with 150mm × 150mm barge flashings; 32/1000 box profile roofs with barge flashings of any size; insulated composite panels
Fixing Guidance

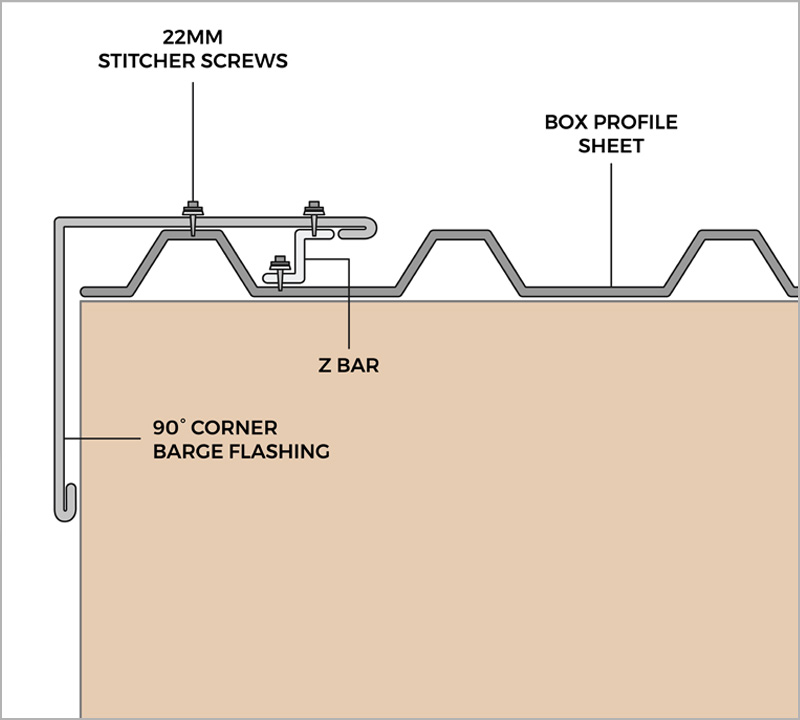

Install the Z-bar by stitching the bottom flange directly into the roof sheet, creating a secure base for your barge flashing. Once fixed, attach the barge flashing to the top flange of the Z-bar to achieve a straight, stable edge. Sheets and flashings with sharp edges should be handled with care, and suitable cut resistant gloves (EN388:2016) are recommended during installation.
For clear steps and illustrated guidance, please refer to our roofing installation guides before starting your project.
Looking for an alternative?
For a polyester painted Z-bar flashing, see our 3m Z-bar flashing support in a polyester paint finish.
For a bespoke flashing, see our custom flashings.
Or browse our roofing department for flashings and more.
For large commercial projects, high volumes or specialist requirements, our team is happy to help, so please call 01837 659901 for expert advice. For more information, visit our Contact Us page.
Order A Sample Pack!
Click here to view the online installation guide (1).
Download the datasheet for 3m Z Bar Flashing Support in PVC Plastisol Finish (35 x 33 x 35mm)
