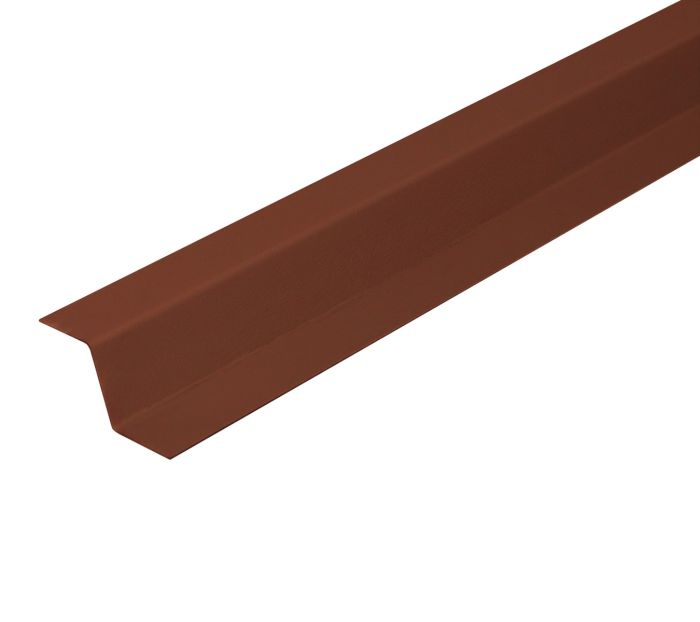

3m Z Bar Flashing Support in PVC Plastisol Finish (35 x 33 x 35mm)
A 3m Z Bar flashing support (35 x 33 x 35mm) with a hard-wearing PVC plastisol coating. Designed to provide reliable fixing and support for barge flashings on 34/1000 and 32/1000 box profile sheeting, ensuring a secure fit and professional finish across a full colour range.
Cladco 3m Z Bar Flashing Supports are designed to provide strength and reliability when fixing barge flashings to metal roofing sheets. Manufactured from high-quality steel with a PVC Plastisol coating, each section offers durability, corrosion resistance and colour consistency to match your existing sheeting and flashings.
The Z Bar measures 35 x 33 x 35mm and should be installed by stitching the bottom flange into the roof sheet before securing the barge flashing to the top flange. This creates a firm, stable base and ensures a neat, professional roofline finish.
Z Bars are suitable for use with:
- 34/1000 box profile sheeting with 150 x 150mm barge flashings
- 32/1000 box profile sheeting with any size barge flashing
- Insulated composite panels where additional support is required
Available in a full range of Cladco PVC plastisol colours, including anthracite, merlin grey, goosewing grey, olive green and more, these Z Bars complement your roof system for a coordinated look.
For the best results, pair with matching Cladco barge flashings and box profile sheets.
Edges may be sharp. When handling, it is recommended to wear suitable gloves with a high cut resistance rating (EN388:2016) to ensure safety.
