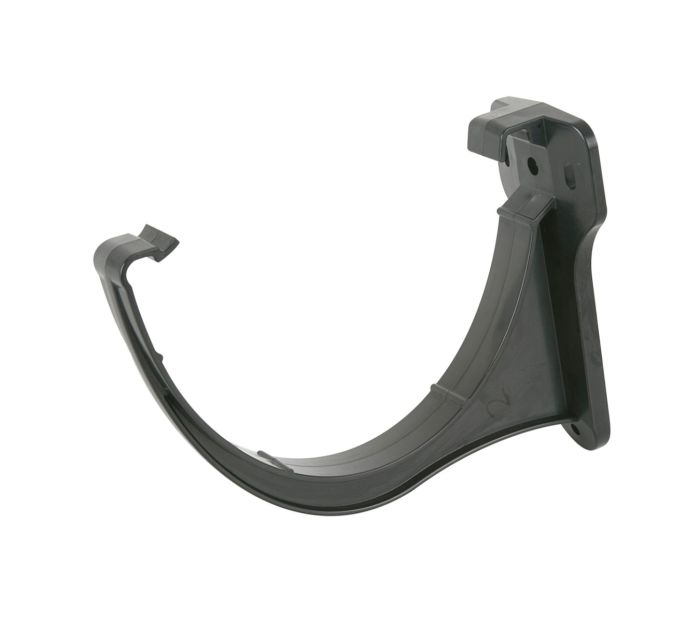

Brett Martin 170mm Deepstyle PVC Multi-Fix Fascia Bracket in Black
This black 170mm fascia bracket is designed to support Deepstyle guttering as part of Brett Martin’s high-capacity rainwater system. Fixed directly to the fascia board, it provides a secure, reliable connection that complements the full range of Deepstyle fittings and components.
Built for strength and stability, the Brett Martin Deepstyle 170mm multi-fix fascia bracket is designed to secure your guttering in place and support the weight of high-capacity rainwater systems. Its profile aligns seamlessly with Brett Martin's Deepstyle gutters for a tight, dependable fit in demanding environments.
Manufactured from durable, weather-resistant PVC, the bracket fixes directly to the fascia board and integrates with the full Deepstyle system. Suitable for large domestic roofs, commercial buildings, and agricultural structures, it ensures reliable long-term performance.
Finished in a versatile UV-stabilised gloss black, the bracket complements both traditional and modern exteriors while resisting fading over time.
Tested to BS EN 1462 (Load Class H) for structural integrity and load-bearing capacity, this bracket provides essential support for high-performance rainwater systems. Its PVC construction is certified to BS EN 607, demonstrating proven resistance to weathering and long-term degradation.
Bracket specifications
- Profile: 170mm Deepstyle
- Material: PVC
- Colour: Black (Gloss)
- Standard: BS EN 607 and BS EN 1462 (Load Class H)
- Guarantee: 10 years
Installation tips
To ensure proper support, install brackets at maximum centres of 900mm. For steep roofs (over 35° pitch) or areas with heavy snow loading, reduce spacing to 600mm.
To begin the installation, fix the first fascia bracket at the furthest point from the running outlet, allowing for the required fall. Position it no more than 150mm from the end of the fascia board. Stretch a taut line between this bracket and the running outlet to establish a straight and consistent gutter line. Install fascia brackets at equal intervals, using a union bracket wherever two gutter lengths join.
For added support on angles, position brackets within 100mm of the corner.
Fix all fittings using corrosion resistant 25 x 5mm round head screws. You should never use nails to fix these gutter fixings under any circumstances.
Handling
This Brett Martin rainwater system is manufactured from lightweight PVC, making it easy to carry and install. However, care should still be taken when handling gutter lengths and fittings to prevent knocks or scratches that could affect both performance and finish.
Storage
To keep your Brett Martin guttering and fittings in top condition, store all items in a clean, dry environment away from direct sunlight or impact risk. Gutter and pipe sections should be laid flat on a smooth, level surface to prevent warping or distortion.
If outdoor storage is unavoidable, leave items in their original packaging until they’re ready to be installed, as this helps protect the surface and maintain their appearance.
Maintenance
Regular maintenance of your rainwater gutter systems is essential, with cleaning recommended at least once a year. In areas prone to significant windborne debris, such as falling leaves, more frequent inspections and clearing may be necessary.
The high-gloss finish of the guttering helps resist dirt build-up, but when external cleaning is required, a mild detergent solution is suitable for removing surface grime without damaging the finish.
